Plot Centrality Stability Results — plot_net_stability • cograph

Visualizes the centrality stability analysis from a net_stability object. Shows how centrality correlations drop as cases are removed.

Usage

plot_net_stability(x, ...)

# S3 method for class 'net_stability'
plot(x, ...)

Arguments

x: A net_stability object (from Nestimate::centrality_stability).
...: Additional graphical arguments.

Value

Invisibly returns x.

Examples

set.seed(1)
seqs <- data.frame(T1 = sample(c("A","B","C"), 30, replace = TRUE),
                   T2 = sample(c("A","B","C"), 30, replace = TRUE))
net <- Nestimate::build_network(seqs, method = "tna")
cs <- Nestimate::centrality_stability(net, iter = 10)

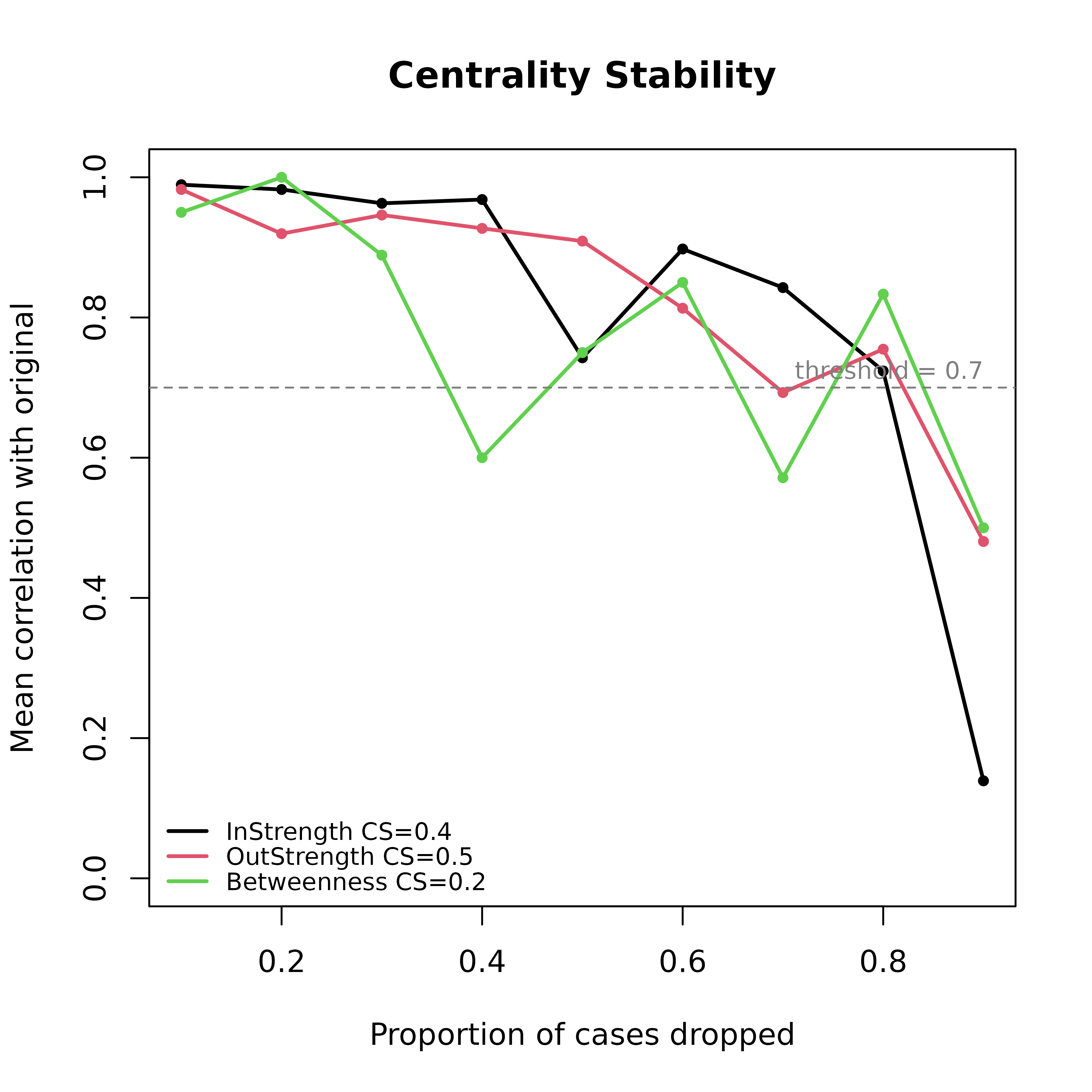

plot_net_stability(cs)
