Simplicial Complex Visualization — plot

Visualize higher-order pathways as smooth blobs overlaid on a network layout. Source nodes are blue, target nodes are red.

Usage

plot_simplicial(
  x = NULL,
  pathways = NULL,
  method = "hon",
  max_pathways = 10L,
  pathway_index = NULL,
  anomaly = c("all", "over", "under"),
  layout = "circle",
  labels = NULL,
  node_color = "#4A7FB5",
  target_color = "#E8734A",
  ring_color = "#F5A623",
  node_size = 22,
  label_size = 5,
  label_color = "#e8e8e8",
  target_label_color = NULL,
  label_halo = TRUE,
  label_halo_color = NULL,
  label_halo_width = 0.035,
  label_halo_alpha = 0.6,
  blob_alpha = 0.25,
  blob_colors = NULL,
  blob_linetype = NULL,
  blob_linewidth = 0.7,
  blob_line_alpha = 0.8,
  shadow = TRUE,
  title = NULL,
  dismantled = FALSE,
  ncol = NULL,
  ordered = NULL,
  direction = NULL,
  direction_cues = c("shade", "ring", "arrows"),
  node_radius = NULL,
  legend = NULL,
  ...
)

Arguments

x: A network object: tna, netobject, matrix, igraph, cograph_network, net_hon, net_hypa, or simplicial_complex (an unordered complex — see ordered). When x is a tna or netobject with sequence data and pathways is NULL, higher-order pathways are built automatically using the method parameter.
pathways: Character vector of pathway strings, a list of character vectors, a net_hon / net_hypa object, or any data.frame with a path column (e.g., the output of Nestimate::mogen_transitions()). If a data.frame with a path column is passed as x and pathways is NULL, it is auto-promoted to pathways and the state set is derived from the path strings — plot_simplicial(mgt) works directly. String separators: "A B -> C", "A -> B -> C", "A, B, C", "A - B - C", "A B C". Last state is the target. When a data.frame is passed and a count column is present, rows are sorted by count descending before max_pathways is applied. When NULL and x is a model with sequence data, pathways are built automatically.
method: Pathway source when auto-building from a tna/netobject: "hon" (default, higher-order network), "hypa" (anomalous paths via hypergeometric null), or "rules" (association-rule itemsets via Nestimate::association_rules; rules are rendered as single-colored blobs because itemsets are undirected).
max_pathways: Maximum number of pathways to display. HON pathways are ranked by count, HYPA by anomaly ratio. NULL shows all. Default 10.
pathway_index: Optional positive integer vector selecting ranked pathways after extraction and ranking, before max_pathways is applied. For example, 2 plots the second-ranked pathway and 2:4 plots pathways ranked second through fourth.
anomaly: HYPA anomaly type to display when plotting a net_hypa object or auto-building HYPA pathways via method = "hypa". One of "all", "over", or "under". Default "all". Ignored (with a warning) for non-HYPA inputs such as net_hon, net_association_rules, net_link_prediction, character pathway vectors, or method = "hon" / "rules", which have no anomaly concept.
layout: "circle" (default) or a coordinate matrix.
labels: Display labels. NULL uses state names.
node_color: Source node fill color.
target_color: Target node fill color.
ring_color: Donut ring color.
node_size: Node point size.
label_size: Label text size.
label_color: Label text color (default "#e8e8e8", very light grey). Light grey reads on both white and dark fills when the auto-contrast halo is enabled (it is by default). Applied to both source and target labels unless target_label_color overrides for targets.
target_label_color: Target-node label color. NULL (default) reuses label_color.
label_halo: Logical. Draw a contrasting halo behind each label so it stays readable on any fill — node disc, blob, or the white canvas. Default TRUE. The halo is the only reliable way to keep, e.g., white labels legible when node_color is also light.
label_halo_color: Halo color. NULL (default) auto-picks black or white based on the luminance of label_color, so a white label gets a dark halo and vice versa.
label_halo_width: Halo thickness in plot units. Default 0.035; raise for chunkier outlines, lower for subtler ones, or set to 0 to disable without touching label_halo.
label_halo_alpha: Halo opacity (0–1). Default 0.6 reads as a soft glow rather than a hard outline; raise toward 1 for sharper contrast on very busy backgrounds.
blob_alpha: Blob fill transparency.
blob_colors: Blob fill colors (recycled).
blob_linetype: Blob border line styles (recycled).
blob_linewidth: Blob border line width.
blob_line_alpha: Blob border line transparency.
shadow: Draw soft drop shadows?
title: Plot title.
dismantled: If TRUE, one panel per pathway arranged in a grid layout.
ncol: Number of columns in the grid when dismantled = TRUE. Default NULL auto-selects based on the number of pathways.
ordered: Is each higher-order structure a PATH or a SET? TRUE treats the last state of every pathway as its target (HON / HYPA / MOGen). FALSE treats every member as co-equal: there is no target, so no node is painted with target_color, no direction cue is drawn, and the panel title is a member list rather than an arrow. NULL (default) reads it off the input — net_association_rules and simplicial_complex are sets, everything else is a path.
direction: Draw the traversal inside each per-pathway panel: a light-to-dark core ramp along the path, a ring whose gold peaks on the side facing the next state, and an arrowhead just outside each node aimed at its successor. NULL (default) enables them exactly when dismantled = TRUE. A simplex is a set of vertices, so the combined overlay — where blobs overlap and a state can sit in several pathways at once — cannot express direction; direction = TRUE with dismantled = FALSE is an error rather than a silent no-op. Also forced off when the caller has collapsed the source/target two-tone (undirected input such as net_association_rules).
direction_cues: Which cues to draw, any of "shade", "ring", "arrows". Default all three.
node_radius: Node core radius in data units, used only on the directed path (rings and cores become polygons there so the ring gradient and the arrow offset are expressible; geom_point() sizes are device millimeters and cannot answer either). NULL (default) scales it to the panel extent so the nodes keep the size they have today.
legend: Draw the in-figure legend strip beneath a dismantled grid. Default TRUE when direction is on.
...: Additional arguments passed to Nestimate::build_hon() or Nestimate::build_hypa() when auto-building.

Value

Invisibly, a ggplot object for the combined overlay. With dismantled = TRUE the arranged grid is returned instead: a gtable when gridExtra is available, otherwise a plain list of the per-pathway ggplot objects. NULL is returned when there is nothing to draw (no pathways could be extracted). Called for the side effect of drawing.

Details

Supports direct use with tna and netobject models: when x has sequence data, HON or HYPA pathways are built automatically (requires the Nestimate package). Pathways can also be passed as net_hon or net_hypa objects, with labels auto-translated when x is a tna/netobject.

Examples

set.seed(1)
mat <- matrix(runif(16), 4, 4,
              dimnames = list(LETTERS[1:4], LETTERS[1:4]))
diag(mat) <- 0

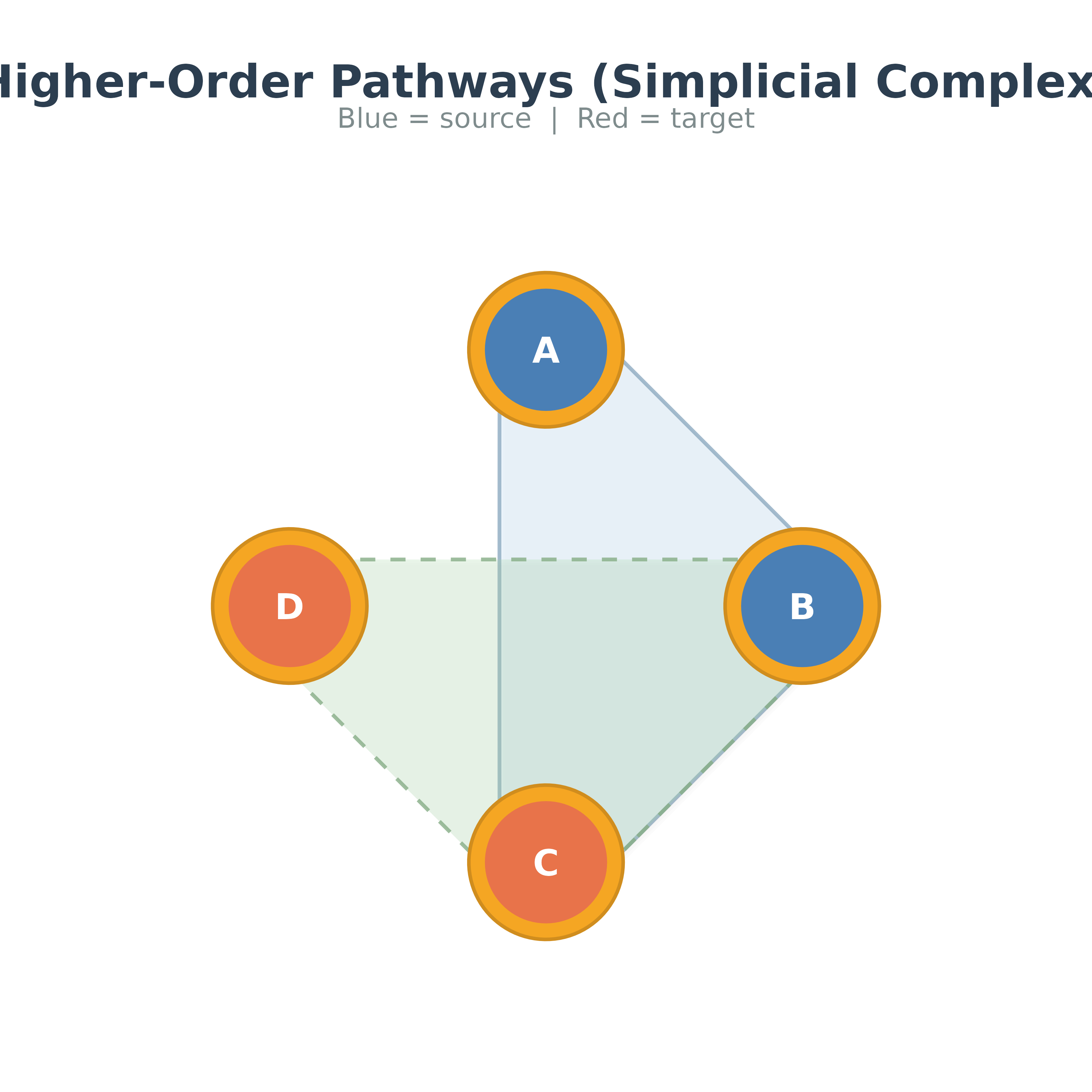

plot_simplicial(mat, c("A B -> C", "B C -> D"))
