Plot State-Clustering Choices — plot.vasstra_state

Draws a compact model-selection plot from state_choices(). Each line is one clustering method (and LPA covariance model). A ring marks the optimal eligible value of the plotted metric within each group; hollow points mark candidates that fail the requested size constraints.

Usage

# S3 method for class 'vasstra_state_choices'
plot(
  x,
  metric = c("silhouette", "bic", "aic", "classification_entropy", "mean_uncertainty",
    "min_size", "size_ratio", "bic_native", "icl_native"),
  colors = NULL,
  main = NULL,
  groups = NULL,
  show_legend = TRUE,
  ...
)

Arguments

x: A vasstra_state_choices object.
metric: Candidate metric to plot.
colors: Optional colors, one per displayed method/model.
main: Optional plot title.
groups: Optional character vector of method/model labels to display, such as "kmeans" or "lpa/EEI".
show_legend: Show the group and marker legends.
...: Additional arguments passed to graphics::plot().

Value

The tidy candidate data used in the plot, invisibly.

Examples

data("engagement", package = "VaSSTra")
options <- state_choices(engagement, n_states = 2:4, method = "kmeans")

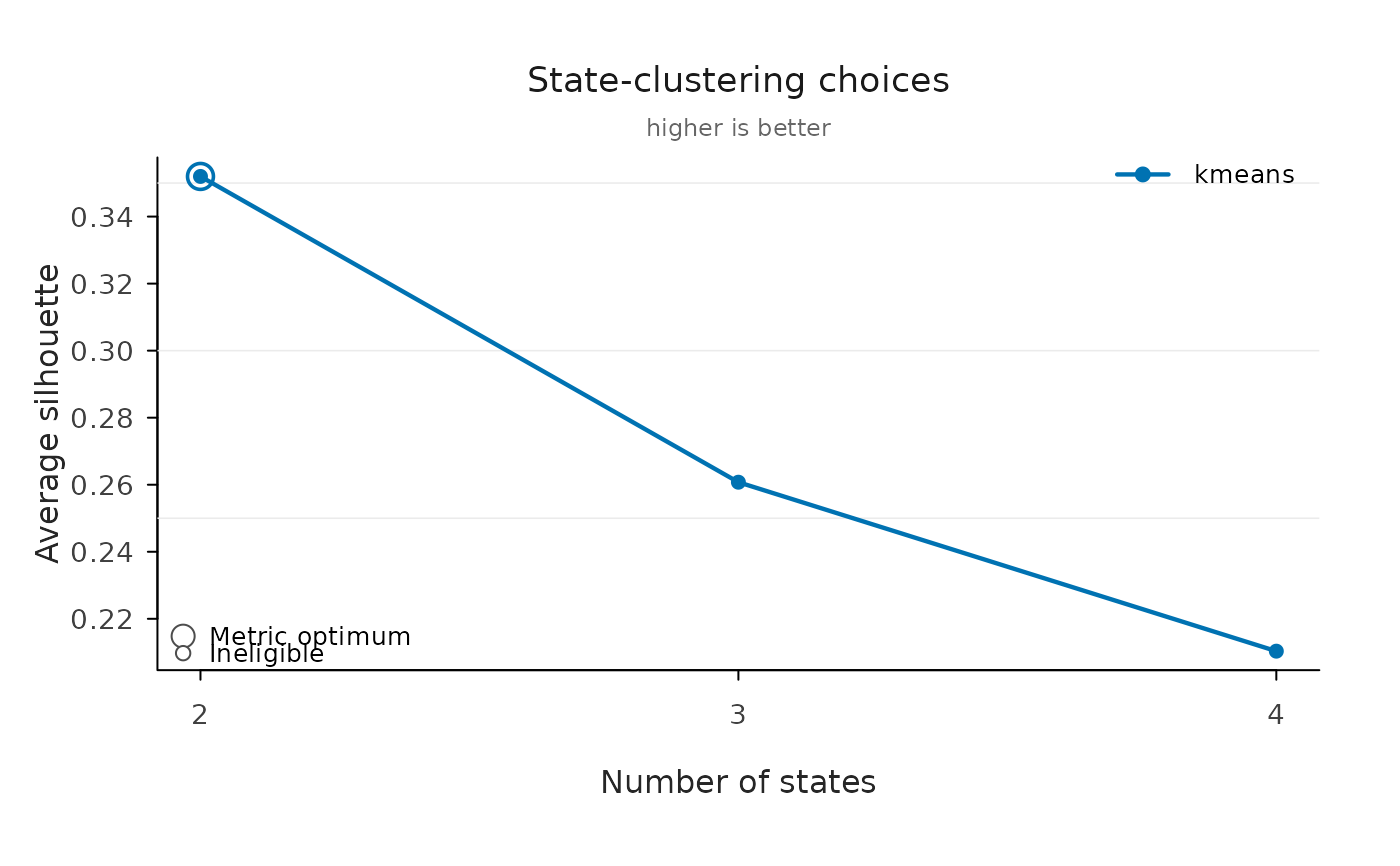

plot(options)

plot(options, metric = "silhouette")
