Plot Network Difference

Source: R/plot-compare.R
plot_compare.Rd

Plots the difference between two networks (x - y) using splot. Positive differences (x > y) are shown in green, negative (x < y) in red. Optionally displays node-level differences (e.g., initial probabilities) as donut charts.

Usage

plot_compare(
  x,
  y = NULL,
  i = NULL,
  j = NULL,
  pos_color = "#009900",
  neg_color = "#C62828",
  labels = NULL,
  title = NULL,
  inits_x = NULL,
  inits_y = NULL,
  show_inits = NULL,
  donut_inner_ratio = 0.8,
  force = FALSE,
  ...
)

Arguments

x

First network: matrix, CographNetwork, tna, igraph object, OR a group_tna object. For group_tna with 2 groups, compares them directly. For more groups, plots all pairwise comparisons (or specify i, j).

y

Second network: same type as x. Ignored if x is group_tna.

i

Index/name of first group when x is group_tna. NULL for all pairs.

j

Index/name of second group when x is group_tna. NULL for all pairs.

pos_color

Color for positive differences (x > y). Default "#009900" (green).

neg_color

Color for negative differences (x < y). Default "#C62828" (red).

labels

Node labels. NULL uses rownames or defaults.

title

Plot title. NULL for auto-generated title.

inits_x

Node values for x (e.g., initial probabilities). NULL to auto-extract from tna.

inits_y

Node values for y. NULL to auto-extract from tna.

show_inits

Logical: show node differences as donuts? Default TRUE if inits available.

donut_inner_ratio

Inner radius ratio for donut (0-1). Default 0.8.

force

Logical: force plotting when more than 4 groups (many comparisons). Default FALSE.

...

Additional arguments passed to splot().

Value

Invisibly returns a list with difference matrix and inits difference.

Details

The function computes element-wise subtraction of the weight matrices. Edge colors indicate direction of difference:

  • Green edges: x has higher weight than y

  • Red edges: y has higher weight than x

When initial probabilities (inits) are provided or extracted from tna objects, nodes display donut charts showing the absolute difference, colored by direction:

  • Green donut: x has higher initial probability

  • Red donut: y has higher initial probability

For lists of networks (e.g., group_tna), specify which elements to compare using i and j parameters.

Examples

if (FALSE) { # \dontrun{
# Compare two adjacency matrices
set.seed(42)
m1 <- matrix(runif(25), 5, 5)
m2 <- matrix(runif(25), 5, 5)
rownames(m1) <- colnames(m1) <- LETTERS[1:5]
rownames(m2) <- colnames(m2) <- LETTERS[1:5]
plot_compare(m1, m2)

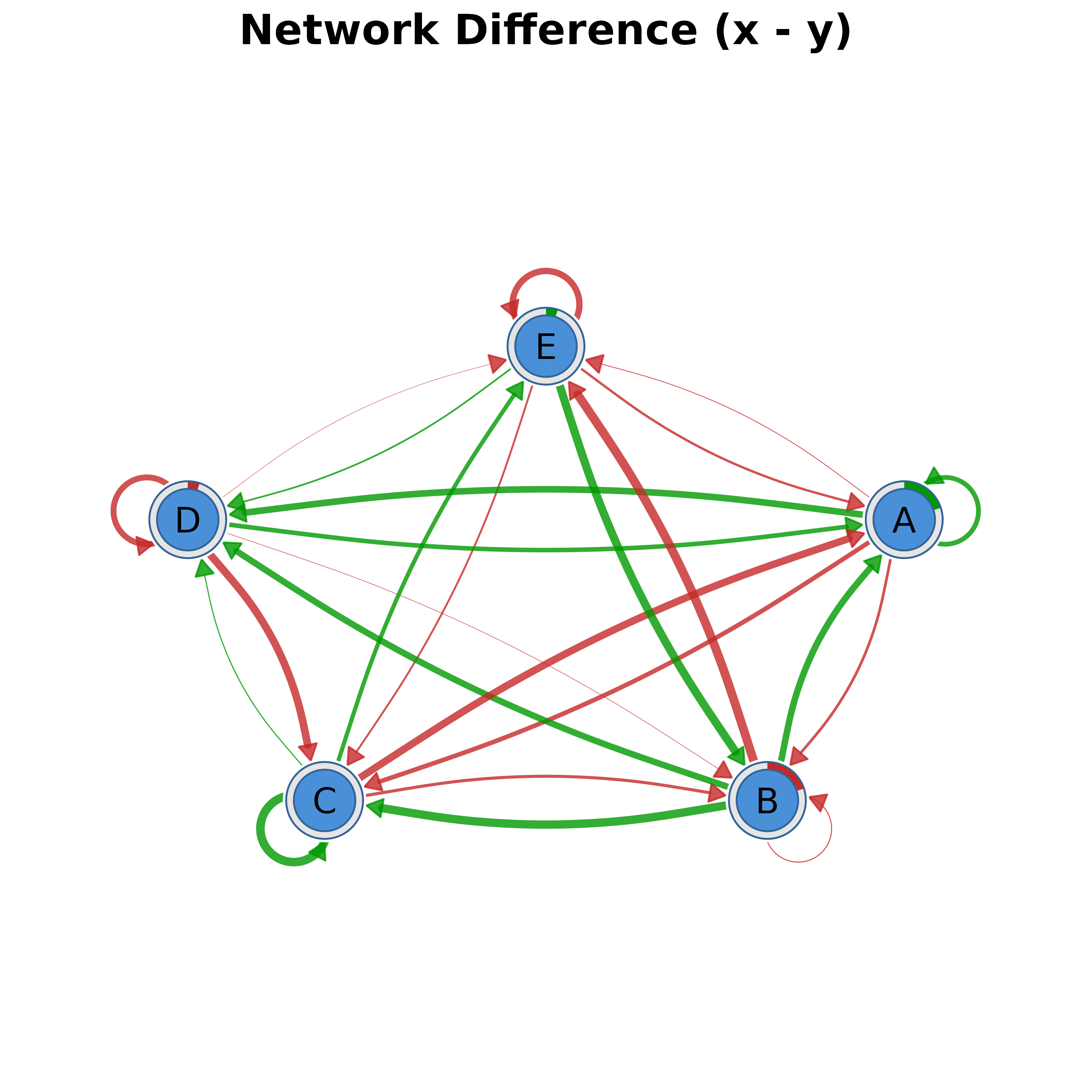

# With node-level differences
inits1 <- c(0.3, 0.2, 0.2, 0.15, 0.15)
inits2 <- c(0.1, 0.4, 0.2, 0.2, 0.1)
plot_compare(m1, m2, inits_x = inits1, inits_y = inits2)
} # }
