Chi-square Mosaic Plot of a Transition Network

Source: R/mosaic_plot_htna.R
mosaic_plot_htna.Rd

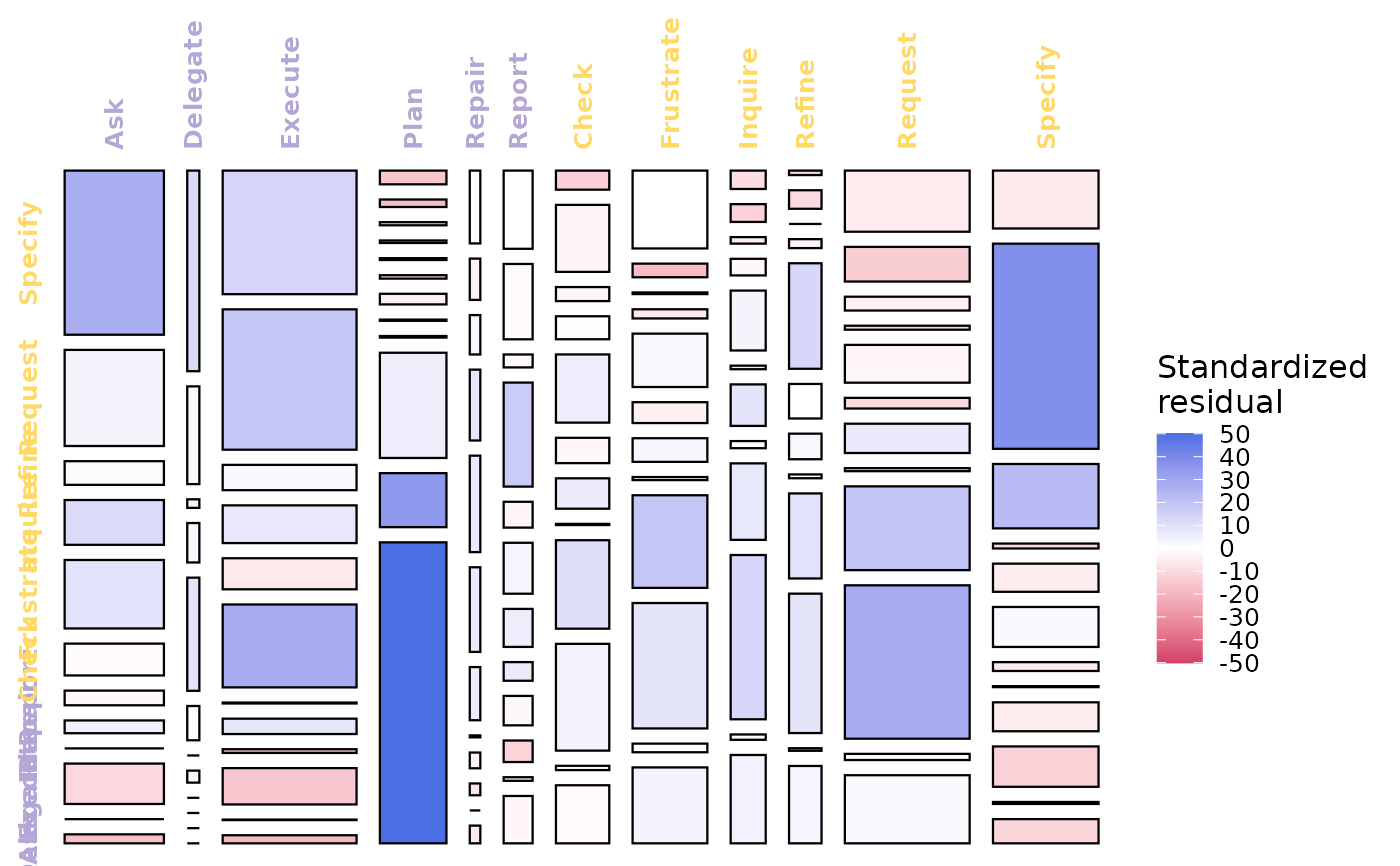

htna-named alias of Nestimate::mosaic_plot(). Renders a chi-square mosaic where row x column area equals the joint share of (from, to) transitions and fill encodes the standardized residual (blue = over-represented, red = under-represented, white = at-expected).

Usage

mosaic_plot_htna(x, ...)

Arguments

x

One of the four data-bearing Nestimate classes: netobject (single mosaic of $weights), netobject_group (one panel per group), mcml (between-cluster mosaic by default; per-cluster panels with level = "within"), or htna (single mosaic of $weights; htna inherits netobject so the geometry matches). Also accepts a contingency table or plain numeric matrix for ad-hoc plotting.

...

Ignored.

Value

A ggplot or gtable, depending on input shape. See Nestimate::mosaic_plot() for full details and the per-class S3 methods.

Details

Designed with htna in mind: Nestimate ships an explicit mosaic_plot.htna S3 method that recognises the actor partition on htna networks. Pass an htna network from build_htna() directly. The underlying transition matrix must be integer-weighted (build with method = "frequency"), since the chi-square test needs counts.

Axis tick labels are coloured by actor group using the htna palette (htna_palette), matching the colours used elsewhere in htna (e.g. plot_htna()).

Suffixed _htna to avoid clashing with Nestimate::mosaic_plot() when both packages are loaded.

See also

plot_frequencies_htna() for the marginal-frequency companion view.

Examples

# \donttest{
data(human_ai)
net <- build_htna(human_ai, actor_type = "actor_type",
                  method = "frequency")
#> Warning: A network with one long sequence is not recommended and can't be validated using bootstrap and other confirmatory testings.
#> Metadata aggregated per session: ties resolved by first occurrence in 'session_date' (1 sessions), 'cluster' (42 sessions), 'actor_type' (24 sessions)
mosaic_plot_htna(net, n_perm = 50, seed = 1)
#> Warning: Vectorized input to `element_text()` is not officially supported.
#> ℹ Results may be unexpected or may change in future versions of ggplot2.
#> Warning: Vectorized input to `element_text()` is not officially supported.
#> ℹ Results may be unexpected or may change in future versions of ggplot2.

# }
