Heterogeneous Transition Network Analysis (HTNA) studies sequences in which two or more actors interleave – a learner and a tutor, a human and an AI, a clinician and a patient – and treats each actor’s codes as a distinct node group. The htna package builds the network, computes the usual analytical quantities, and renders the result with the actor partition baked into colour, layout, and the legend. Estimation is done by the ‘Nestimate’ engine and every network plot is rendered by ‘cograph’; htna keeps the actor partition attached at each step so that the two engines treat each actor’s codes as a distinct node group.

1. Building a heterogeneous network

Start from one long-format data frame with an actor-type column tagging each row ("Human" or "AI") and pass its name as actor_type to build_htna(). The result is a network whose nodes carry the actor label they came from. The bundled human_ai corpus (see ?human_ai) is used throughout this vignette.

library(htna)
data(human_ai)

net <- build_htna(human_ai, actor_type = "actor_type", actor = "session_id")

2. Plotting the network

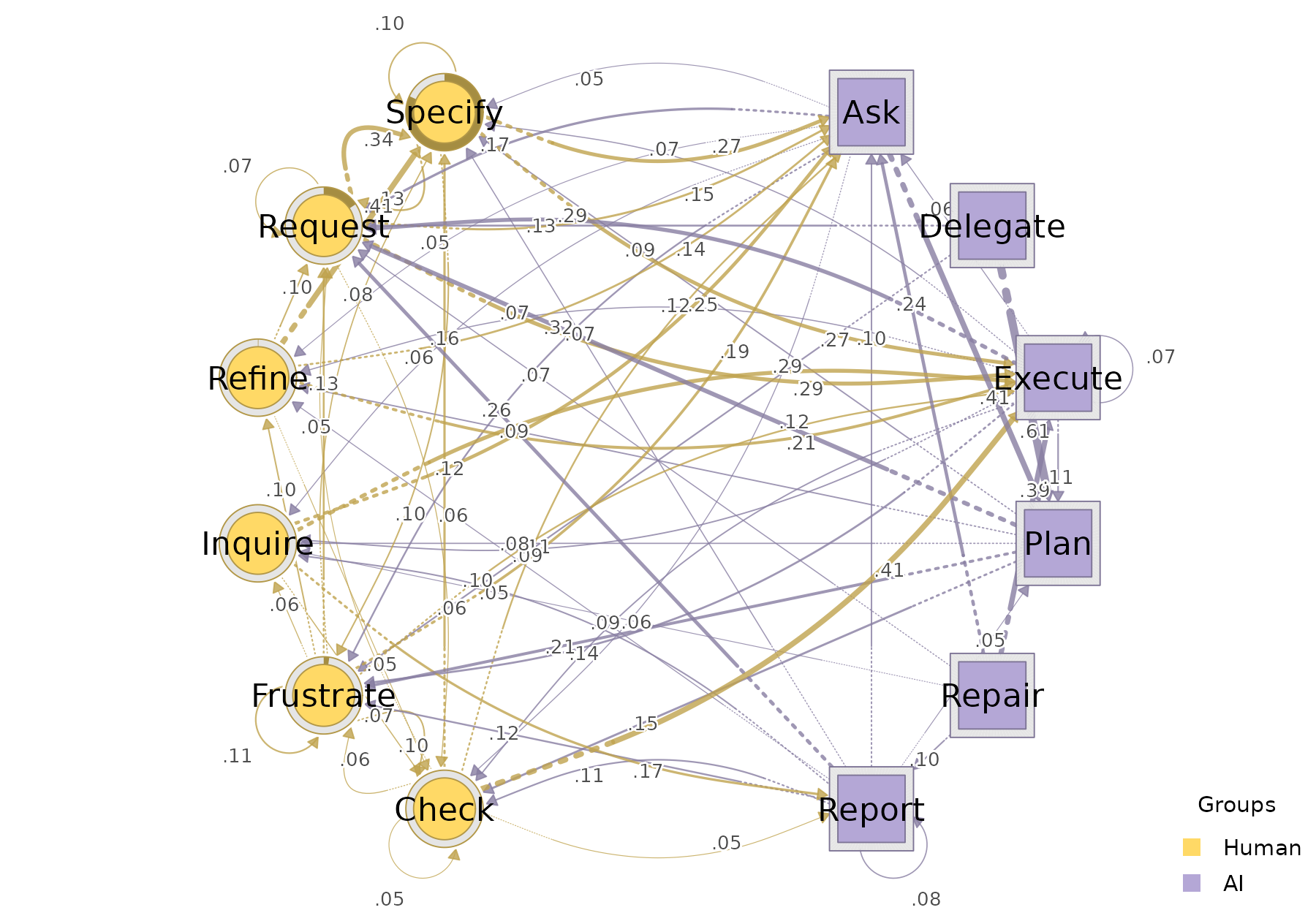

plot_htna() lays out actor groups around the circle, colours each node by its actor type, and draws the actor legend below the plot:

3. Per-actor sequence plots

The network aggregates transitions over all sessions and so discards when each code occurs. sequence_plot_htna() restores that view. With by = "state" (the default) each cell is coloured by its code; with by = "group" cells are coloured by actor type. type selects the layout: "index" draws one panel per actor with one row per session, "heatmap" joins the actors into a single carpet with a separator at the actor boundary, and "distribution" shows the state composition per timepoint as a stacked area.

sequence_plot_htna(net, by = "state", type = "index")

sequence_plot_htna(net, by = "state", type = "heatmap")

sequence_plot_htna(net, by = "group", type = "distribution", na_color = "white")

When by = "state", the legend is split into one block per actor type with the actor type name above each block, so the reader can tell at a glance which codes belong to which actor type.

4. Centralities

centralities_htna() returns per-node centrality measures: one row per node, one column per measure, defaulting to nine standard measures (out/in strength, in/out closeness, closeness, betweenness, RSP betweenness, diffusion, clustering). Pass measures = c(...) to restrict to a specific set.

centralities_htna(net)
#>         node actor OutStrength InStrength ClosenessIn ClosenessOut  Closeness
#> 1        Ask    AI   0.9817642  1.5266008 0.012587425  0.006192077 0.01670617
#> 2      Check Human   0.9499230  0.7522288 0.008035193  0.006492281 0.01340661
#> 3   Delegate    AI   1.0000000  0.1740318 0.003015314  0.007567519 0.01315340
#> 4    Execute    AI   0.9256198  2.0338718 0.016720393  0.006367002 0.01784416
#> 5  Frustrate Human   0.8861885  0.9672100 0.010511066  0.006322199 0.01169411
#> 6    Inquire Human   0.9671362  0.5147284 0.006592669  0.007311931 0.01399616
#> 7       Plan    AI   0.9967742  1.2496499 0.012325008  0.006926899 0.01675952
#> 8     Refine Human   1.0000000  0.4703420 0.005943026  0.006143417 0.01250189
#> 9     Repair    AI   0.9960474  0.1995057 0.002655997  0.007958047 0.01404200
#> 10    Report    AI   0.9225146  0.5246300 0.005125410  0.007099789 0.01180054
#> 11   Request Human   0.9329032  1.6926517 0.016089323  0.005980693 0.01812498
#> 12   Specify Human   0.8991424  1.3525625 0.013064153  0.006197358 0.01619607
#>    Betweenness BetweennessRSP Diffusion Clustering
#> 1           13             91  8.778380  0.1543463
#> 2            0             42  8.354335  0.2074548
#> 3            0              3  9.003808  0.1868121
#> 4           29            118  8.186741  0.1359230
#> 5            2             61  7.948727  0.2014196
#> 6           14             27  8.615216  0.1703483
#> 7           25             63  8.715568  0.1531488
#> 8            0             23  8.751161  0.2393259
#> 9            0              1  8.852837  0.2039989
#> 10           0             17  8.186046  0.1557107
#> 11          19            110  8.181829  0.1842378
#> 12          15             88  8.008017  0.2112340

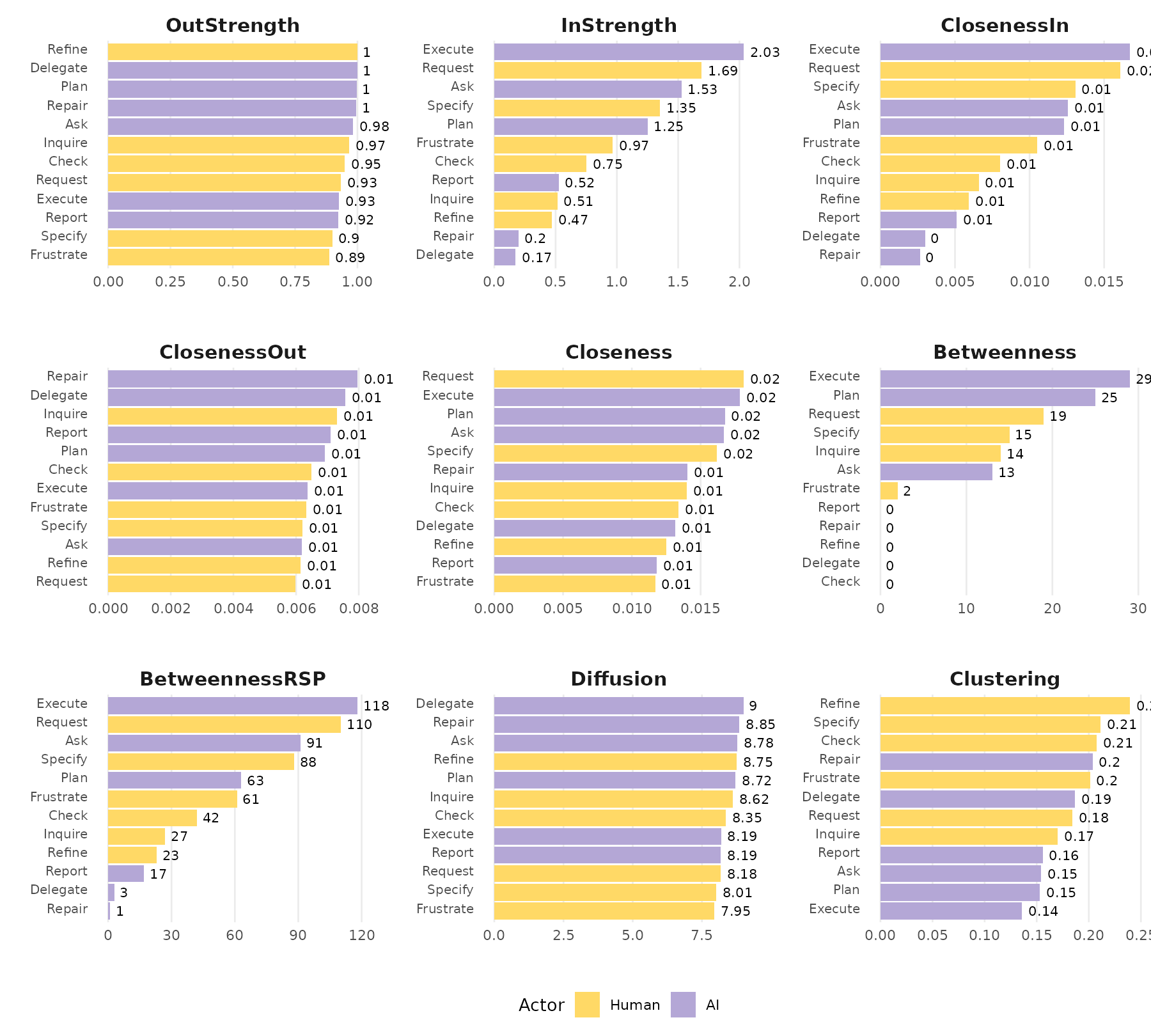

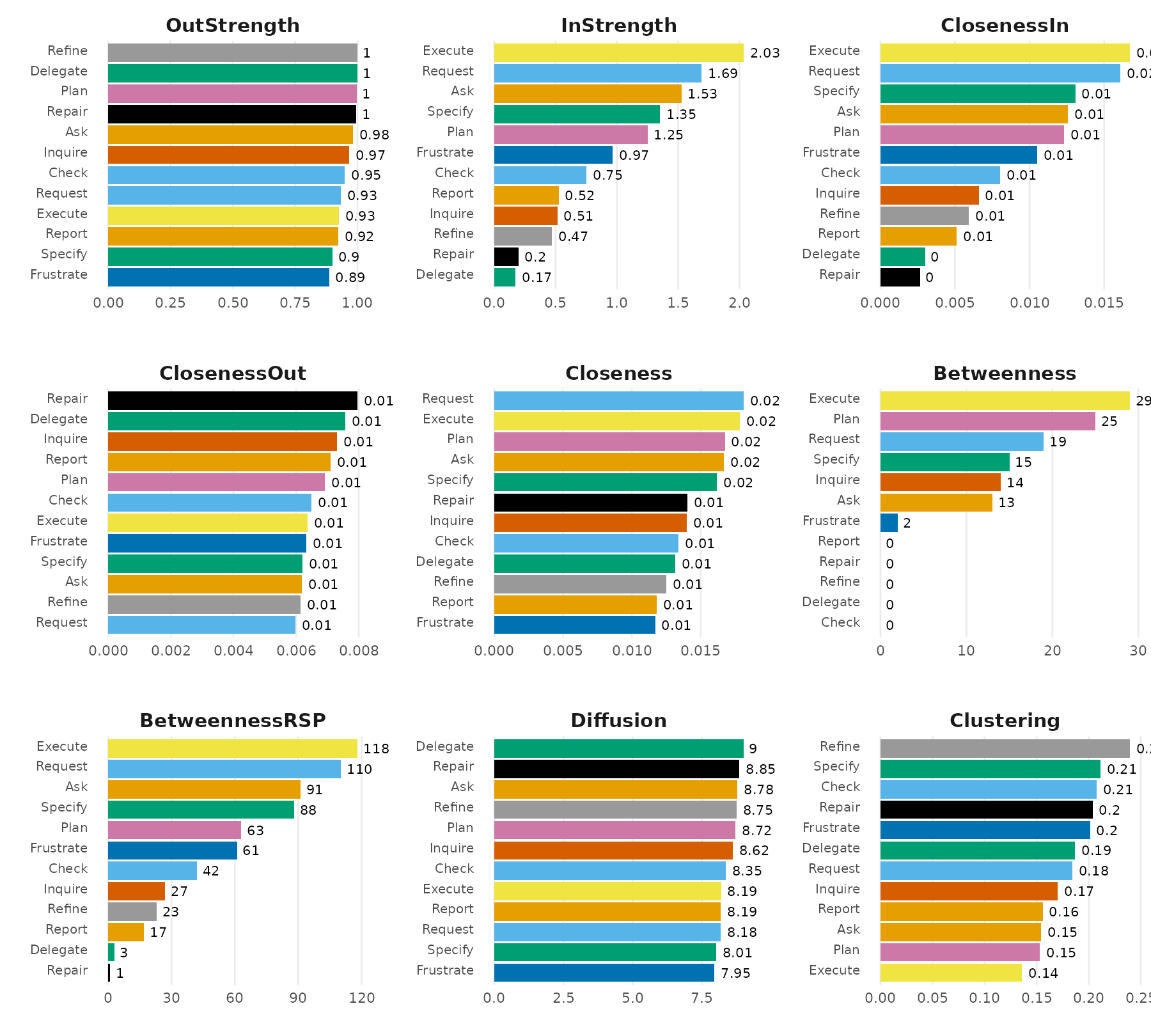

To plot centralities, the plot_centralities() function can be used. Each panel is one measure; bars are coloured per state by default, or by actor type with by = "group":

plot_centralities(net, by = "state")

plot_centralities(net, by = "group")

5. Bootstrap

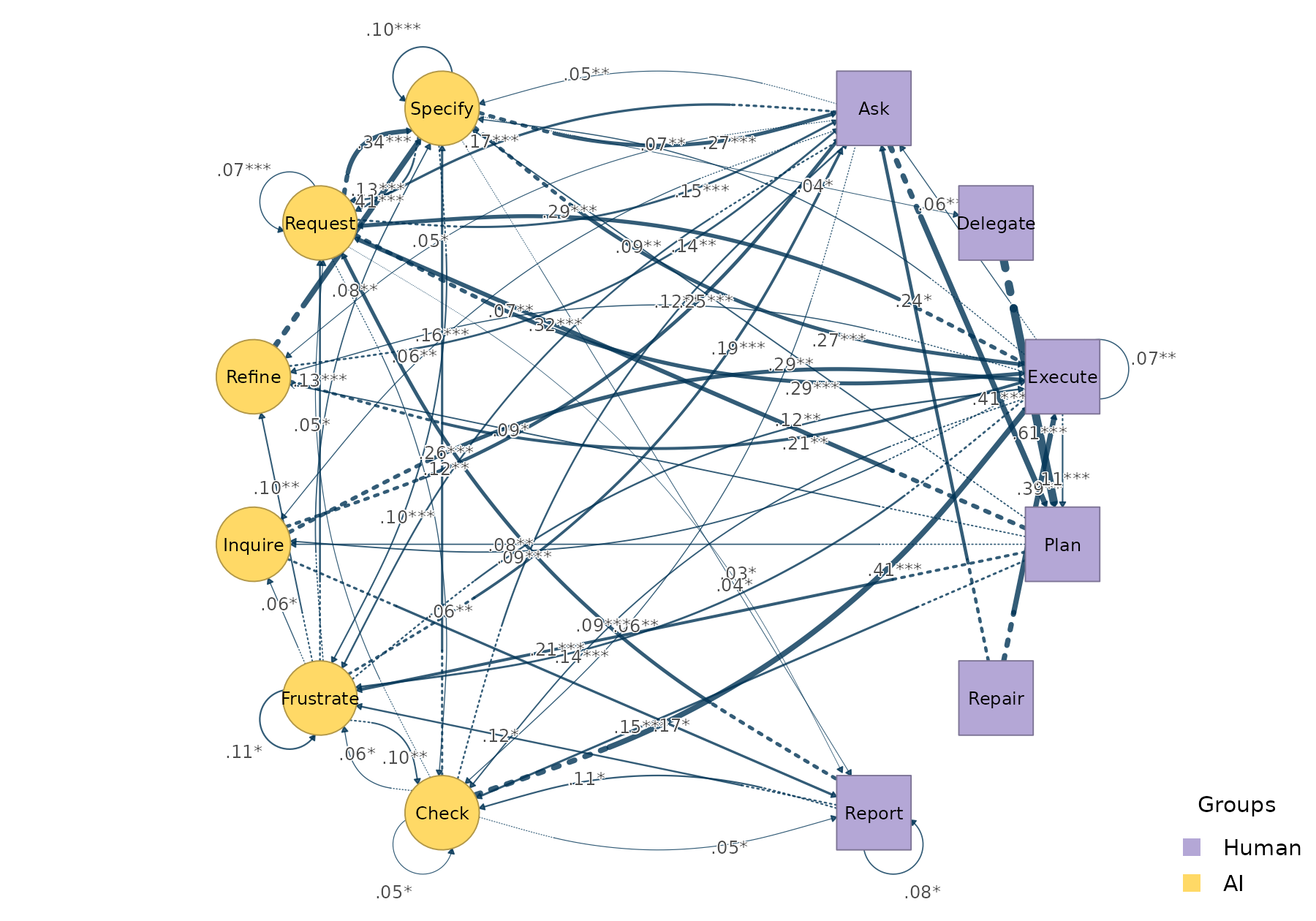

To validate which transitions of an HTNA model are stable, bootstrap_htna() resamples sessions to obtain edge-weight stability and per-edge p-values. plot_htna_bootstrap() renders the resampled network. By default (display = "styled") all edges are shown, with non-significant edges dashed; pass display = "significant" to keep only the edges that pass the significance threshold.

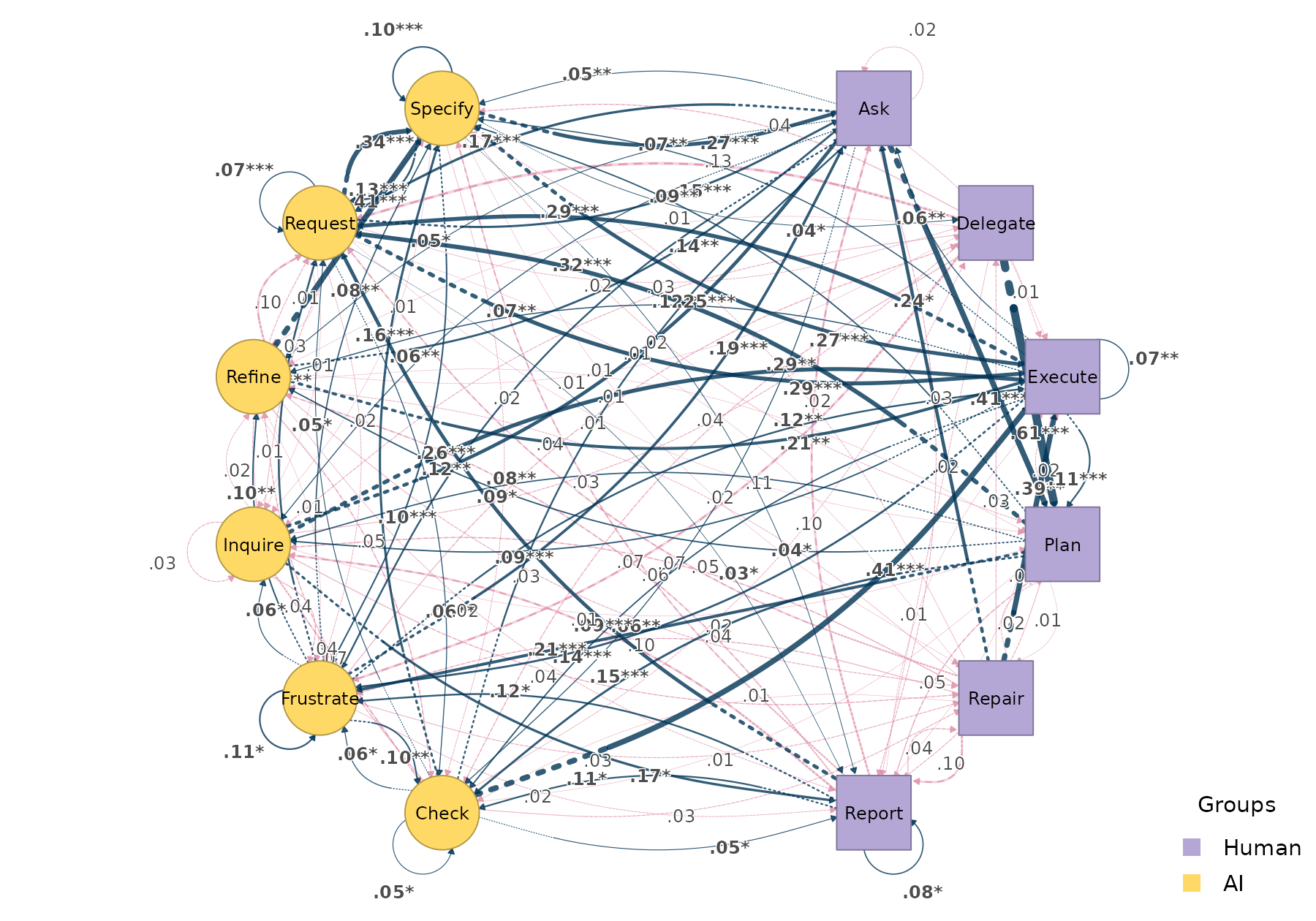

plot_htna_bootstrap(boot, display = "significant")

6. Centrality stability

The function centrality_stability_htna() runs a case-dropping centrality stability check: drops a proportion of the sessions, recomputes the centralities, and measures how strongly the dropped-sample centralities correlate with the originals. The returned cs value per measure is the largest drop proportion at which the correlation with the original centralities still meets the threshold (default 0.7) for at least certainty (default 0.95) of resamples — values above ~0.5 are typically considered stable.

cs <- centrality_stability_htna(net, iter = 100, seed = 1)
cs
#> HTNA Centrality Stability Analysis
#> ===================================
#> Centrality Stability (100 iterations, threshold = 0.7)
#>   Drop proportions: 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9
#>
#>   CS-coefficients:
#>     InStrength       0.90
#>     OutStrength      0.90
#>     Betweenness      0.90

By default the check covers InStrength, OutStrength, and Betweenness, the three measures whose values are bit-equal between htna’s cograph engine and Nestimate’s default implementation. A centrality ranking should only be interpreted for measures whose CS-coefficient clears the 0.5 mark; summary(cs) gives the mean correlation at every drop proportion behind each coefficient.

7. Split-half reliability

The function reliability_htna() reports how stable each edge weight is under random split-half resampling: it draws iter random splits of the sessions, builds a network on each half, and summarises the agreement (mean / median / max absolute deviation, plus correlation) between paired half-networks.

rel <- reliability_htna(net, iter = 100, seed = 1)
rel
#> Split-Half Reliability (100 iterations, split = 50%)
#>   Mean Abs. Diff.     mean = 0.0125  sd = 0.0011
#>   Median Abs. Diff.   mean = 0.0075  sd = 0.0009
#>   Pearson             mean = 0.9820  sd = 0.0049
#>   Max Abs. Diff.      mean = 0.0982  sd = 0.0313

A Pearson correlation close to 1 between half-networks means the edge weights do not hinge on which sessions happen to be sampled, so the network as a whole can be interpreted. summary(rel) returns the same numbers as a tidy table.

8. Comparing two networks

Given two HTNA networks over the same actor partition, plot_htna_diff() draws the edge-level difference x - y. Positive differences are green, negative red; networks with partially different node sets are aligned to the union of their nodes.

For example, we compare early vs. late sessions using the phase column in the dataset, building one network from each set of sessions:

early <- build_htna(subset(human_ai, phase == "Early"), actor_type = "actor_type")
late  <- build_htna(subset(human_ai, phase == "Late"),  actor_type = "actor_type")

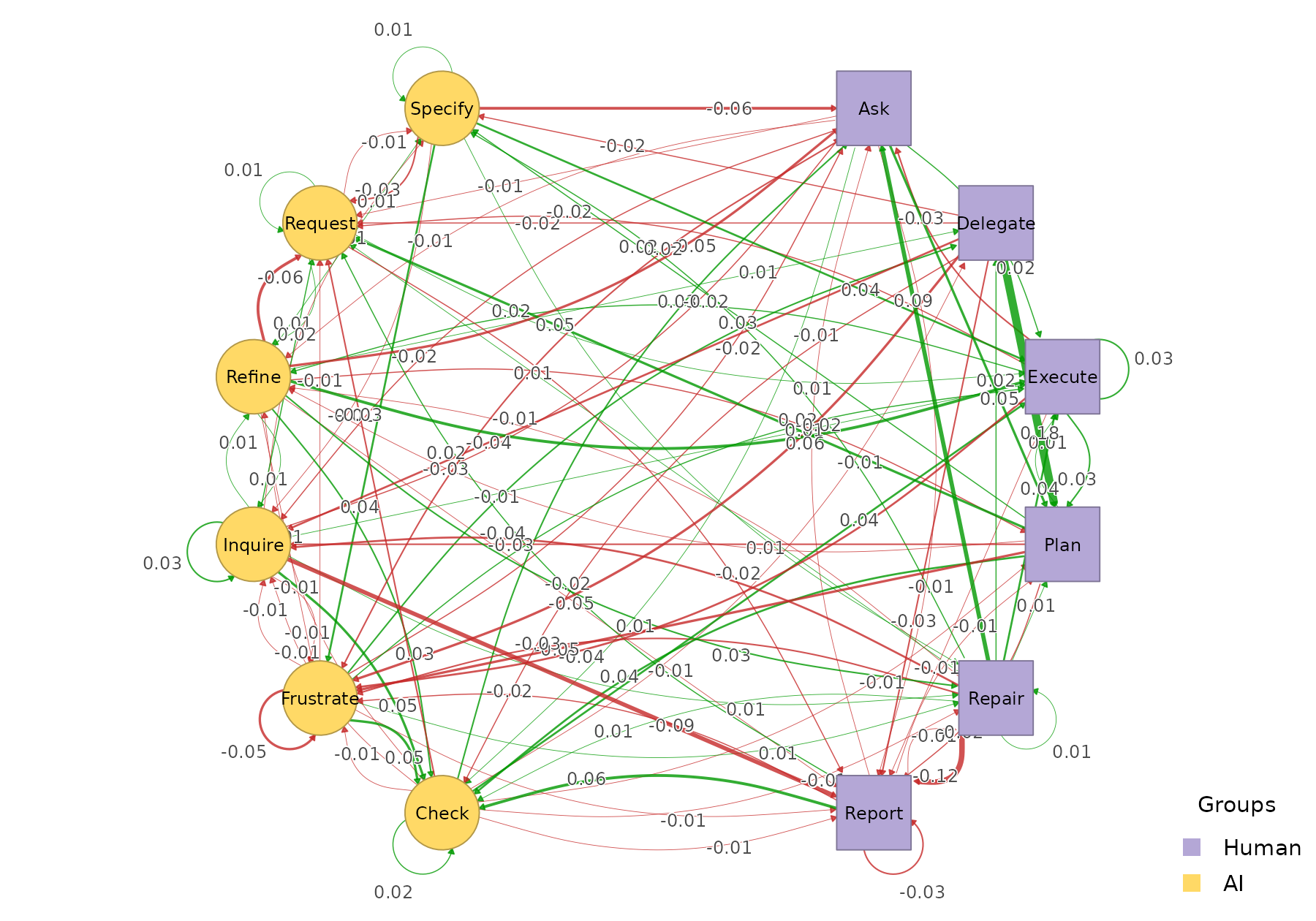

plot_htna_diff(early, late)

The same two networks are the cohorts of build_htna(human_ai, actor_type = "actor_type", group = "phase"); see the grouped-HTNA article for comparing every cohort of a grouped network in one call.

9. Permutation test

A raw difference does not say which edges differ by more than sampling noise. The function permutation_htna() provides a non-parametric significance test on each edge weight difference by shuffling sessions between the two networks. Pass the result to plot_htna_diff() to render significant differences with the pos/neg colouring above; non-significant edges are dashed grey when show_nonsig = TRUE.

perm <- permutation_htna(early, late, iter = 200, seed = 1)

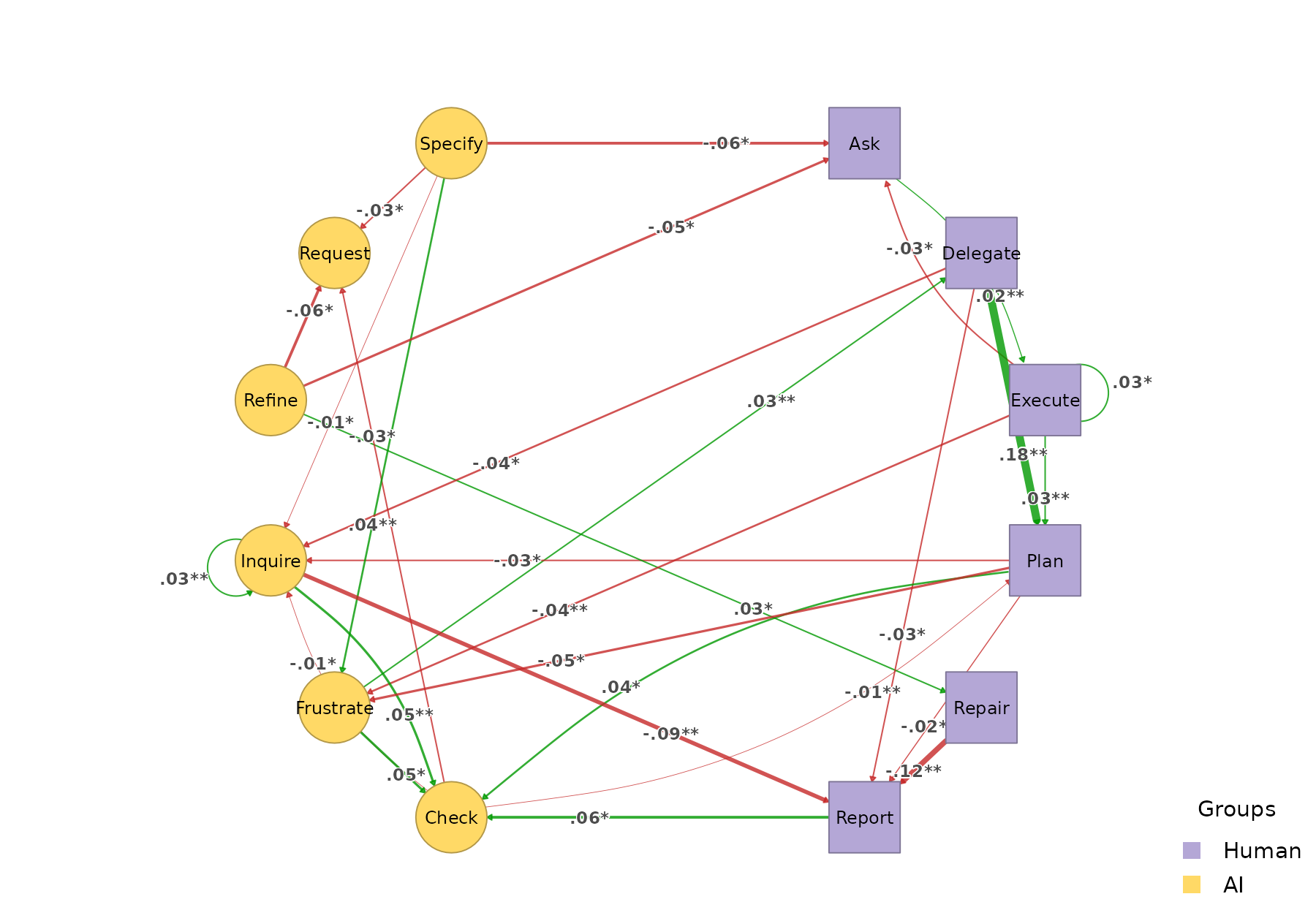

plot_htna_diff(perm)

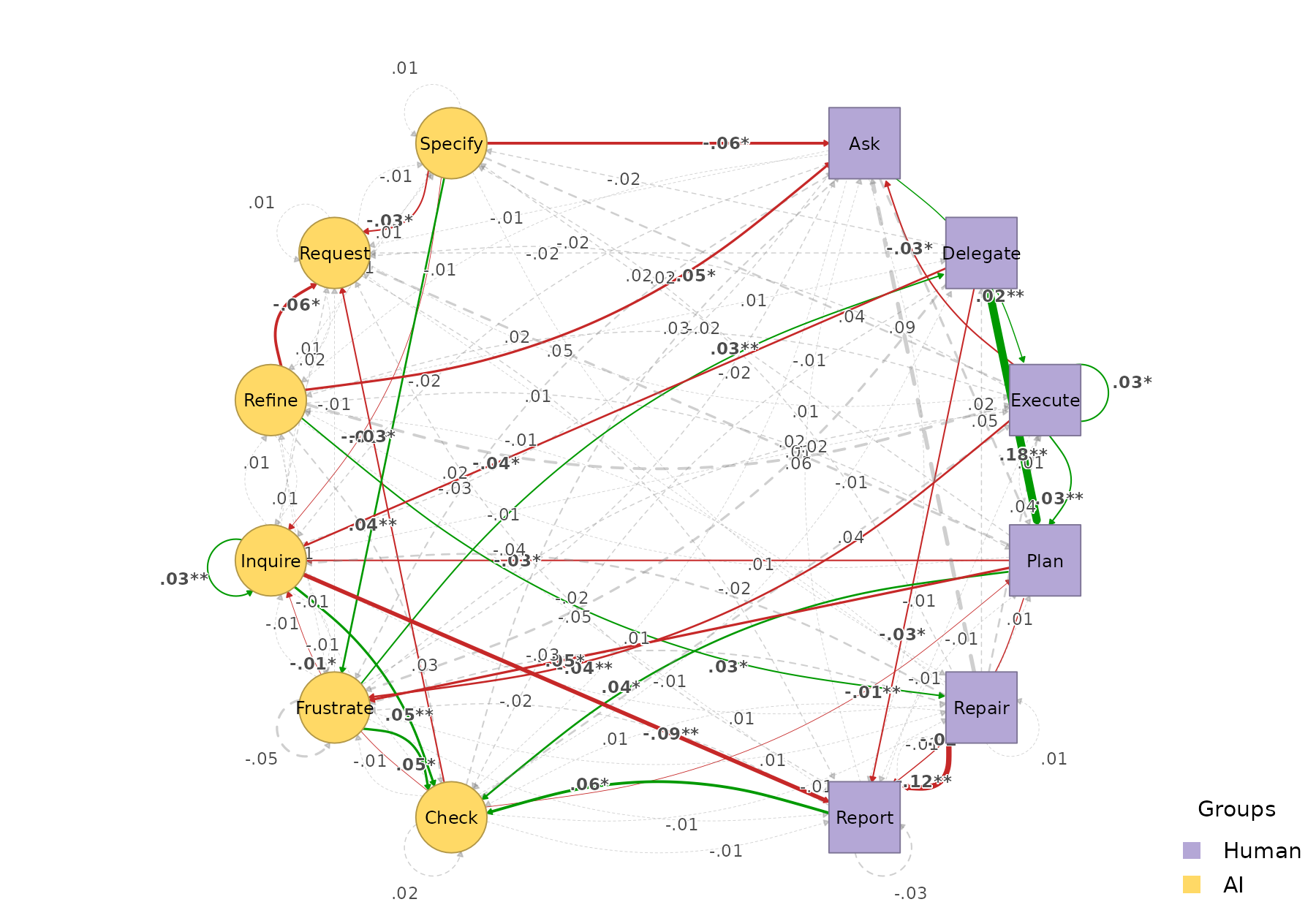

plot_htna_diff(perm, show_nonsig = TRUE)

10. Path patterns

extract_meta_paths() discovers recurring patterns at two levels. By default it returns concrete state-level patterns (alphabet = the code set Ask, Plan, Check, …) and annotates each row with the type-level template it instantiates:

extract_meta_paths(net, length = 3)
#> Patterns (state-level) over 429 sequences
#> Rows: 1058 | Lengths: 3 | Gaps: 0
#>                       schema         meta_schema length gap count n_seq support
#>    Request->Execute->Request    Human->AI->Human      3   0   401   194   0.452
#>    Execute->Request->Execute       AI->Human->AI      3   0   391   180   0.420
#>        Request->Specify->Ask    Human->Human->AI      3   0   344   202   0.471
#>           Specify->Ask->Plan       Human->AI->AI      3   0   340   197   0.459
#>           Ask->Plan->Request       AI->AI->Human      3   0   303   197   0.459
#>    Request->Specify->Execute    Human->Human->AI      3   0   281   152   0.354
#>    Execute->Request->Specify    AI->Human->Human      3   0   249   142   0.331
#>  Request->Specify->Frustrate Human->Human->Human      3   0   248   241   0.562
#>         Frustrate->Ask->Plan       Human->AI->AI      3   0   214   187   0.436
#>    Specify->Request->Specify Human->Human->Human      3   0   198   192   0.448
#>  frequency  lift
#>      0.022  5.00
#>      0.021  4.65
#>      0.019  6.15
#>      0.018 11.65
#>      0.016  9.77
#>      0.015  3.73
#>      0.013  3.30
#>      0.013  5.86
#>      0.012 11.71
#>      0.011  2.93
#> ... (1048 more)

A schema filters the search. Each part can be a type name (expands to every code in that group), a concrete state, or *:

extract_meta_paths(net, schema = "Human->AI->Human")
#> State-level instances of schema 'Human->AI->Human' over 429 sequences
#> Rows: 163 | Lengths: 3 | Gaps: 0
#>                       schema      meta_schema length gap count n_seq support
#>    Request->Execute->Request Human->AI->Human      3   0   401   194   0.452
#>    Specify->Execute->Request Human->AI->Human      3   0   176   107   0.249
#>        Request->Ask->Request Human->AI->Human      3   0   130    91   0.212
#>      Check->Execute->Request Human->AI->Human      3   0   123    96   0.224
#>        Specify->Ask->Request Human->AI->Human      3   0   120    84   0.196
#>  Specify->Execute->Frustrate Human->AI->Human      3   0   114    88   0.205
#>  Request->Execute->Frustrate Human->AI->Human      3   0   106    88   0.205
#>    Request->Execute->Inquire Human->AI->Human      3   0    97    76   0.177
#>      Specify->Ask->Frustrate Human->AI->Human      3   0    86    70   0.163
#>    Inquire->Execute->Request Human->AI->Human      3   0    73    52   0.121
#>  frequency lift
#>      0.112 5.00
#>      0.049 2.33
#>      0.036 2.19
#>      0.034 3.67
#>      0.033 2.15
#>      0.032 2.57
#>      0.030 2.24
#>      0.027 4.40
#>      0.024 2.61
#>      0.020 3.31
#> ... (153 more)
extract_meta_paths(net, schema = "Human->Ask->*")
#> State-level instances of schema 'Human->Ask->*' over 429 sequences
#> Rows: 63 | Lengths: 3 | Gaps: 0
#>                   schema      meta_schema length gap count n_seq support
#>       Specify->Ask->Plan    Human->AI->AI      3   0   340   197   0.459
#>     Frustrate->Ask->Plan    Human->AI->AI      3   0   214   187   0.436
#>       Request->Ask->Plan    Human->AI->AI      3   0   139   106   0.247
#>    Request->Ask->Request Human->AI->Human      3   0   130    91   0.212
#>    Specify->Ask->Request Human->AI->Human      3   0   120    84   0.196
#>  Specify->Ask->Frustrate Human->AI->Human      3   0    86    70   0.163
#>       Inquire->Ask->Plan    Human->AI->AI      3   0    53    45   0.105
#>        Refine->Ask->Plan    Human->AI->AI      3   0    52    46   0.107
#>  Request->Ask->Frustrate Human->AI->Human      3   0    50    44   0.103
#>    Specify->Ask->Specify Human->AI->Human      3   0    49    41   0.096
#>  frequency  lift
#>      0.170 11.65
#>      0.107 11.71
#>      0.070  4.48
#>      0.065  2.19
#>      0.060  2.15
#>      0.043  2.61
#>      0.027  6.22
#>      0.026  6.57
#>      0.025  1.43
#>      0.025  0.93
#> ... (53 more)

Filter by lift to surface over-represented patterns (lift > 1 means more frequent than independence would predict):

extract_meta_paths(net, length = 3, min_lift = 2)
#> Patterns (state-level) over 429 sequences
#> Rows: 301 | Lengths: 3 | Gaps: 0
#>                       schema         meta_schema length gap count n_seq support
#>    Request->Execute->Request    Human->AI->Human      3   0   401   194   0.452
#>    Execute->Request->Execute       AI->Human->AI      3   0   391   180   0.420
#>        Request->Specify->Ask    Human->Human->AI      3   0   344   202   0.471
#>           Specify->Ask->Plan       Human->AI->AI      3   0   340   197   0.459
#>           Ask->Plan->Request       AI->AI->Human      3   0   303   197   0.459
#>    Request->Specify->Execute    Human->Human->AI      3   0   281   152   0.354
#>    Execute->Request->Specify    AI->Human->Human      3   0   249   142   0.331
#>  Request->Specify->Frustrate Human->Human->Human      3   0   248   241   0.562
#>         Frustrate->Ask->Plan       Human->AI->AI      3   0   214   187   0.436
#>    Specify->Request->Specify Human->Human->Human      3   0   198   192   0.448
#>  frequency  lift
#>      0.022  5.00
#>      0.021  4.65
#>      0.019  6.15
#>      0.018 11.65
#>      0.016  9.77
#>      0.015  3.73
#>      0.013  3.30
#>      0.013  5.86
#>      0.012 11.71
#>      0.011  2.93
#> ... (291 more)
extract_meta_paths(net, level = "type", length = 3, min_lift = 1.2)
#> Meta-paths (type-level) over 429 sequences
#> Rows: 3 | Lengths: 3 | Gaps: 0
#>            schema length gap count n_seq support frequency lift
#>  Human->AI->Human      3   0  3593   402   0.937     0.194 1.41
#>  Human->Human->AI      3   0  3172   422   0.984     0.172 1.25
#>     AI->Human->AI      3   0  2744   383   0.893     0.148 1.36
