Filter edges using dplyr-style expressions on any edge column. Returns a
cograph_network object by default (universal format), or optionally the
same format as input when keep_format = TRUE.
Usage
filter_edges(
x,
...,
.keep_isolates = FALSE,
keep_format = FALSE,
directed = NULL
)
subset_edges(
x,
...,
.keep_isolates = FALSE,
keep_format = FALSE,
directed = NULL
)Arguments
- x
Network input: cograph_network, matrix, igraph, network, or tna object.
- ...
Filter expressions using any edge column (e.g.,
weight > 0.5,weight > mean(weight),abs(weight) > 0.3).- .keep_isolates
Logical. Keep nodes with no remaining edges? Default FALSE.
- keep_format
Logical. If TRUE, return the same format as input (matrix returns matrix, igraph returns igraph, etc.). Default FALSE returns cograph_network (universal format).
- directed
Logical or NULL. If NULL (default), auto-detect from matrix symmetry. Set TRUE to force directed, FALSE to force undirected. Only used for non-cograph_network inputs.
Value
A cograph_network object with filtered edges. If keep_format = TRUE,
returns the same type as input (matrix, igraph, network, etc.).
See filter_edges.
See also
filter_nodes, splot, subset_edges
Examples
adj <- matrix(c(0, .5, .8, 0,
.5, 0, .3, .6,
.8, .3, 0, .4,
0, .6, .4, 0), 4, 4, byrow = TRUE)
rownames(adj) <- colnames(adj) <- c("A", "B", "C", "D")
# Keep only strong edges (returns cograph_network)
filter_edges(adj, weight > 0.5)
#> Cograph network: 4 nodes, 2 edges ( undirected )
#> Source: filtered
#> Nodes (4): A, B, C, D
#> Edges: 2 / 6 (density: 33.3%)
#> Weights: [0.600, 0.800] | mean: 0.700
#> Strongest edges:
#> A -- C 0.800
#> B -- D 0.600
#> Layout: none
# Keep format: matrix in, matrix out
filter_edges(adj, weight > 0.5, keep_format = TRUE)
#> A B C D
#> A 0 0 0.8 0.0
#> B 0 0 0.0 0.6
#> C 0 0 0.0 0.0
#> D 0 0 0.0 0.0
# Keep edges above mean weight

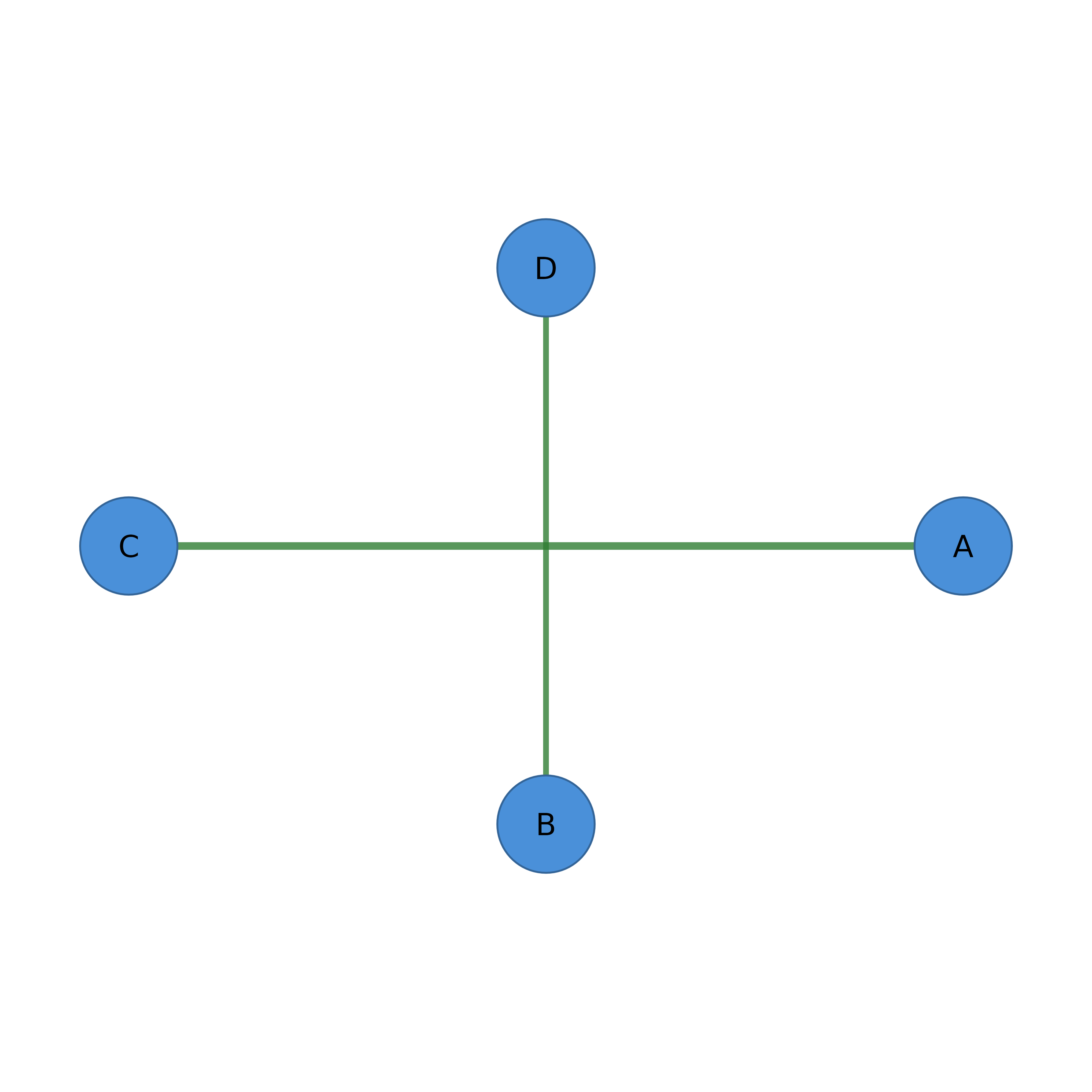

splot(filter_edges(adj, weight >= mean(weight)))
# With cograph_network (pipe-friendly)
net <- as_cograph(adj)

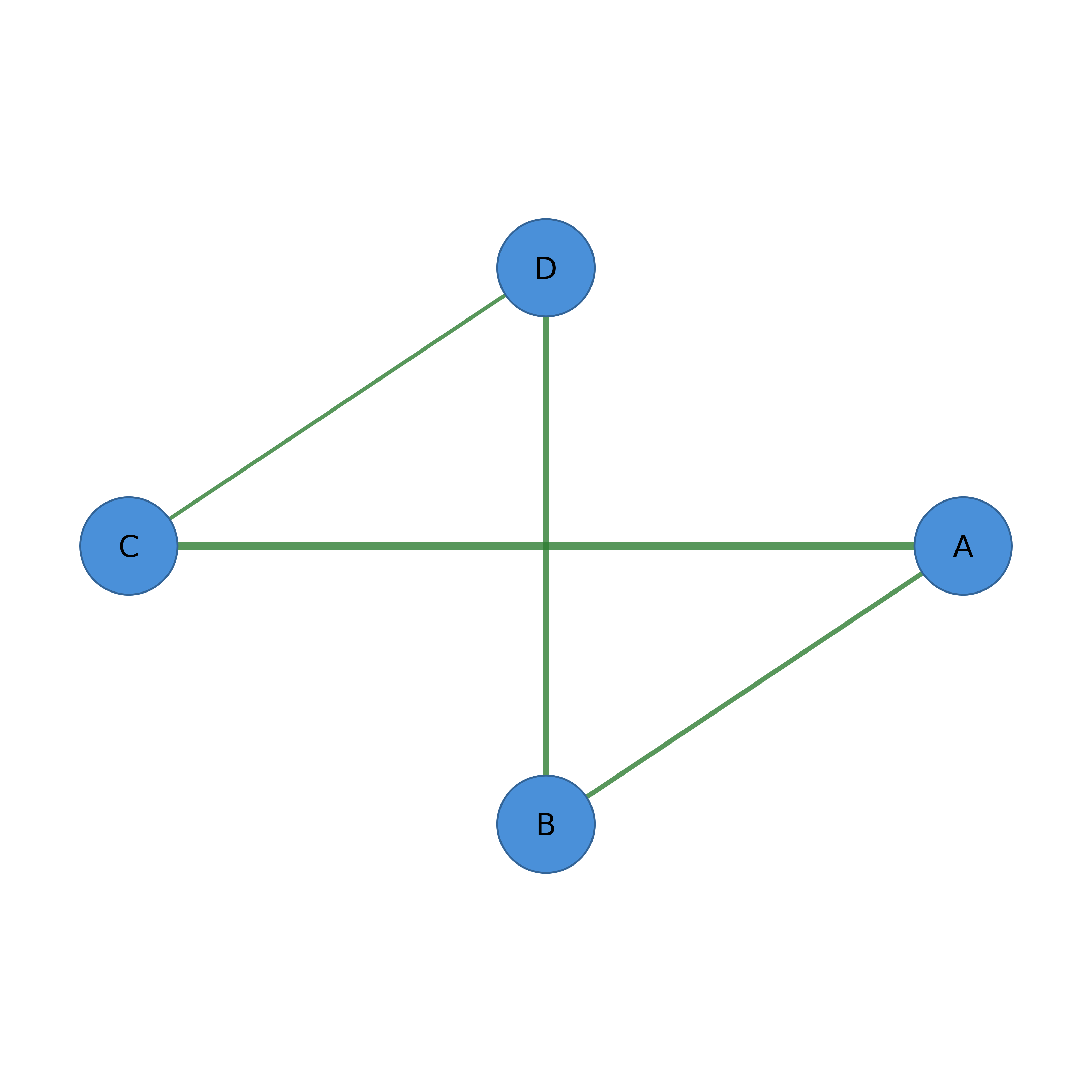

net |>
filter_edges(weight > 0.3) |>
filter_nodes(degree >= 2) |>
splot()
# Keep isolated nodes
filter_edges(net, weight > 0.7, .keep_isolates = TRUE)
#> Cograph network: 4 nodes, 1 edges ( undirected )
#> Source: filtered
#> Nodes (4): A, B, C, D
#> Edges: 1 / 6 (density: 16.7%)
#> Weights: [0.800, 0.800] | mean: 0.800
#> Strongest edges:
#> A -- C 0.800
#> Layout: none
# With igraph (keep_format = TRUE returns igraph)
if (requireNamespace("igraph", quietly = TRUE)) {
g <- igraph::make_ring(5)
filter_edges(g, weight > 0, keep_format = TRUE) # Returns igraph
}
#> IGRAPH 2102c4f UNW- 5 5 --
#> + attr: name (v/c), weight (e/n)
#> + edges from 2102c4f (vertex names):
#> [1] 1--2 2--3 3--4 4--5 1--5
