Introduction

When we analyze sequential data as a network — who follows whom, which state leads to which — we typically build a first-order Markov model: the probability of the next state depends only on the current state. This is the foundation of Transition Network Analysis (TNA).

But human behavior is not always memoryless. Consider two programmers working with an AI coding assistant:

Programmer A: Specify → Request → Specify → Request (a steady back-and-forth)
Programmer B: Frustrate → Specify → Request → Command (escalating from frustration to direct commands)

In a first-order model, both sequences contribute equally to the Specify → Request transition. But the context — what came before — matters. The sequence Frustrate → Specify may lead to very different next actions than Request → Specify. These are higher-order dependencies: cases where the past two (or more) states jointly predict the future better than the current state alone.

This tutorial introduces a complete pipeline for detecting, quantifying, and visualizing higher-order structure in sequential data. We progress from standard transition networks through statistical order detection, pathway analysis, and into the topology of higher-order interactions using simplicial complexes.

What you will learn

Test whether your data has higher-order dependencies (and at what order)
Identify which specific pathways deviate from first-order expectations
Detect anomalously frequent or rare behavioral sequences
Compute topological invariants (Betti numbers, Euler characteristic)
Track how network topology changes across thresholds (persistent homology)
Visualize higher-order pathways as simplicial blob diagrams
Compare higher-order structure across groups

Packages

library(Nestimate)
library(cograph)

cograph provides the simplicial visualization (plot_simplicial()). Nestimate provides the higher-order network construction (build_hon, build_hypa, build_mogen) and simplicial complex analysis (build_simplicial, betti_numbers, persistent_homology, q_analysis).

Building the Network

We use a dataset of human–AI pair programming sessions where a researcher coded each human action into 9 behavioral categories: Request, Specify, Command, Correct, Refine, Verify, Inquire, Interrupt, and Frustrate.

data("human_long", package = "Nestimate")

net <- build_network(human_long, method = "relative",
                     action = "code", actor = "session_id",
                     time = "timestamp")
net

Transition Network (relative probabilities) [directed]
  Weights: [0.018, 0.620]  |  mean: 0.109

  Weight matrix:
            Command Correct Frustrate Inquire Interrupt Refine Request Specify
  Command     0.235   0.088     0.055   0.066     0.035  0.038   0.155   0.280
  Correct     0.093   0.091     0.138   0.057     0.054  0.112   0.120   0.278
  Frustrate   0.103   0.115     0.176   0.075     0.047  0.171   0.111   0.125
  Inquire     0.196   0.126     0.098   0.188     0.094  0.062   0.084   0.106
  Interrupt   0.259   0.081     0.094   0.123     0.102  0.080   0.069   0.122
  Refine      0.058   0.075     0.072   0.047     0.042  0.086   0.146   0.457
  Request     0.096   0.019     0.044   0.067     0.051  0.033   0.039   0.620
  Specify     0.263   0.058     0.081   0.072     0.167  0.074   0.070   0.172
  Verify      0.224   0.079     0.164   0.118     0.043  0.097   0.116   0.083
            Verify
  Command    0.048
  Correct    0.056
  Frustrate  0.077
  Inquire    0.044
  Interrupt  0.069
  Refine     0.018
  Request    0.032
  Specify    0.043
  Verify     0.077

  Initial probabilities:
  Specify       0.679  ████████████████████████████████████████
  Command       0.175  ██████████
  Request       0.055  ███
  Interrupt     0.030  ██
  Correct       0.019  █
  Refine        0.019  █
  Frustrate     0.013  █
  Inquire       0.008
  Verify        0.002

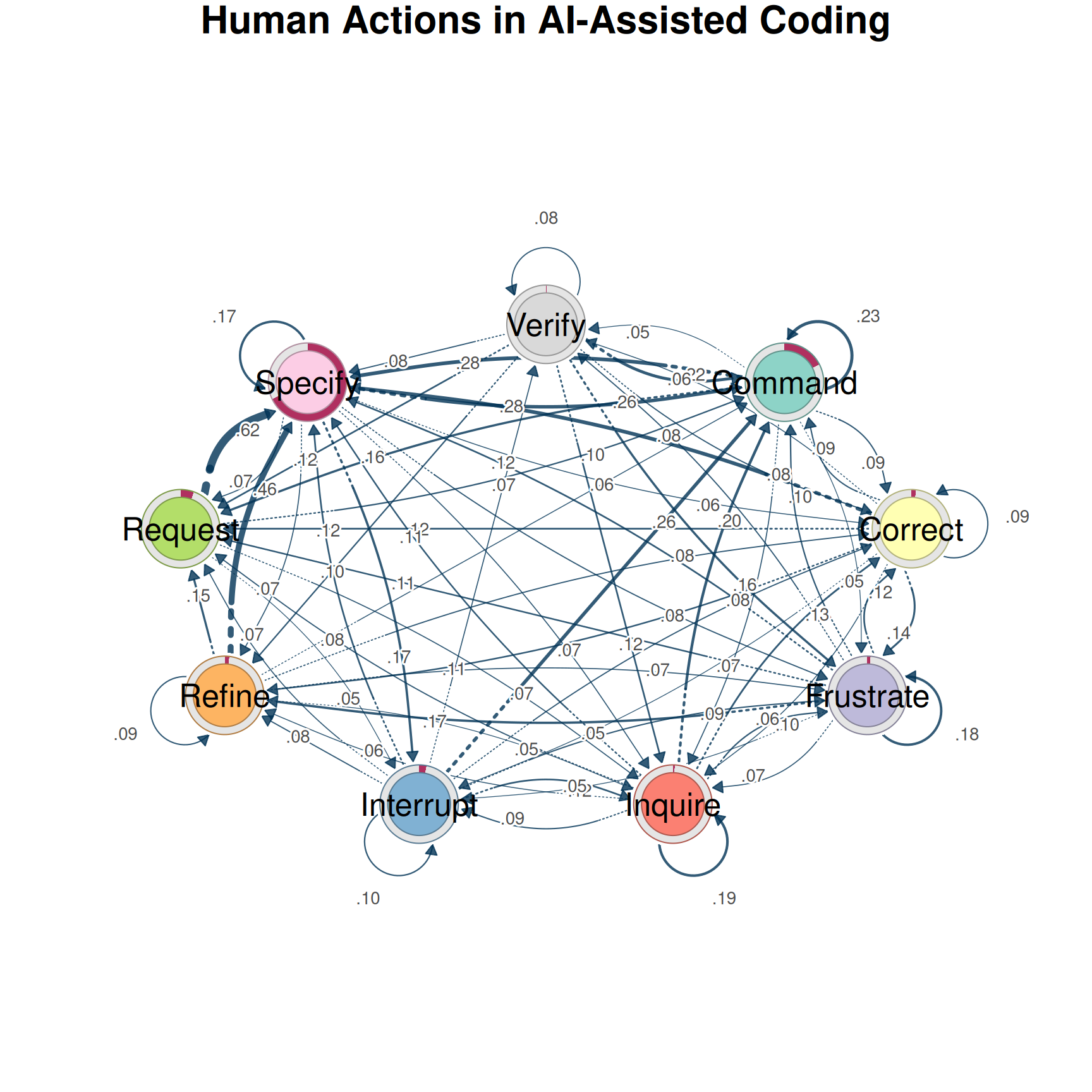

splot(net, minimum = 0.05, title = "Human Actions in AI-Assisted Coding")

Several patterns stand out: Specify is the hub — most actions lead to and from it. Self-loops on Specify and Command indicate persistence. The Request → Specify → Command backbone reflects the natural workflow. But this first-order view might be hiding important patterns. Does it matter how someone arrived at Specify?

Is First-Order Enough? Multi-Order Model Selection

Before investing in higher-order analysis, we should answer: does sequential memory actually matter? The Multi-Order Generative Model (MOGen; Scholtes 2017) fits Markov models at increasing orders and compares them using information criteria. Higher-order models fit better but have exponentially more parameters — AIC and BIC find the best tradeoff.

mg <- build_mogen(net, max_order = 4)
summary(mg)

Multi-Order Generative Model (MOGen) Summary

  States: Command, Correct, Frustrate, Inquire, Interrupt, Refine, Request, Specify, Verify
  Paths: 508 | Observations: 10778

 order layer_dof cum_dof    loglik      aic      bic selected
     0         8       8 -22001.20 44018.40 44076.68
     1        72      80 -20805.61 41771.23 42354.05
     2       621     701 -19819.55 41041.10 46148.07
     3      2445    3146 -17152.10 40596.20 63515.63
     4      2990    6136 -11469.73 35211.46 79913.83      <--

  Optimal order: 4 (by aic)

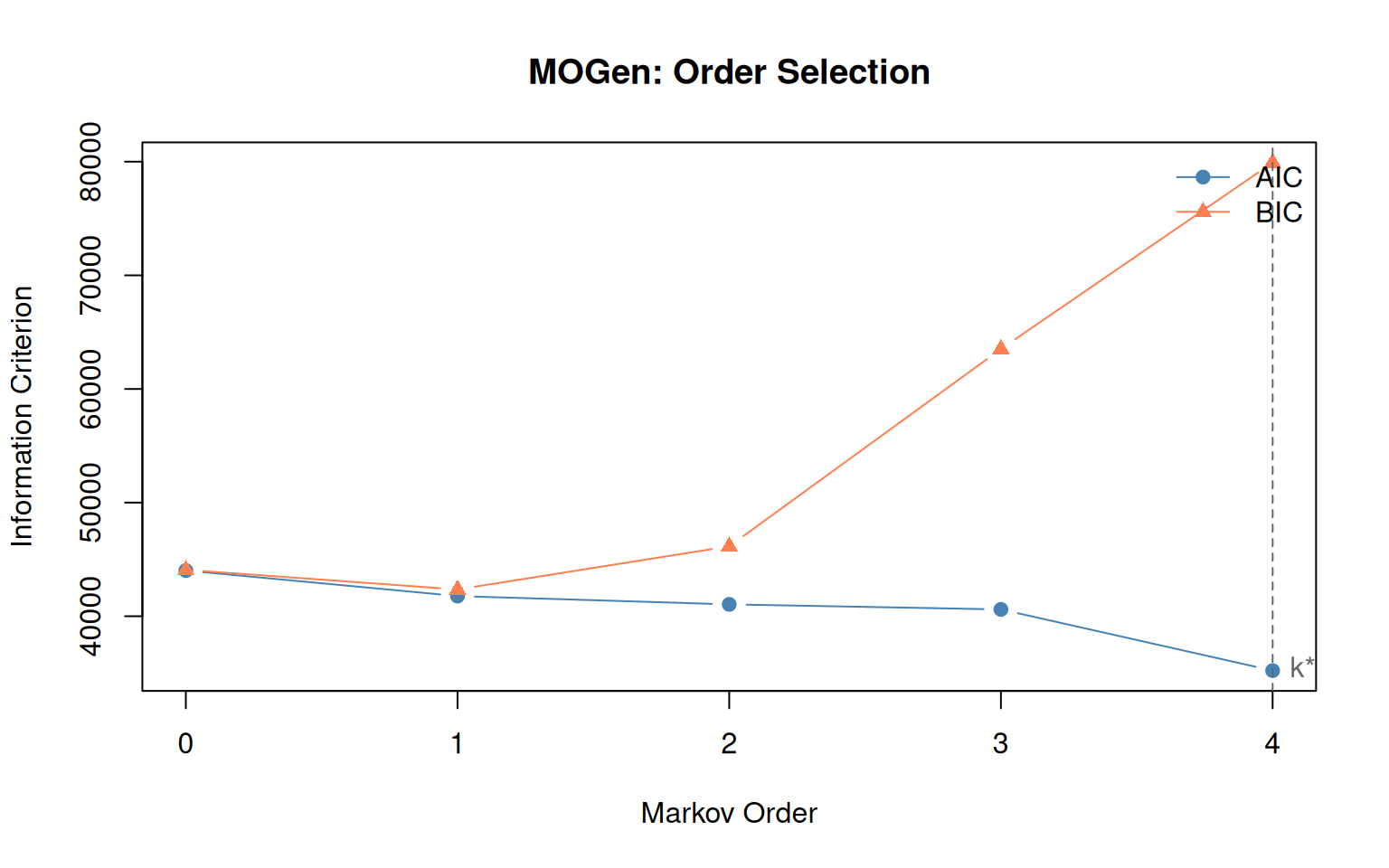

plot(mg)

Interpreting the results

Order 0: Actions are independent — no sequential structure.
Order 1: The standard Markov model is sufficient.
Order 2+: Higher-order dependencies exist. A first-order TNA would miss them.

Even when order 1 is globally optimal (by BIC), specific pathways may still exhibit higher-order behavior — the global model averages over all states. The HON analysis below detects these local patterns.

Second-order transition matrix

mogen_transitions() extracts the transitions at a given order, showing which two-step contexts lead to different outcomes:

mt <- mogen_transitions(mg, order = 2)
mt[1:8, ]

                             path count probability               from
1   Specify -> Command -> Specify   281      0.3914 Specify -> Command
2   Command -> Request -> Specify   228      0.7782 Command -> Request
3   Specify -> Command -> Request   198      0.2758 Specify -> Command
4 Request -> Specify -> Interrupt   187      0.3264 Request -> Specify
5   Command -> Command -> Command   163      0.3800 Command -> Command
6 Command -> Specify -> Interrupt   148      0.2792 Command -> Specify
7   Specify -> Request -> Specify   124      0.6526 Specify -> Request
8    Specify -> Refine -> Specify   122      0.6010  Specify -> Refine
         to
1   Specify
2   Specify
3   Request
4 Interrupt
5   Command
6 Interrupt
7   Specify
8   Specify

Each row is a second-order pathway: the from column shows the two-state context, to is the predicted next state, and probability is the conditional probability given that context.

Higher-Order Networks (HON)

While MOGen tells us whether higher-order dependencies exist on average, the Higher-Order Network (HON; Xu et al. 2016) tells us where. HON tests, for each state, whether adding context significantly changes the outgoing transition distribution using KL-divergence. If the distribution after Request → Specify differs from Frustrate → Specify, HON creates separate nodes for these contexts.

hon <- build_hon(net)
hon

Higher-Order Network (HON)
  Nodes:        977 (9 first-order states)
  Edges:        3733
  Max order:    5 (requested 5)
  Min freq:     1
  Trajectories: 508

ho_edges <- hon$ho_edges[hon$ho_edges$from_order > 1, ]
ho_top <- ho_edges[order(-ho_edges$count), ]
ho_top[1:min(10, nrow(ho_top)), ]

                                           path                          from
2851              Specify -> Command -> Specify            Specify -> Command
322               Command -> Request -> Specify            Command -> Request
2850              Specify -> Command -> Request            Specify -> Command
2720            Request -> Specify -> Interrupt            Request -> Specify
2906   Specify -> Command -> Request -> Specify Specify -> Command -> Request
10                Command -> Command -> Command            Command -> Command
379             Command -> Specify -> Interrupt            Command -> Specify
352  Command -> Request -> Specify -> Interrupt Command -> Request -> Specify
2916 Specify -> Command -> Specify -> Interrupt Specify -> Command -> Specify
3253              Specify -> Request -> Specify            Specify -> Request
            to count probability from_order to_order
2851   Specify   281   0.3913649          2        3
322    Specify   228   0.7781570          2        3
2850   Request   198   0.2757660          2        3
2720 Interrupt   187   0.3263525          2        3
2906   Specify   180   0.9137056          3        3
10     Command   163   0.3799534          2        3
379  Interrupt   148   0.2792453          2        3
352  Interrupt   135   0.6192661          3        3
2916 Interrupt   124   0.4476534          3        3
3253   Specify   124   0.6526316          2        2

Many of the total edges are higher-order — transitions where the preceding context changes the outcome. Look for pathways where the higher-order probability differs substantially from the first-order probability — these represent genuine contextual effects.

Raw path frequencies

The most common 3-step sequences regardless of statistical significance:

path_counts(net, k = 3, top = 15)

                              path count proportion
1    Specify -> Command -> Specify   281     0.0288
2    Command -> Request -> Specify   228     0.0234
3    Specify -> Command -> Request   198     0.0203
4  Request -> Specify -> Interrupt   187     0.0192
5    Command -> Command -> Command   163     0.0167
6  Command -> Specify -> Interrupt   148     0.0152
7    Specify -> Request -> Specify   124     0.0127
8     Specify -> Refine -> Specify   122     0.0125
9    Specify -> Specify -> Specify   121     0.0124
10 Specify -> Interrupt -> Command   109     0.0112
11   Command -> Specify -> Command   106     0.0109
12   Request -> Specify -> Specify    94     0.0096
13   Specify -> Command -> Command    93     0.0095
14   Command -> Specify -> Specify    76     0.0078
15   Specify -> Specify -> Command    76     0.0078

Path Anomaly Detection (HYPA)

HON detects where higher-order structure exists. HYPA (LaRock et al. 2020) takes a complementary approach: it detects which specific paths occur significantly more or less often than expected under a null model.

HYPA constructs a De Bruijn graph and computes expected path frequencies using a multi-hypergeometric null model. Paths that deviate significantly are flagged:

Over-represented paths: These sequences occur far more often than chance predicts. They represent learned behavioral routines.
Under-represented paths: Systematically avoided combinations — sequences that are socially inappropriate, cognitively difficult, or practically ineffective.

hypa <- build_hypa(net)

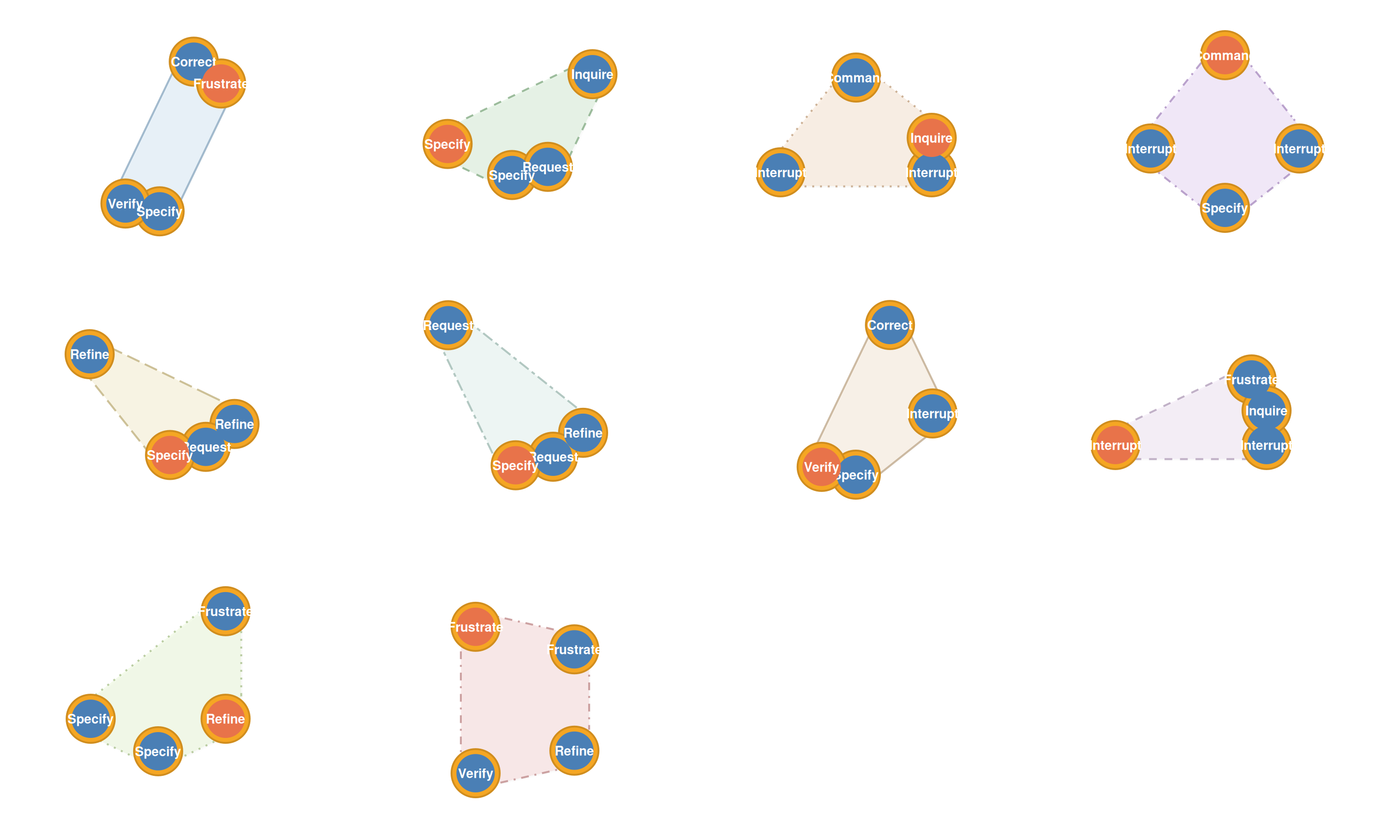

plot_simplicial(hypa, dismantled = TRUE)

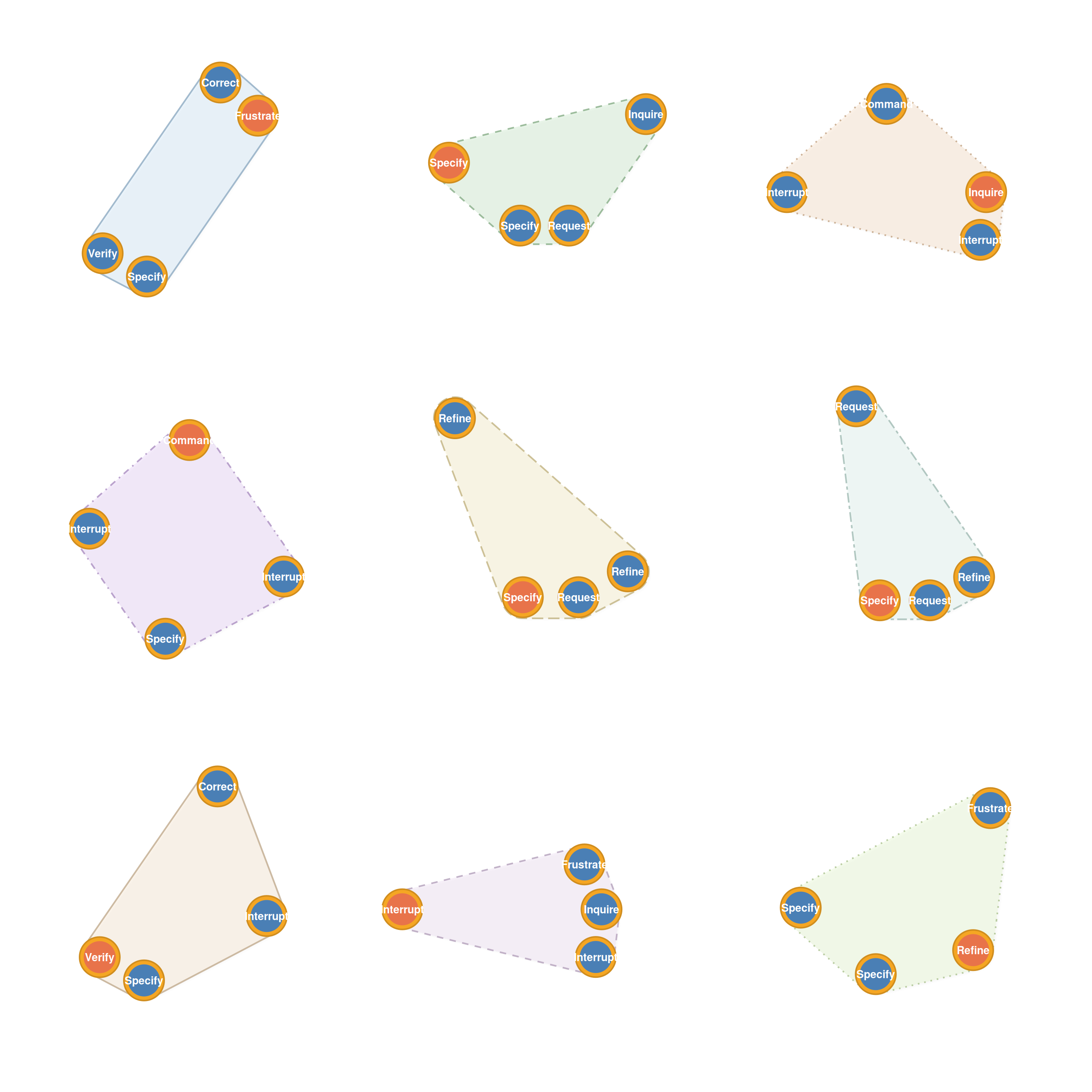

Over-represented pathways

Learned routines — sequences that occur far more than expected. plot_simplicial() accepts HYPA objects directly with the anomaly parameter to filter:

plot_simplicial(hypa, anomaly = "over", max_pathways = 9,
                dismantled = TRUE, ncol = 3)

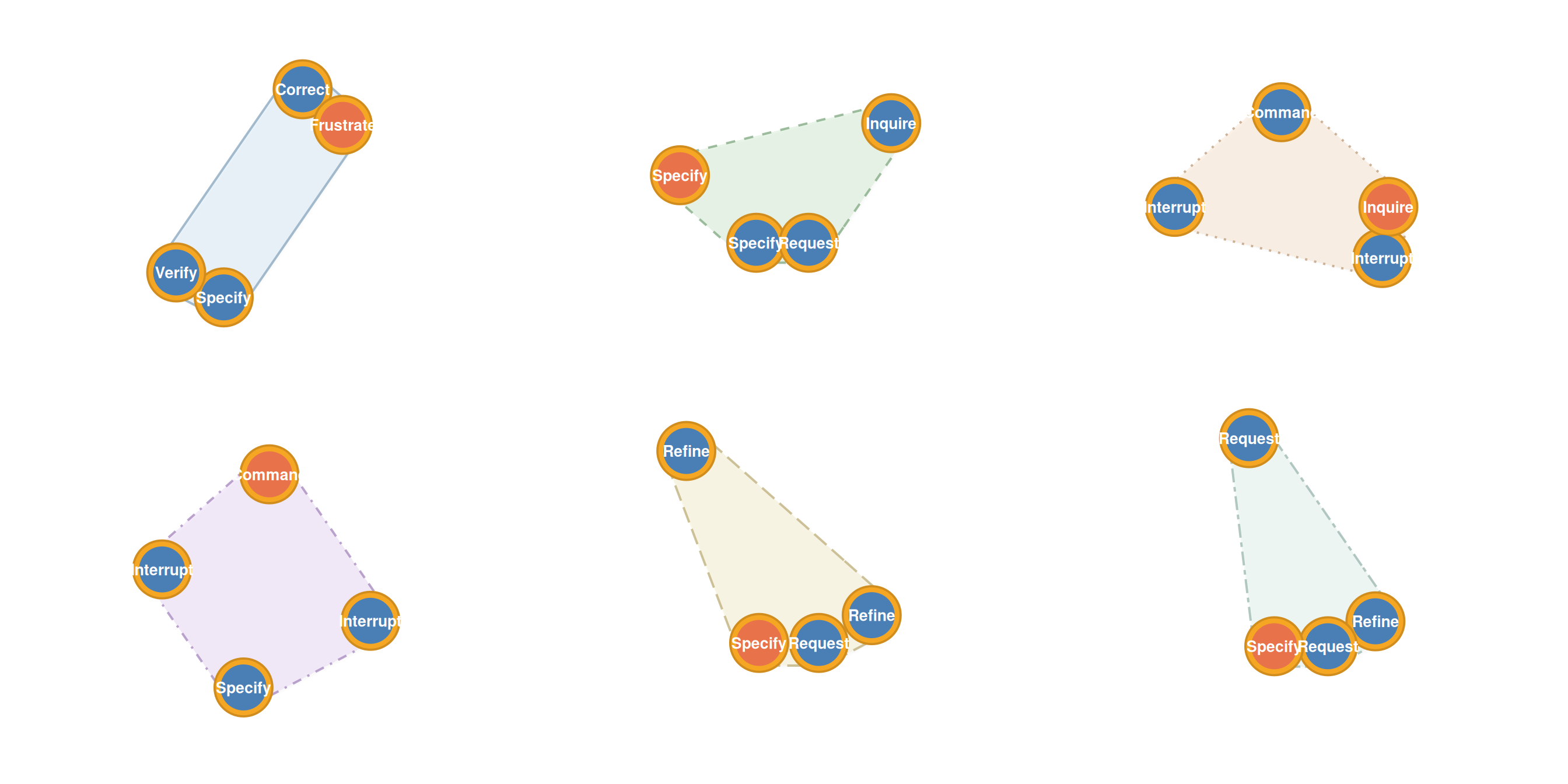

Under-represented pathways

Avoided sequences:

plot_simplicial(hypa, anomaly = "under", max_pathways = 6,
                dismantled = TRUE, ncol = 3)

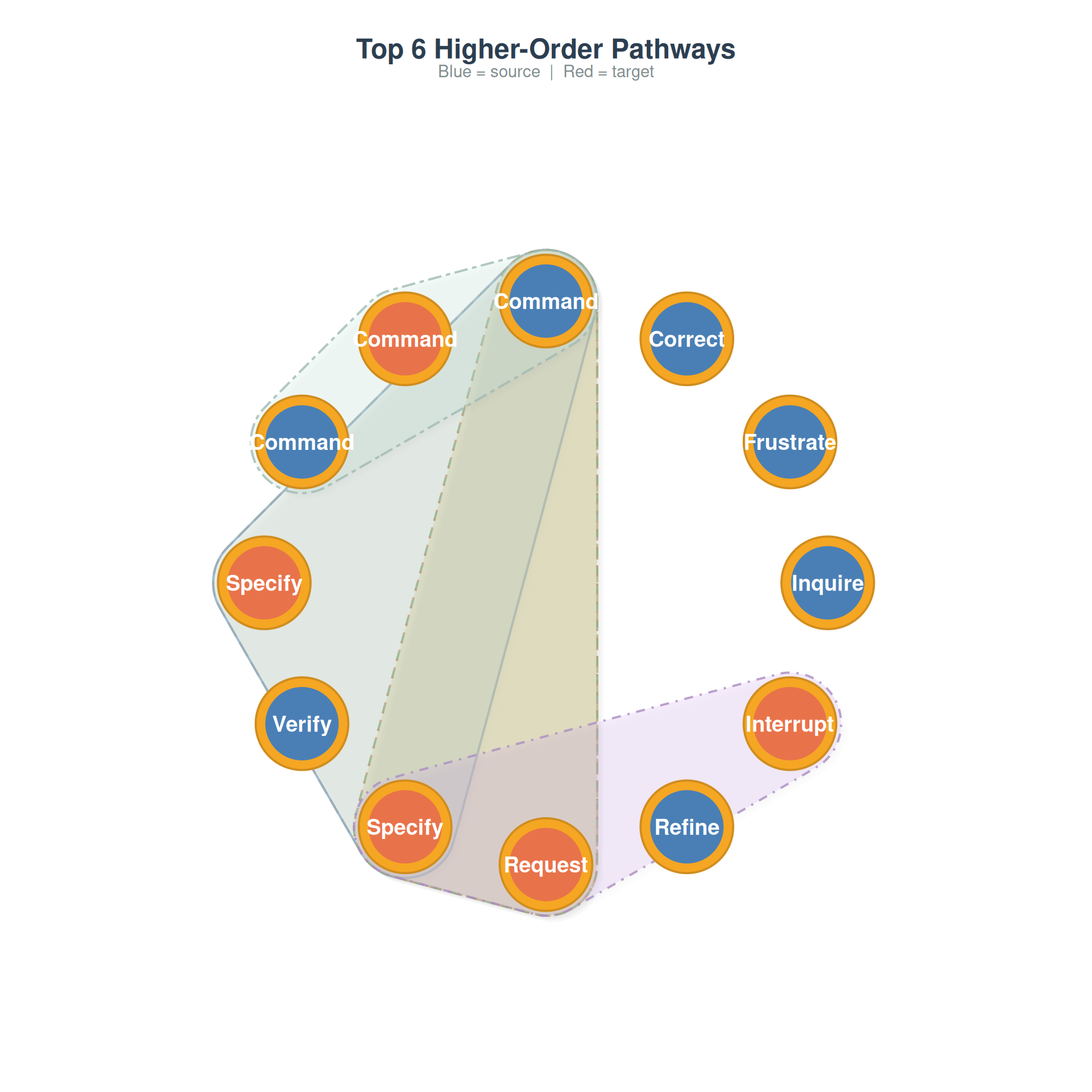

Combined overlay

Multiple pathways on a single plot — overlapping regions indicate states that participate in many higher-order patterns:

plot_simplicial(net, max_pathways = 6,
                title = "Top 6 Higher-Order Pathways")

Higher-Order Analysis Across Groups

A powerful application is comparing higher-order structure across conditions. We build grouped networks by superclass (Directive, Evaluative, Metacognitive) and run HYPA on each:

grp_net <- build_network(human_long, method = "relative",
                         action = "code", actor = "session_id",
                         time = "timestamp", group = "cluster")

hypa_results <- lapply(names(grp_net), function(nm) {
  h <- build_hypa(grp_net[[nm]])
  data.frame(
    group = nm,
    total_edges = h$n_edges,
    anomalous = h$n_anomalous,
    over = h$n_over,
    under = h$n_under,
    pct_anomalous = round(100 * h$n_anomalous / h$n_edges, 1)
  )
})
do.call(rbind, hypa_results)

          group total_edges anomalous over under pct_anomalous
1     Directive          80        39   31     8          48.8
2 Metacognitive          16        12    9     3          75.0
3    Evaluative         256        21   19     2           8.2

Groups with a higher percentage of anomalous pathways have more higher-order structure — their sequential dynamics are less predictable from first-order transitions alone.

par(mfrow = c(1, 2))

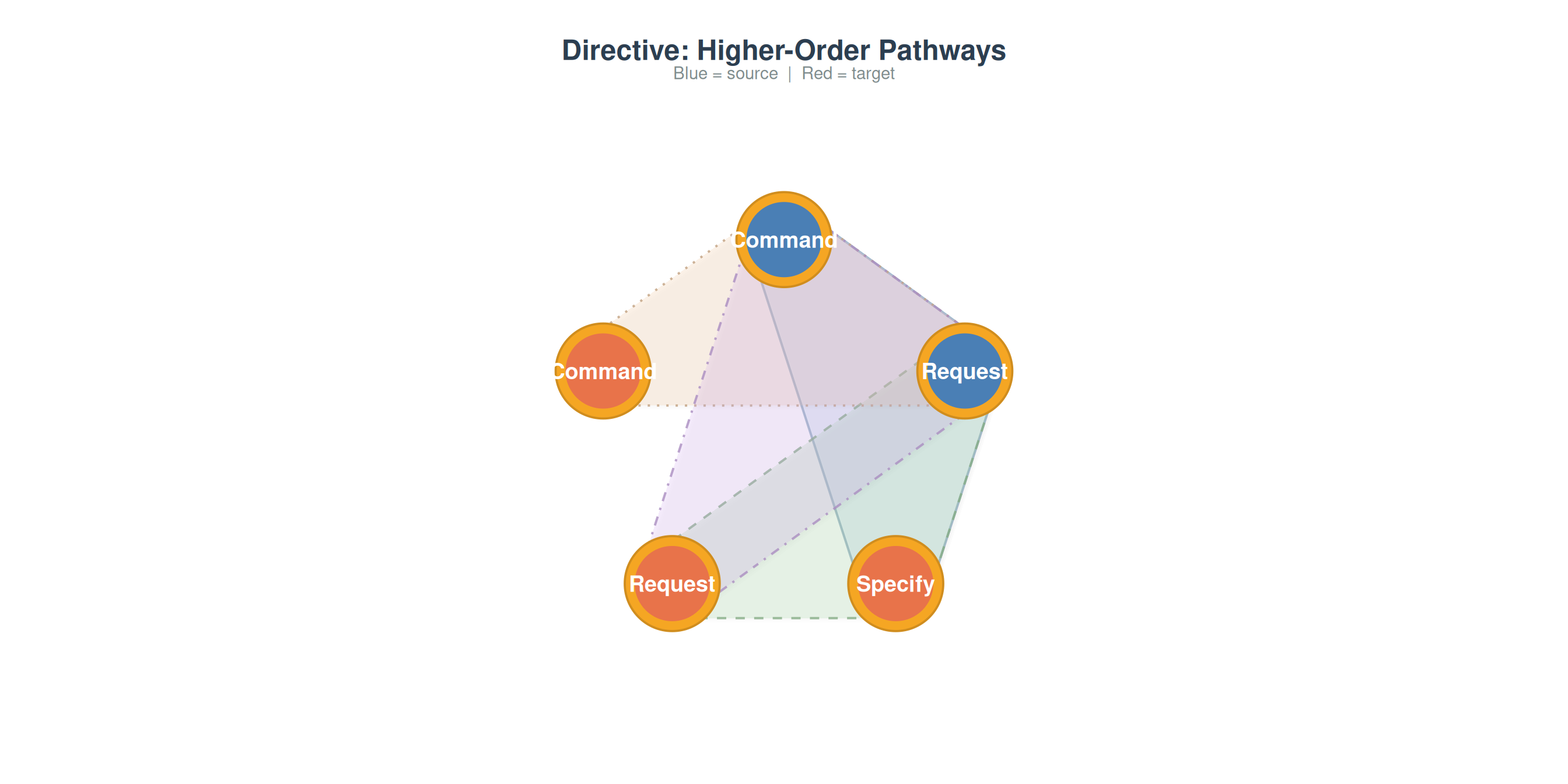

plot_simplicial(grp_net$Directive, max_pathways = 4,
                title = "Directive: Higher-Order Pathways")

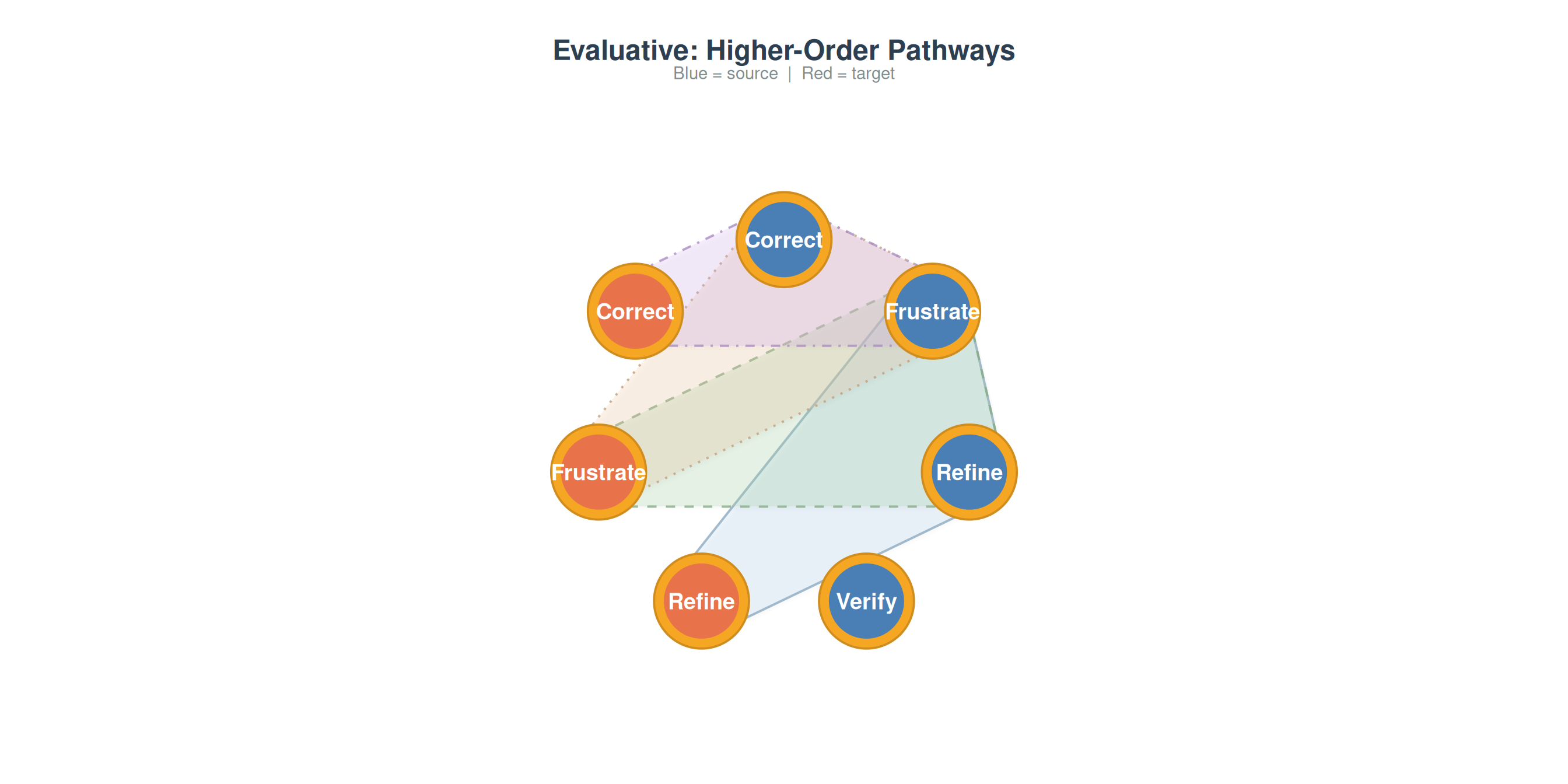

plot_simplicial(grp_net$Evaluative, max_pathways = 4,
                title = "Evaluative: Higher-Order Pathways")

Comparing Datasets

Higher-order analysis is particularly informative when applied to different datasets. Here we compare the human-AI coding data with a collaborative regulation dataset:

data("group_regulation_long", package = "Nestimate")
net_reg <- build_network(group_regulation_long, method = "relative",
                         action = "Action", actor = "Actor")

hypa_coding <- build_hypa(net)
hypa_reg <- build_hypa(net_reg)

comparison <- data.frame(
  dataset = c("Human-AI Coding", "Collaborative Regulation"),
  nodes = c(net$n_nodes, net_reg$n_nodes),
  total_paths = c(hypa_coding$n_edges, hypa_reg$n_edges),
  anomalous = c(hypa_coding$n_anomalous, hypa_reg$n_anomalous),
  over = c(hypa_coding$n_over, hypa_reg$n_over),
  under = c(hypa_coding$n_under, hypa_reg$n_under)
)
comparison

                   dataset nodes total_paths anomalous over under
1          Human-AI Coding     9        3138       181  139    42
2 Collaborative Regulation     9        2584       600  524    76

par(mfrow = c(1, 2))

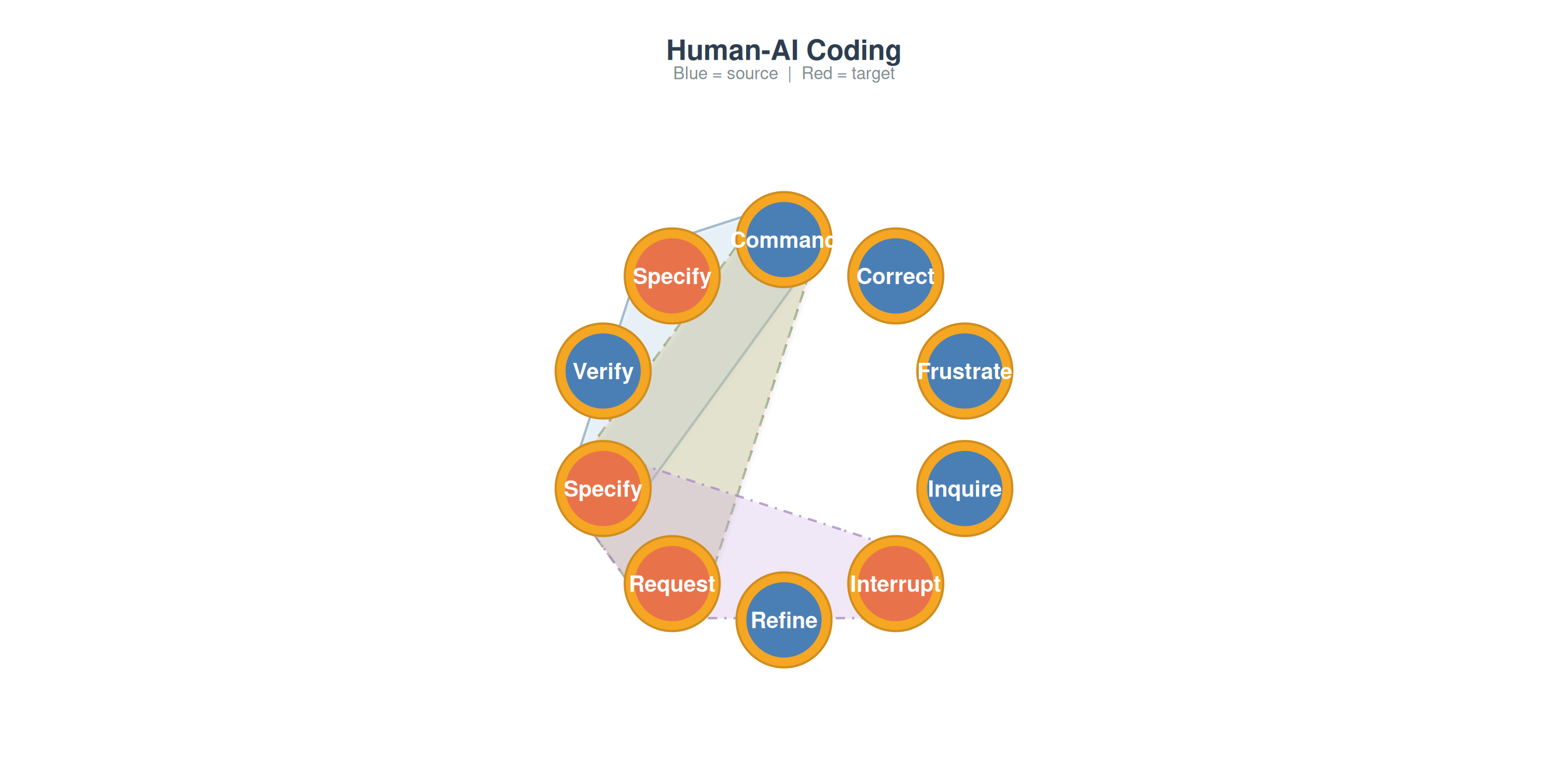

plot_simplicial(net, max_pathways = 4,
                title = "Human-AI Coding")

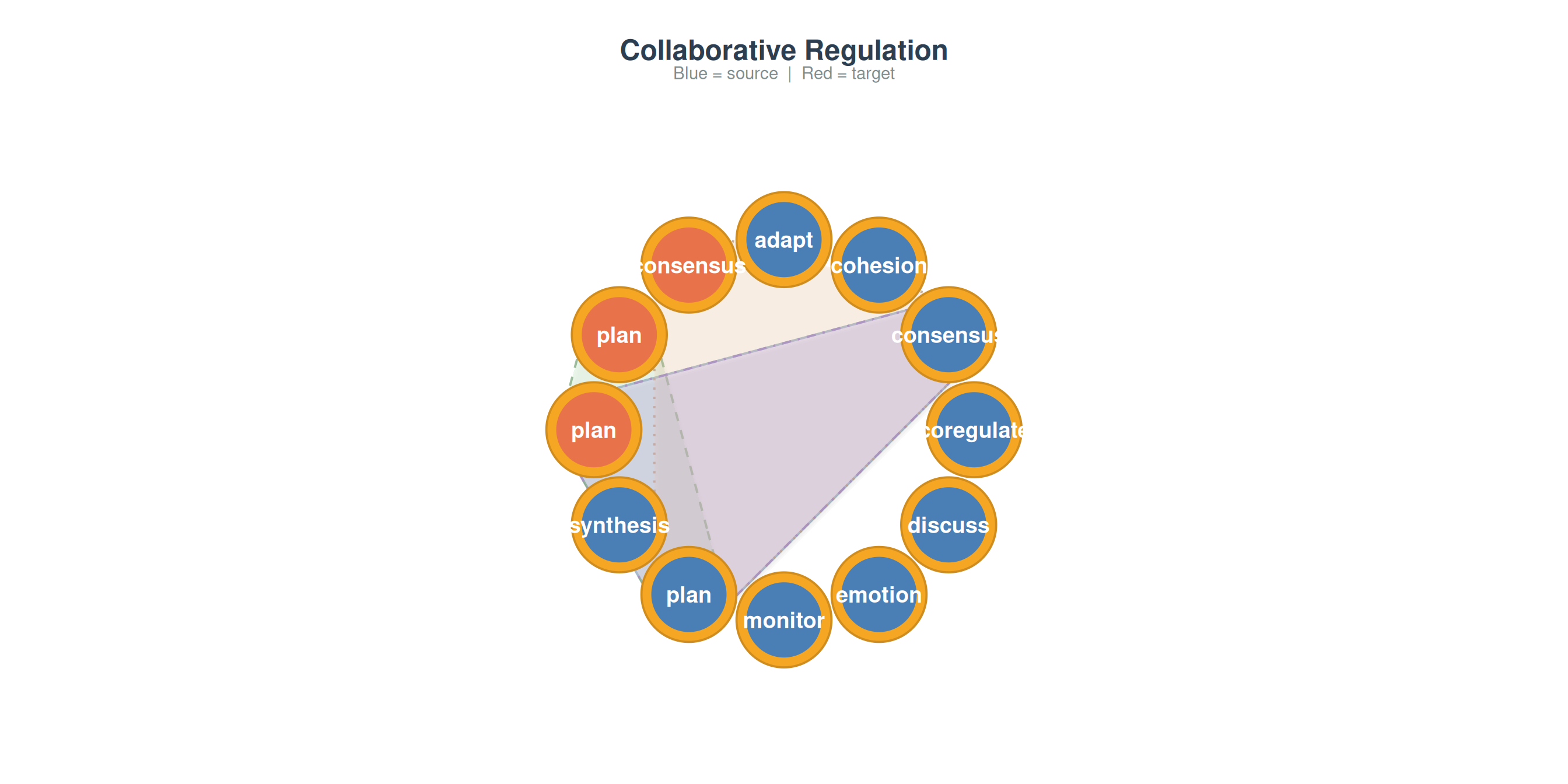

plot_simplicial(net_reg, max_pathways = 4,
                title = "Collaborative Regulation")

Different domains produce different higher-order signatures. Comparing these reveals whether sequential memory is a universal property of the behavioral system or specific to particular tasks.

Simplicial Complex Analysis

All the methods above analyze sequential pathways. Simplicial complex analysis takes a different perspective: it examines the topological structure of the network itself.

What is a simplicial complex?

A standard network captures pairwise relationships: node A connects to node B. But many interactions involve groups: states A, B, and C may all be densely interconnected, forming a triangle. A simplicial complex formalizes this:

A 0-simplex is a single node
A 1-simplex is an edge (two connected nodes)
A 2-simplex is a filled triangle (three mutually connected nodes)
A $k$ -simplex is a group of $k+1$ mutually connected nodes

The clique complex turns every clique into a simplex, lifting a flat graph into a multi-dimensional topological object.

Building the complex

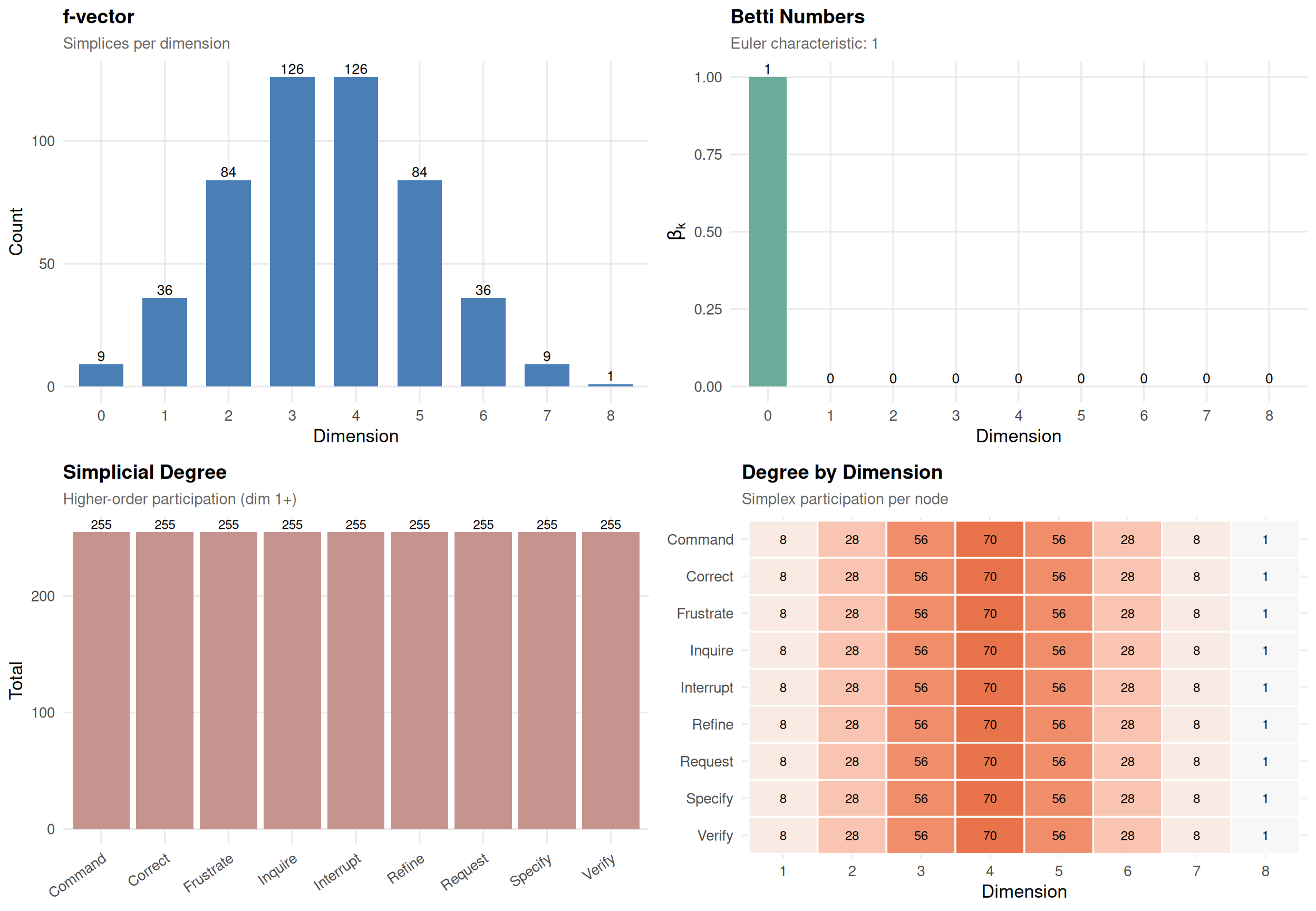

sc <- build_simplicial(net, threshold = 0.05)
sc

Clique Complex
  9 nodes, 511 simplices, dimension 8
  Density: 100.0%  |  Mean dim: 3.51  |  Euler: 1
  f-vector: (f0=9 f1=36 f2=84 f3=126 f4=126 f5=84 f6=36 f7=9 f8=1)
  Betti: b0=1
  Nodes: Command, Correct, Frustrate, Inquire, Interrupt, Refine, Request, Specify, Verify

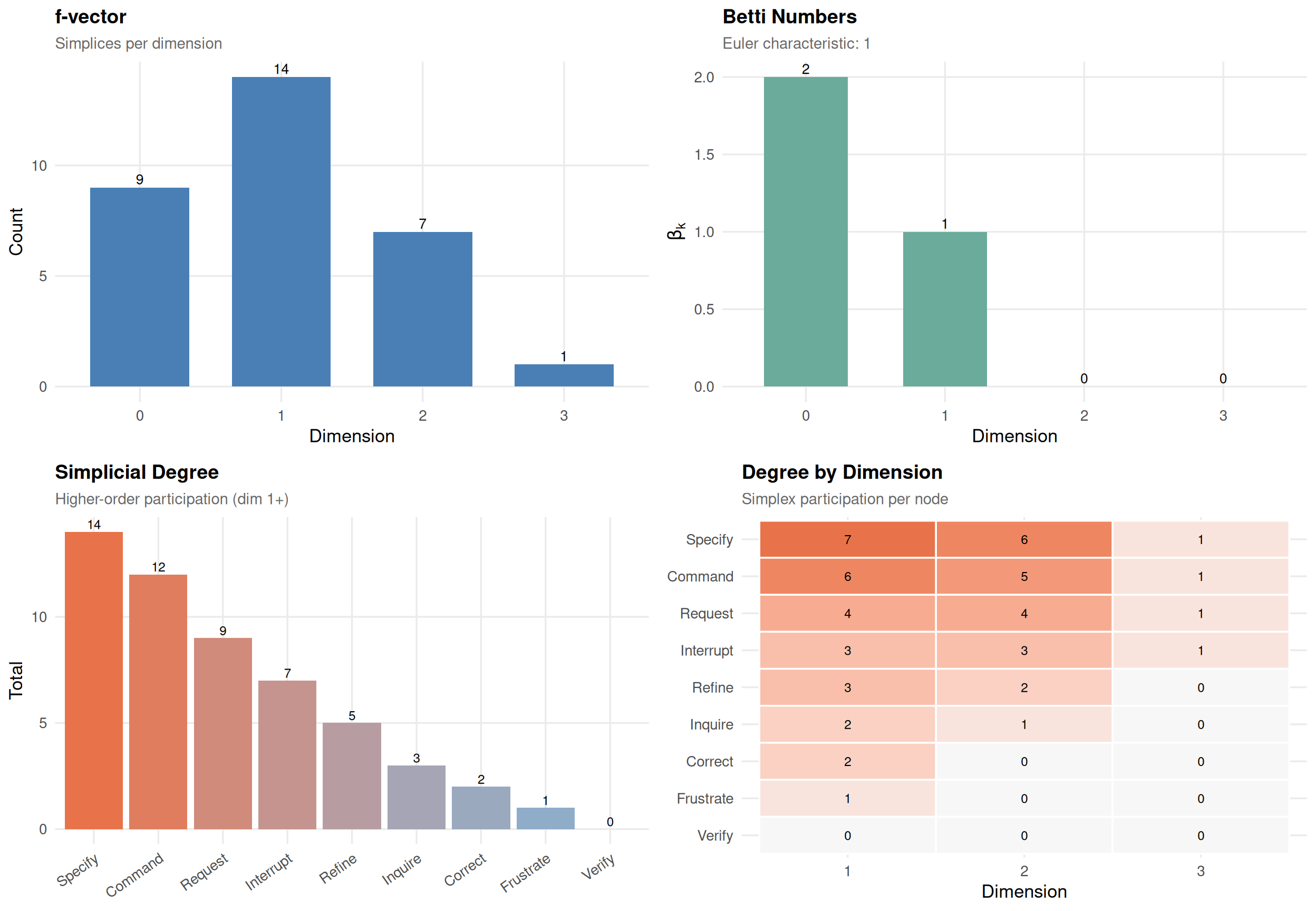

Topological descriptors

f-vector $(f_0, f_1, f_2, \ldots)$ : counts simplices at each dimension.
Betti numbers $(\beta_0, \beta_1, \beta_2, \ldots)$ : the central invariants. $\beta_0$ = connected components, $\beta_1$ = independent loops, $\beta_2$ = enclosed voids.
Euler characteristic $\chi = \sum (-1)^k f_k = \sum (-1)^k \beta_k$ . For a contractible complex, $\chi = 1$ .
Simplicial degree: how many higher-dimensional simplices each node participates in.

simplicial_degree(sc)

       node d0 d1 d2 d3 d4 d5 d6 d7 d8 total
1   Command  1  8 28 56 70 56 28  8  1   255
2   Correct  1  8 28 56 70 56 28  8  1   255
3 Frustrate  1  8 28 56 70 56 28  8  1   255
4   Inquire  1  8 28 56 70 56 28  8  1   255
5 Interrupt  1  8 28 56 70 56 28  8  1   255
6    Refine  1  8 28 56 70 56 28  8  1   255
7   Request  1  8 28 56 70 56 28  8  1   255
8   Specify  1  8 28 56 70 56 28  8  1   255
9    Verify  1  8 28 56 70 56 28  8  1   255

plot(sc)

Nodes with high simplicial degree are topological hubs — they participate in many group interactions. This captures group-level importance that pairwise degree misses.

Persistent Homology

A single complex at one threshold gives a static snapshot. Persistent homology reveals how topology evolves as we vary the threshold. Start with only the strongest edges and progressively add weaker ones. Features that persist across a wide range are topologically robust.

ph <- persistent_homology(net, n_steps = 25)
ph

Persistent Homology
  25 filtration steps [0.6197 → 0.0062]
  Features: b0: 9 (1 persistent)  |  b1: 2 (0 persistent)  |  b3: 70 (70 persistent)
  Longest-lived:
    b0: 0.6197 → 0.0000 (life: 0.6197)
    b0: 0.6197 → 0.1596 (life: 0.4601)
    b0: 0.6197 → 0.1851 (life: 0.4346)

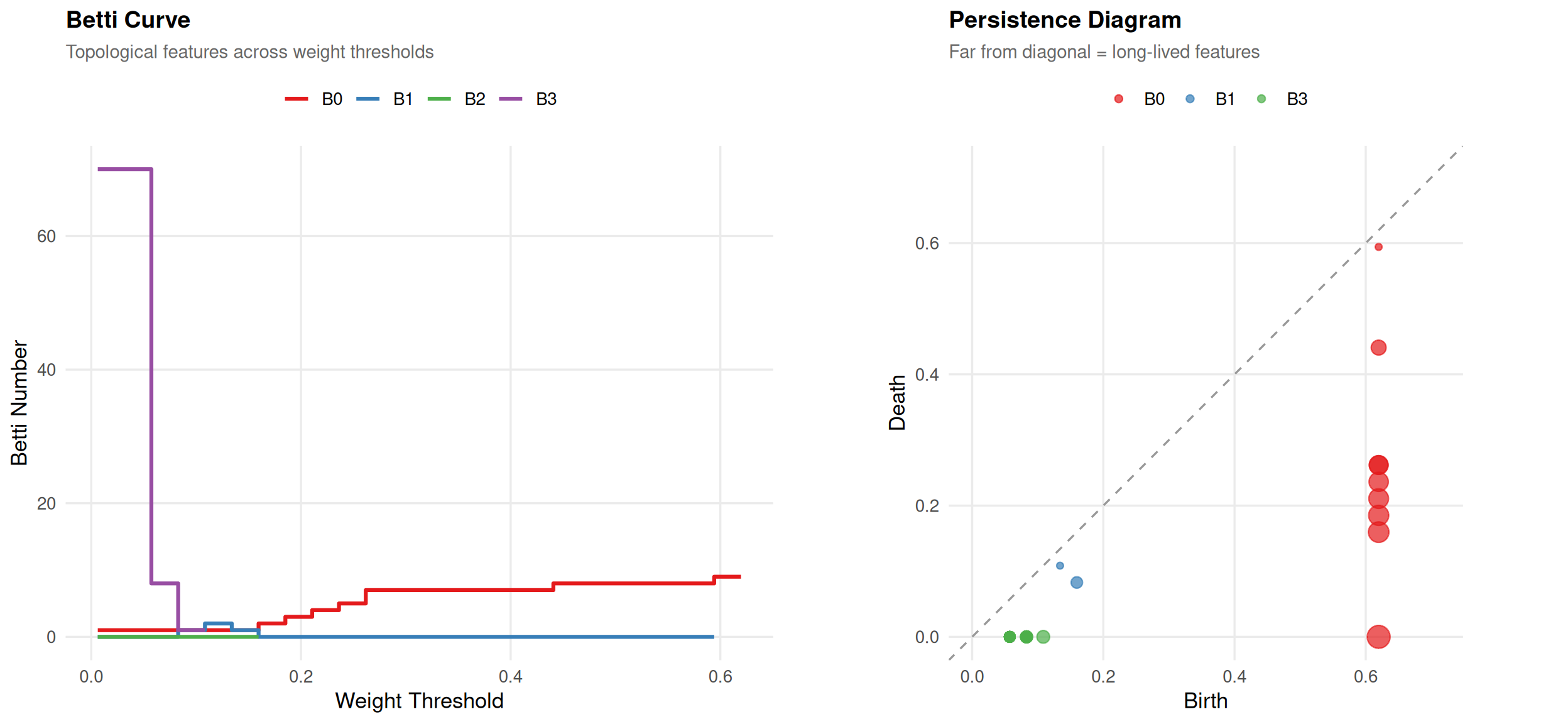

plot(ph)

Betti curve (left): At high threshold, the network is sparse (many components). As threshold decreases, components merge ( $\beta_0$ drops) and loops may form ( $\beta_1$ rises) then get filled.

Persistence diagram (right): Points far from the diagonal have long lifetimes — structurally important features. Points near the diagonal are noise.

Q-Analysis

Q-analysis (Atkin 1974) measures connectivity at multiple levels of structural sharing. Two maximal simplices are q-connected if they share a face of dimension $\geq q$ :

q = 0: share at least one node
q = 1: share at least one edge
q = 2: share at least one triangle

qa <- q_analysis(sc)
qa

Q-Analysis (max q = 8)
  Components: q8:1 q7:1 q6:1 q5:1 q4:1 q3:1 q2:1 q1:1 q0:1
  Fully connected at all q levels
  Structure: Command:8 Correct:8 Frustrate:8 Inquire:8 Interrupt:8 Refine:8 Request:8 Specify:8 Verify:8

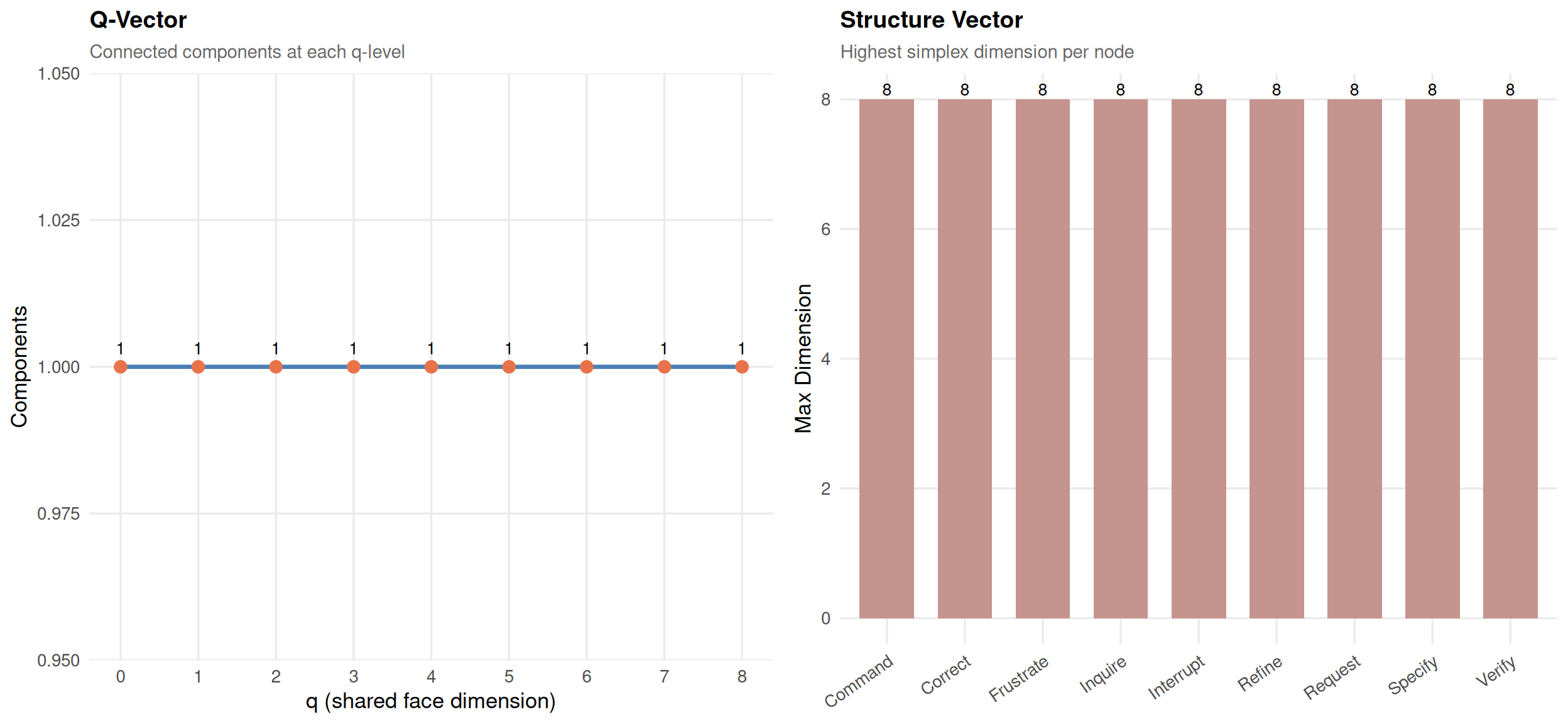

plot(qa)

The fragmentation point (first q where components > 1) is critical. Below it, the network is fully connected through shared sub-structures. Above it, parts become structurally isolated.

Pathway Complex from HON

An alternative to the clique complex: build a simplicial complex from the pathways discovered by HON — topology derived from sequential dynamics rather than network structure:

sc_hon <- build_simplicial(hon, type = "pathway", max_pathways = 30)
sc_hon

Pathway Complex
  9 nodes, 31 simplices, dimension 3
  Density: 12.2%  |  Mean dim: 1.00  |  Euler: 1
  f-vector: (f0=9 f1=14 f2=7 f3=1)
  Betti: b0=2 b1=1
  Nodes: Command, Correct, Frustrate, Inquire, Interrupt, Refine, Request, Specify, Verify

plot(sc_hon)

In the pathway complex, each higher-order pathway becomes a simplex. $\beta_0 > 1$ means some states are sequentially disconnected. $\beta_1 > 0$ means there are cyclic pathway structures.

Verification

All simplicial computations are cross-validated against igraph’s clique-finding and verified via the Euler-Poincaré theorem:

verify_simplicial(net$weights, threshold = 0.05)

  Cliques:  MATCH (511 simplices)
  Betti:    b0=1 b1=0 b2=0 b3=0 b4=0 b5=0 b6=0 b7=0 b8=0
  Euler:    1 (Euler-Poincare: VERIFIED)

Summary

Step	Method	Function	What it reveals
1	TNA	`build_network()`	First-order transition structure
2	MOGen	`build_mogen()`	Whether higher-order is needed
3	HON	`build_hon()`	Where sequential context changes transitions
4	HYPA	`build_hypa()`	Which paths are anomalously frequent or rare
5	Visualization	`plot_simplicial()`	Blob diagrams of pathways
6	Simplicial	`build_simplicial()`	Topological structure
7	Persistence	`persistent_homology()`	Robustness across scales
8	Q-analysis	`q_analysis()`	Multi-level connectivity

The key progression:

TNA answers: what transitions exist?
MOGen answers: is first-order enough?
HON answers: where does context matter?
HYPA answers: which sequences are surprising?
Simplicial analysis answers: what is the shape of the interaction space?

References

Atkin, R. H. (1974). Mathematical Structure in Human Affairs. Heinemann Educational.
Battiston, F., et al. (2020). Networks beyond pairwise interactions: Structure and dynamics. Physics Reports, 874, 1–92.
LaRock, T., Scholtes, I., & Eliassi-Rad, T. (2020). HYPA: Efficient detection of path anomalies in time series data on networks. EPJ Data Science, 9(1), 15.
Scholtes, I. (2017). When is a network a network? Multi-order graphical model selection in pathways and temporal networks. Proceedings of the 23rd ACM SIGKDD International Conference on Knowledge Discovery and Data Mining, 1037–1046.
Xu, J., Wickramarathne, T. L., & Chawla, N. V. (2016). Representing higher-order dependencies in networks. Science Advances, 2(5), e1600028.
