Plot a Multilevel Nestimate netobject — plot_netobject_ml • cograph

Creates a side-by-side plot for a netobject_ml object, showing the between-person and within-person networks.

Usage

plot_netobject_ml(
  x,
  layout = NULL,
  common_scale = TRUE,
  titles = c("Between-person", "Within-person"),
  ...
)

# S3 method for class 'netobject_ml'
plot(x, ...)

Arguments

x: A netobject_ml object with $between and $within networks.
layout: Character: layout algorithm. Default "oval" (deterministic).
common_scale: Logical: use the same maximum weight for both panels? Default TRUE.
titles: Character vector of length 2: panel titles. Default c("Between-person", "Within-person").
...: Additional arguments passed to splot().

Value

Invisibly returns x.

Examples

mat <- matrix(c(0, .5, .3, .5, 0, .4, .3, .4, 0), 3, 3)
colnames(mat) <- rownames(mat) <- c("A", "B", "C")
btw <- as_cograph(mat)
wth <- as_cograph(mat * 0.6)
ml <- structure(list(between = btw, within = wth), class = c("netobject_ml", "list"))

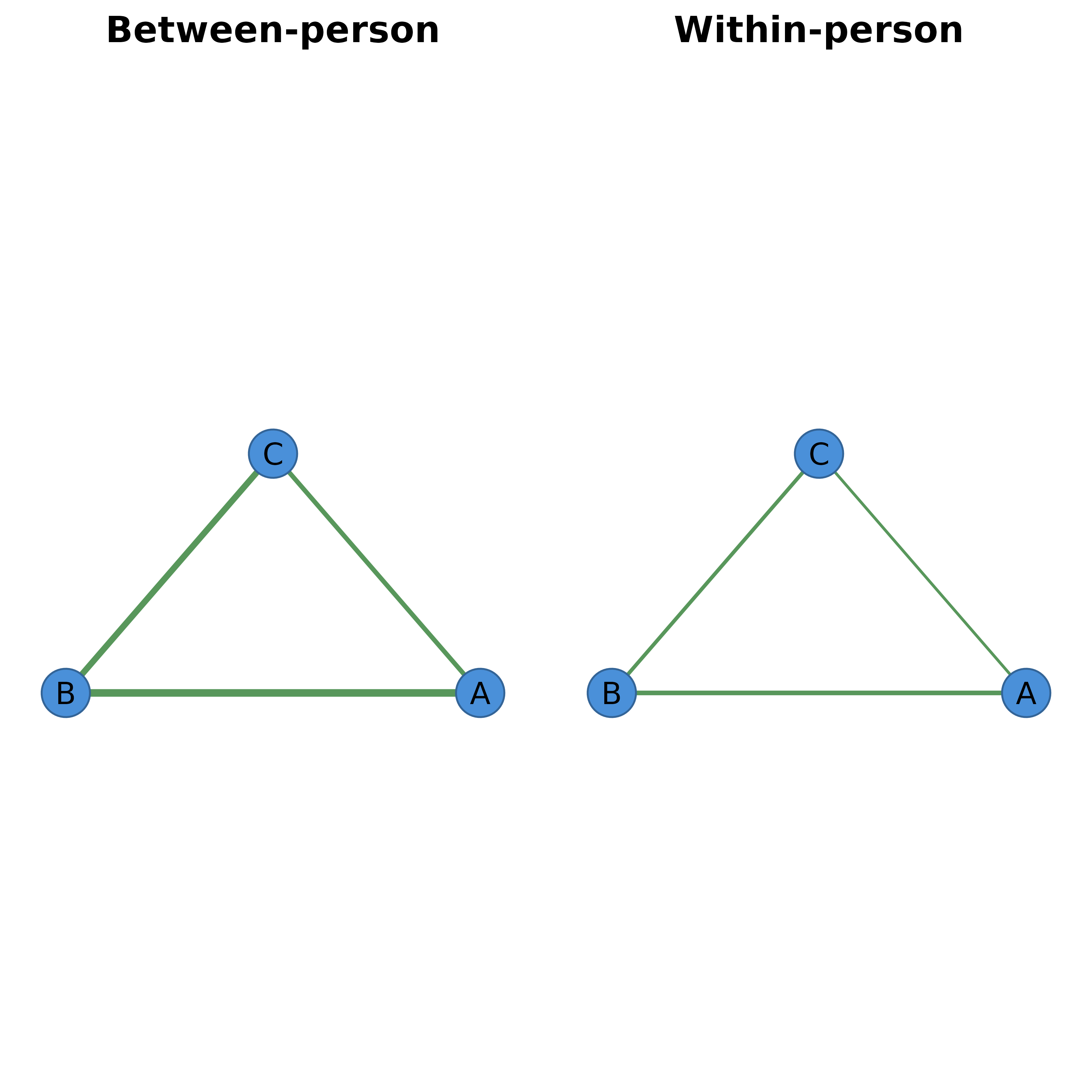

plot_netobject_ml(ml)
