Configure a custom multi-panel layout

Sets up a multi-panel device layout for use with cograph plotting functions called with combined = FALSE. Returns a par() snapshot of the previous device state so the caller can restore it via on.exit(graphics::par(old_par)).

Usage

panel_layout(spec, mar = c(2, 2, 3, 1), widths = NULL, heights = NULL)

Arguments

spec

Either a length-2 integer vector c(nrow, ncol) for a uniform grid, or a numeric matrix of panel positions to pass to graphics::layout().

mar

Numeric vector of length 4 giving panel margins. Default c(2, 2, 3, 1) matches cograph's multi-panel margin convention.

widths, heights

Optional numeric vectors of column widths and row heights. Only valid when spec is a matrix; passed straight to graphics::layout(). Supplying them with a uniform-grid spec is an error, since par(mfrow=...) has no widths/heights concept.

Value

Invisibly returns a list of previous par() settings that can be passed back to graphics::par() to restore the prior device state. For both spec shapes the snapshot includes mfrow, so par(old_par) also resets any graphics::layout() partitioning that this call introduced.

Details

Use spec = c(nrow, ncol) for a uniform grid (delegates to graphics::par(mfrow = ...)). Use spec = <matrix> for a non-uniform layout (delegates to graphics::layout()); the matrix values name panel cells, so matrix(c(1, 1, 2, 3), 2, 2) produces one wide cell on top and two cells on the bottom row.

Combined-flag scope

panel_layout() composes with the combined = FALSE opt-out on cograph's multi-panel plot functions. Single-network calls like splot(some_tna_object) do not honor combined — there is nothing for it to gate. Pass combined = FALSE only to the multi-panel hosts: plot_netobject_group(), plot_netobject_ml(), plot_net_bootstrap_group(), plot_group_permutation(), plot_compare(), splot.net_mlvar(type = "all"), plot_network_evolution(), plot.cograph_motifs(type = "network"), plot.cograph_motif_result(type = "patterns"), plot.cograph_motif_analysis(type = "patterns"), plot.tna_disparity(type = "comparison"), and splot() on group_tna / similar list-of-plottables inputs.

Examples

mat <- matrix(c(0, .5, .3, .5, 0, .4, .3, .4, 0), 3, 3)
colnames(mat) <- rownames(mat) <- c("A", "B", "C")
net1 <- as_cograph(mat)
net2 <- as_cograph(mat * 0.5)

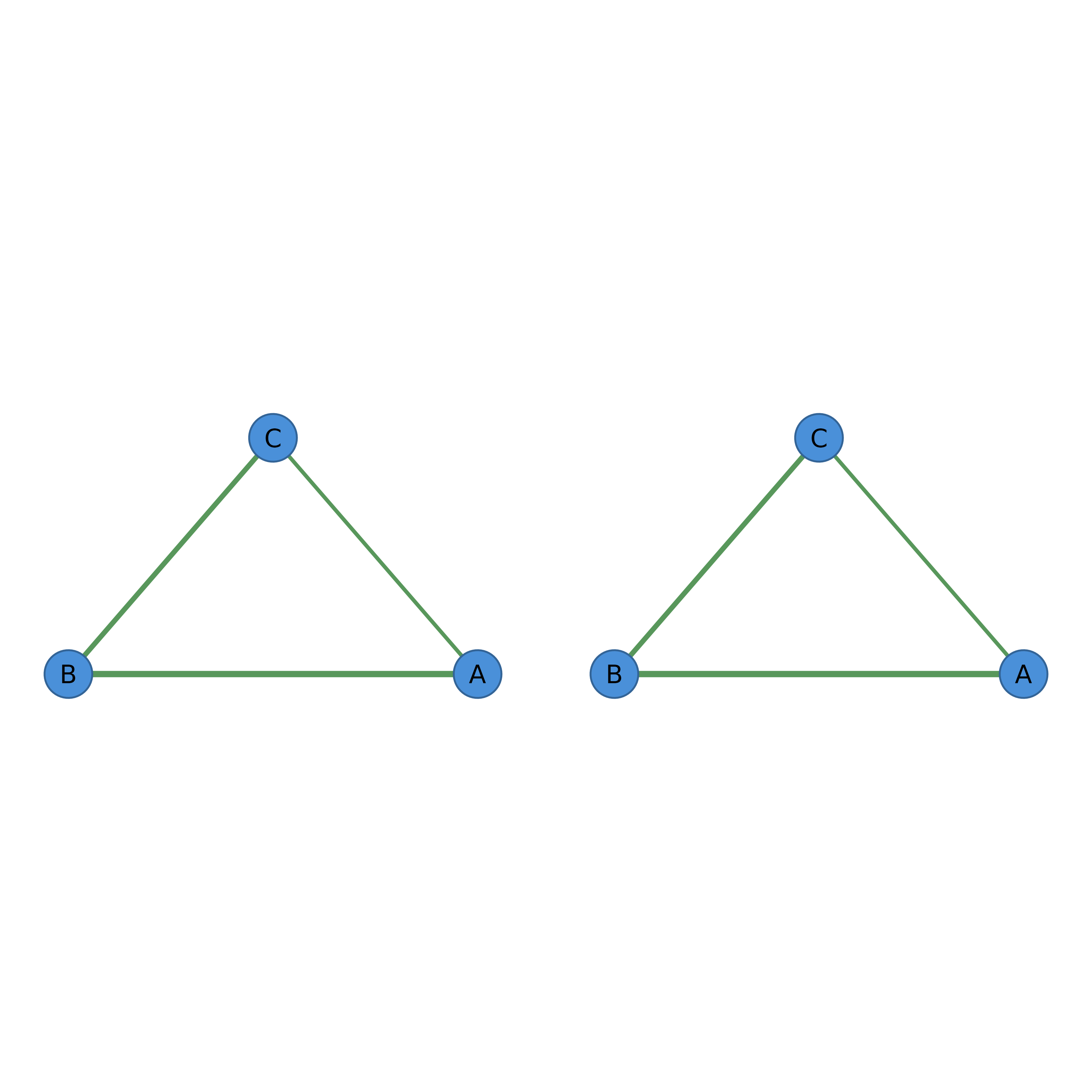

# Uniform 1 x 2 grid
op <- panel_layout(c(1, 2))
splot(net1, combined = FALSE)
splot(net2, combined = FALSE)

graphics::par(op)
