A transition network summarises how actors move between states, but not how often each state occurs in the first place. A transition out of a rare state can carry a high probability on very little evidence, so the marginal frequencies are the context in which every edge weight is read. This vignette covers the frequency and mosaic summaries in htna. We will use two networks constructed from the bundled human_ai corpus (Human + AI events tagged by actor_type; see ?human_ai). The frequency family operates on either, but the mosaic family requires an integer-weighted network because the chi-square test acts on counts; this is the network produced under method = "frequency".

library(htna)
data(human_ai)

net      <- build_htna(human_ai, actor_type = "actor_type")
net_freq <- build_htna(human_ai, actor_type = "actor_type",
                       method = "frequency")

Marginal state distributions

Tabular summary

frequencies_htna() returns the per-actor marginal state distribution as a data frame with one row per (actor_type, state) pair. Columns are: actor type (group), state, count, and the state’s proportion of its own actor’s events (proportions sum to 1 within each actor). The table is the data underlying every chart in this section.

frequencies_htna(net)
#>    group     state count proportion
#> 1     AI   Execute  3258 0.38100807
#> 2  Human   Request  3104 0.28751389
#> 3  Human   Specify  2920 0.27047054
#> 4     AI       Ask  2416 0.28254005
#> 5  Human Frustrate  1829 0.16941460
#> 6     AI      Plan  1620 0.18945153
#> 7  Human     Check  1298 0.12022971
#> 8  Human   Inquire   853 0.07901074
#> 9  Human    Refine   792 0.07336050
#> 10    AI    Report   705 0.08244650
#> 11    AI  Delegate   295 0.03449889
#> 12    AI    Repair   257 0.03005496

Graphical summary: plot_frequencies_htna()

plot_frequencies_htna() renders the same marginal distribution in three layouts. Each layout encodes the same data but is optimised for a different reading task.

Treemap (view = "treemap", default)

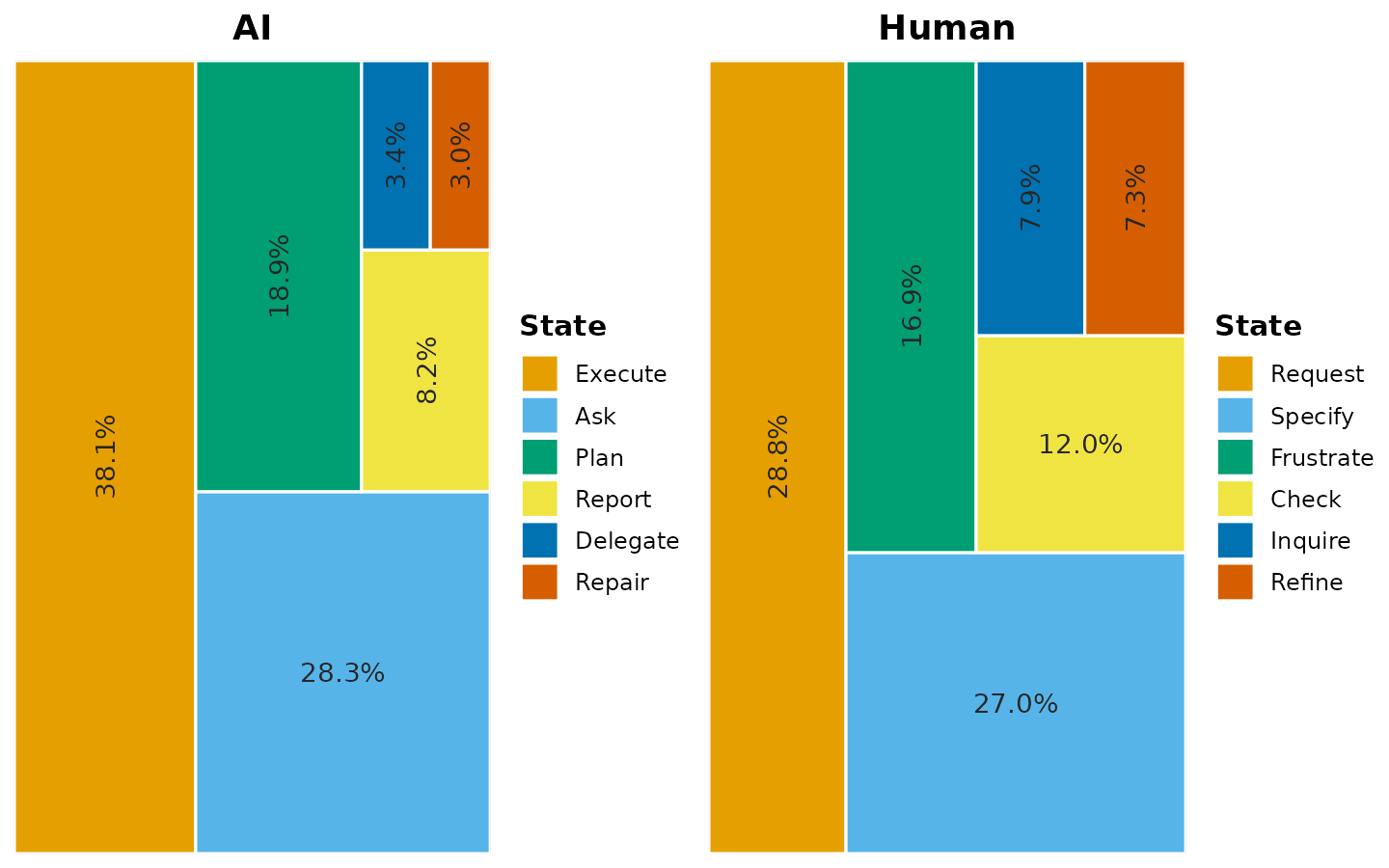

Each panel corresponds to one actor; tile area within a panel encodes the within-actor proportion of the corresponding state. The layout is space-efficient and allows the full state vocabulary to be displayed simultaneously.

Combined bars (view = "bars")

The bars layout collapses both actor types onto a single y-axis, sorts the states by total count, and colours the bars by actor. This layout is appropriate when the analytic task is direct numerical comparison across the full vocabulary.

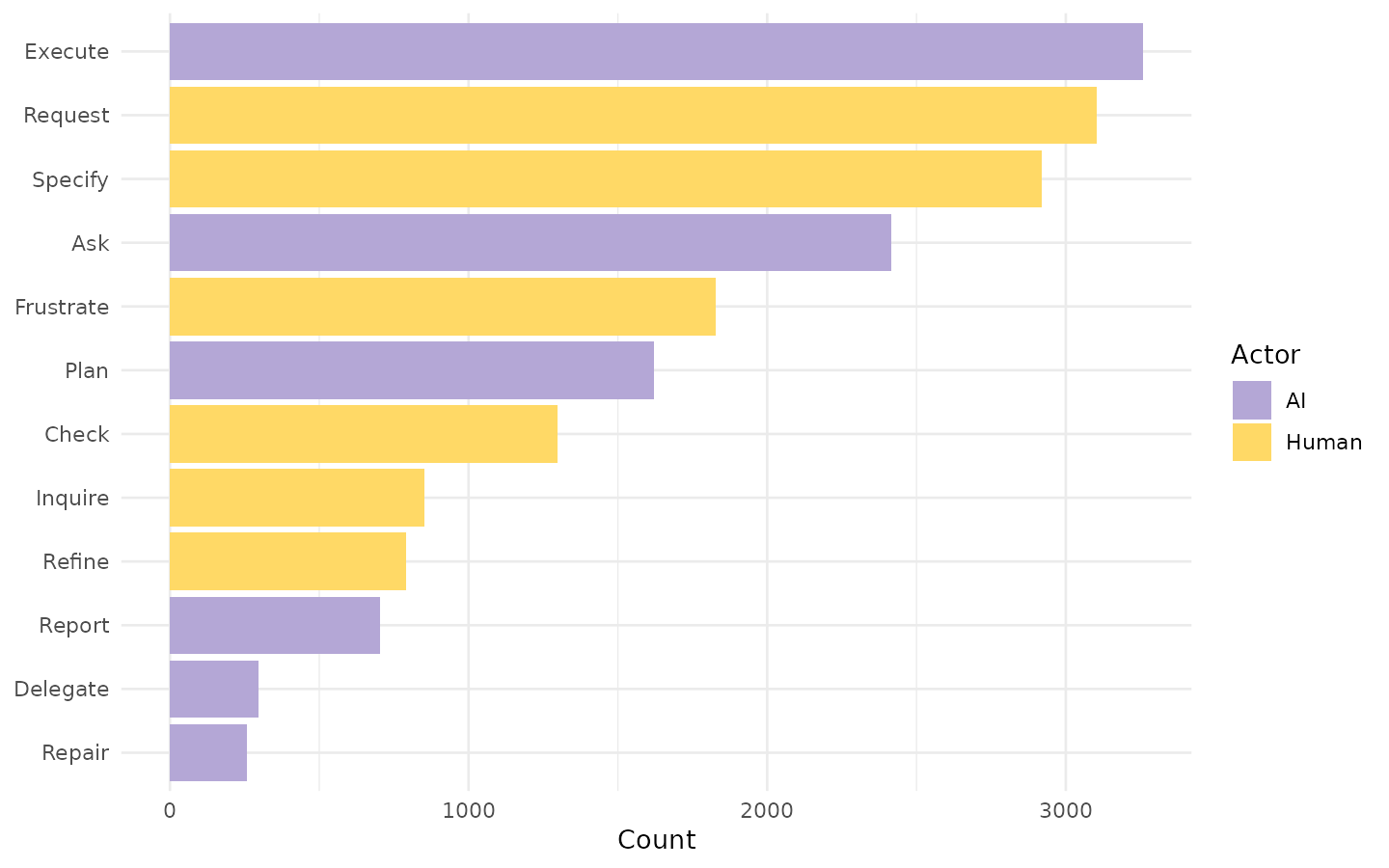

plot_frequencies_htna(net, view = "bars")

The bars layout returns a ggplot object, permitting modification through standard ggplot composition operators:

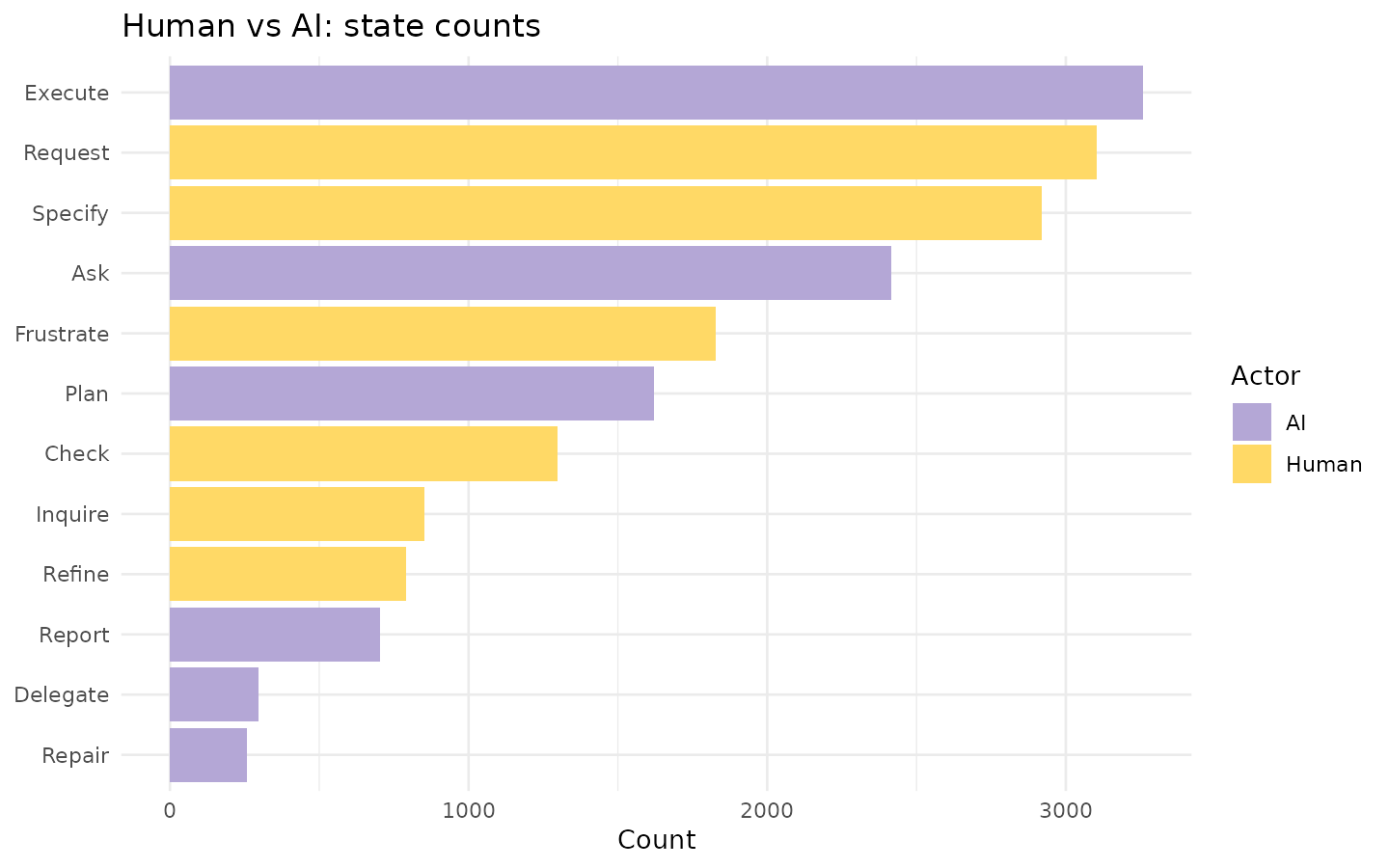

plot_frequencies_htna(net, view = "bars") +
  ggplot2::labs(title = "Human vs AI: state counts")

Per-actor faceted bars (view = "facet")

The faceted layout assigns each actor its own panel with an independent y-axis. This is appropriate when the actors differ substantially in event volume, since a shared scale would compress the lower-volume actor’s bars beyond legibility.

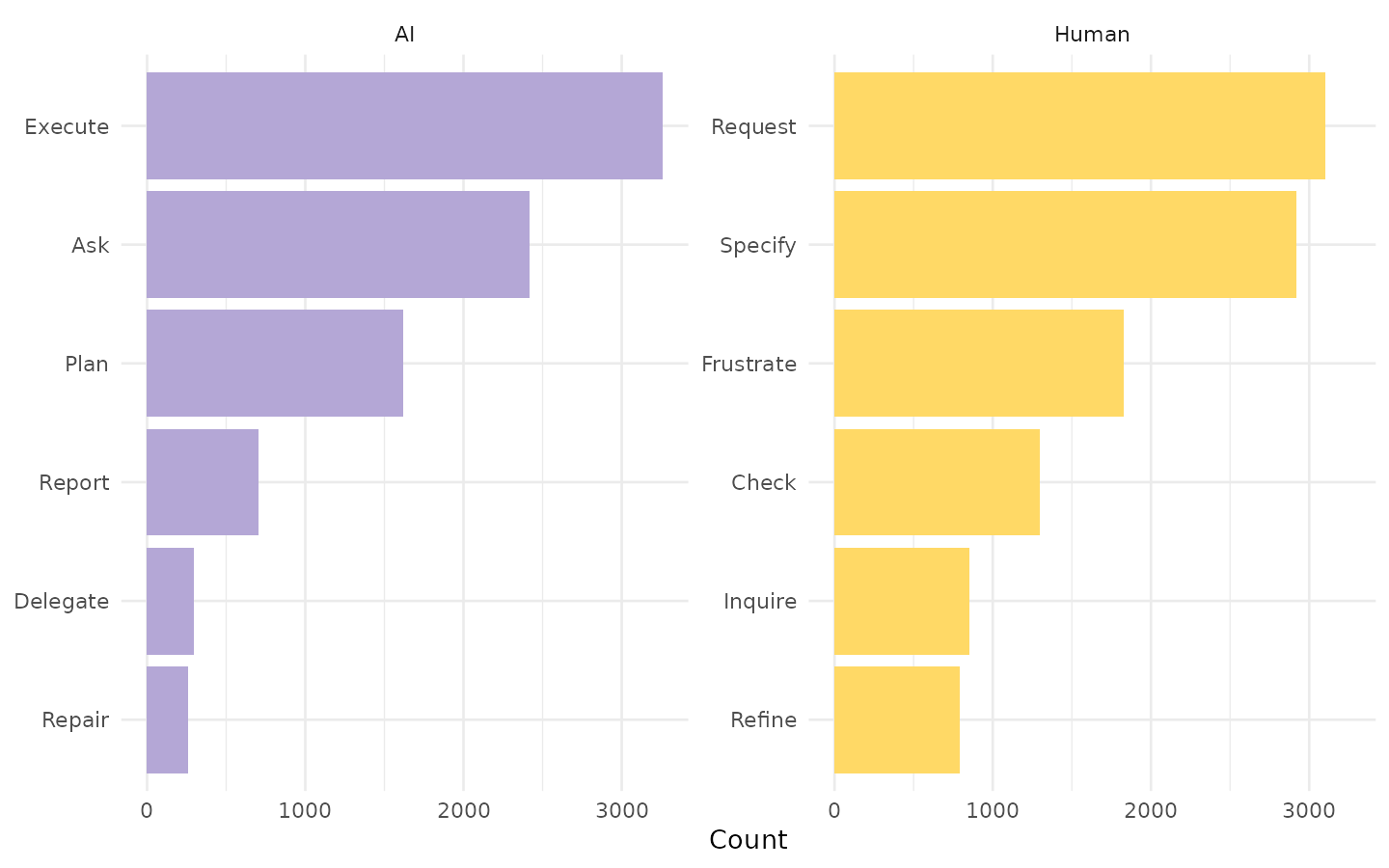

plot_frequencies_htna(net, view = "facet")

Joint transition distribution: chi-square mosaic

mosaic_plot_htna() displays the joint distribution of (source, target) transitions as a chi-square mosaic. Each cell of the transition matrix is rendered as a rectangle whose area is proportional to the joint share of that transition; cell colour encodes the standardised residual against an independence model. Cells with positive residuals (over-represented relative to independence) are coloured blue; cells with negative residuals (under-represented) are coloured red; cells whose observed value matches the independence prediction are white.

The chi-square test requires integer counts, hence the requirement for a frequency-method network.

Default residuals (permutation-based)

The default residual estimator is permutation-based, with n_perm = 500 iterations. Permutation residuals are appropriate when cell counts are sparse or when the chi-square asymptotic approximation is not trusted; the trade-off is computation time.

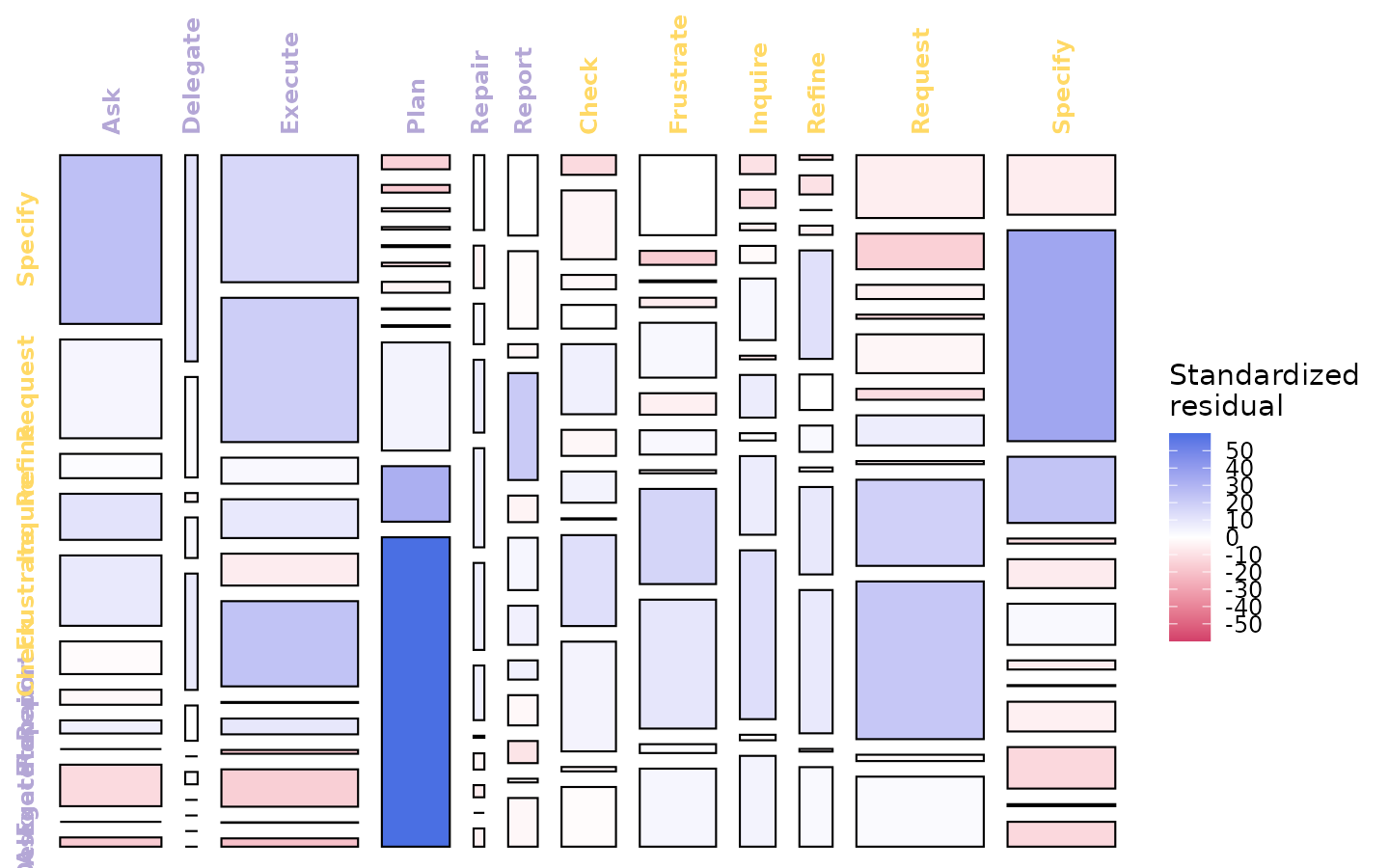

mosaic_plot_htna(net_freq, seed = 1L)

Cells with strong positive residuals identify transitions that characterise the process beyond what would be expected by chance; cells with strong negative residuals identify transitions that are systematically suppressed.

Asymptotic residuals (residuals = "asymptotic")

The closed-form chi-square standardised residual estimator (chisq.test()$stdres) is faster and is the convention used by tna and vcd. It is appropriate when cell counts are large enough for the asymptotic approximation to hold.

mosaic_plot_htna(net_freq, residuals = "asymptotic")

For corpora where most cells hold many transitions, permutation and asymptotic residuals are expected to agree closely; compare the two mosaics above to check this for the data at hand.

Colour-scale clipping (range = c(-4, 4))

By default the colour scale is calibrated to the maximum absolute residual in the matrix. A single extreme cell can therefore desaturate the remainder of the chart. Clipping the range to a fixed interval preserves contrast across the matrix and supports comparison of mosaics across networks.

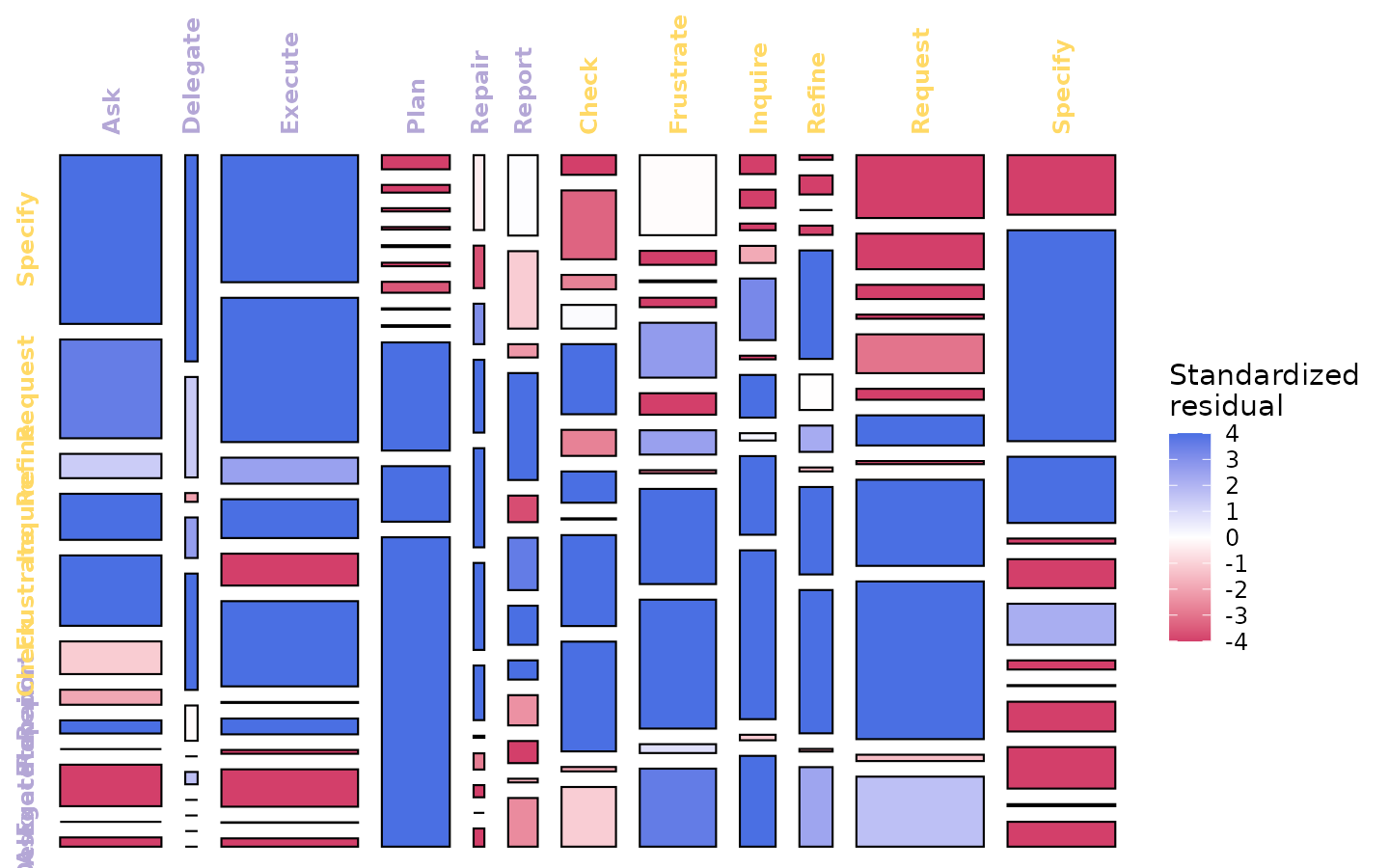

mosaic_plot_htna(net_freq, range = c(-4, 4), seed = 1L)

A range of ±4 is conventional in mosaic displays; residuals beyond the range saturate to the most intense colour.

Axis-label rotation (top_angle, left_angle)

For matrices with long state names or large vocabularies, axis labels may collide. The top_angle and left_angle arguments rotate the labels for legibility.

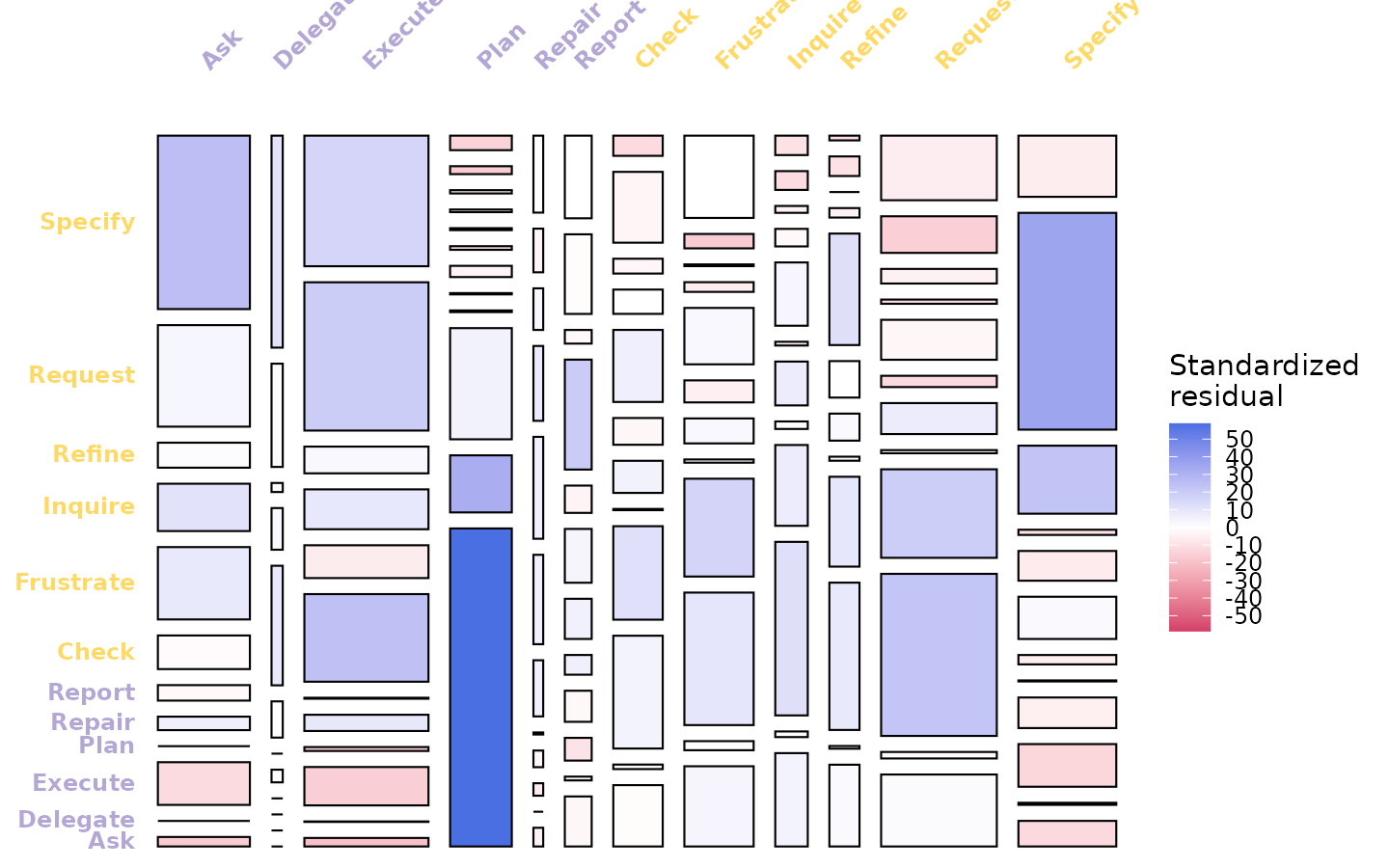

mosaic_plot_htna(net_freq, top_angle = 45, left_angle = 0, seed = 1L)
