A tidy two-column lookup tagging every simplified code in human_ai with its actor type. Ready to pass as node_groups to build_htna() (Form 3b in the vignette("input-formats", package = "htna")).

Usage

human_ai_codebook

Format

A data frame with 12 rows and 2 columns:

code

Character. Simplified action code (one of the 12 Human + AI codes in human_ai).

actor_type

Character. "Human" or "AI".

Source

Derived from human_simplified and ai_simplified; see data-raw/human_ai.R for the build script.

Examples

data(human_ai, human_ai_codebook)
human_ai_codebook
#>         code actor_type
#> 1    Specify      Human
#> 2    Request      Human
#> 3  Frustrate      Human
#> 4      Check      Human
#> 5    Inquire      Human
#> 6     Refine      Human
#> 7   Delegate         AI
#> 8       Plan         AI
#> 9    Execute         AI
#> 10       Ask         AI
#> 11    Repair         AI
#> 12    Report         AI

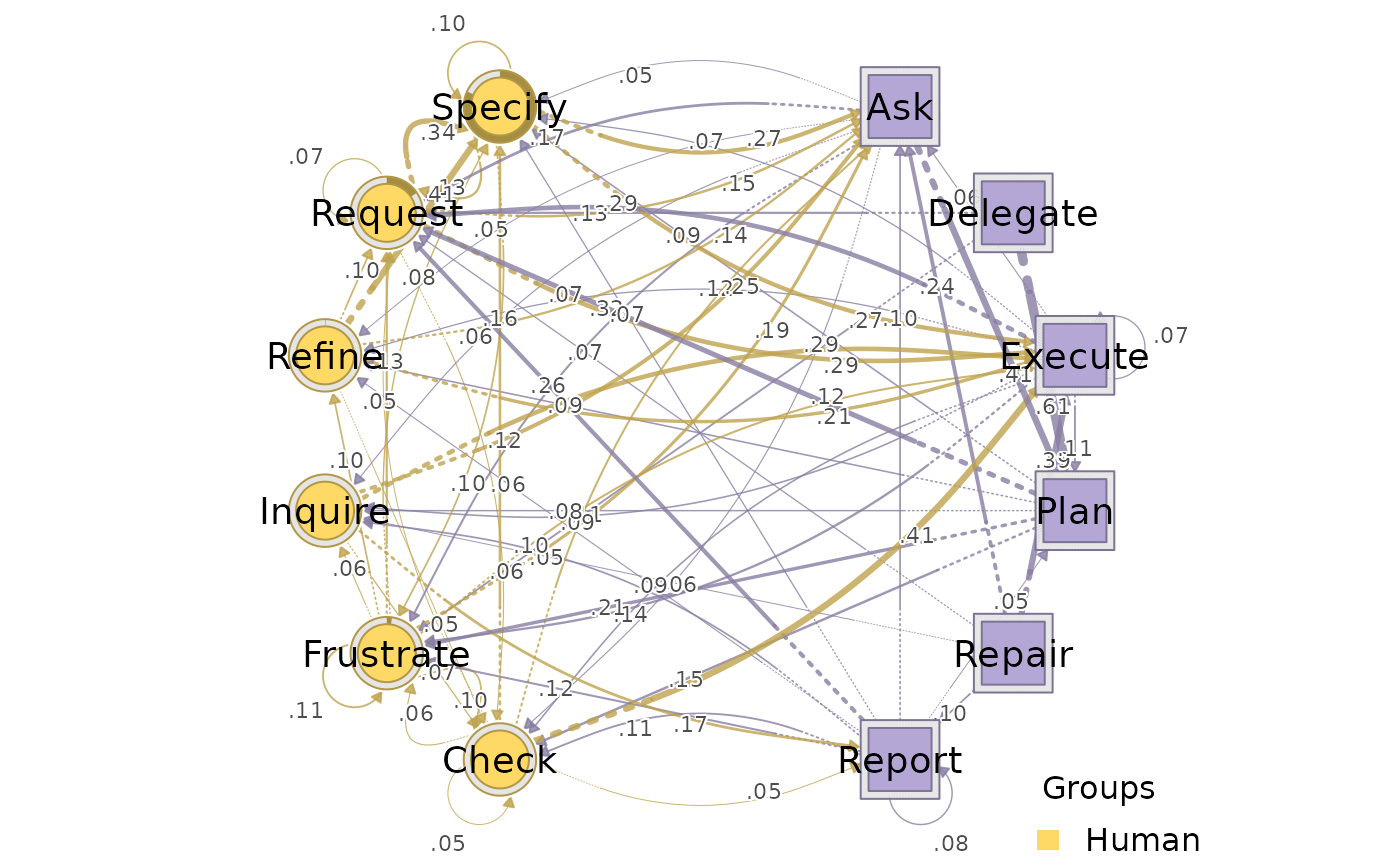

net <- build_htna(human_ai, node_groups = human_ai_codebook)
#> Metadata aggregated per session: ties resolved by first occurrence in 'session_date' (1 sessions), 'cluster' (42 sessions), 'actor_type' (24 sessions)
summary(net)
#> <htna network>
#>   Method:    relative
#>   Sessions:  429   (max 287 timesteps)
#>   Nodes:     12
#>   Edges:     135 / 144 (non-zero)
#>
#> Actor types (2):
#>   Human (6 nodes):  Check, Frustrate, Inquire, Refine, Request, Specify
#>   AI    (6 nodes):  Ask, Delegate, Execute, Plan, Repair, Report
#>
#> Edge counts by actor (rows = source, cols = target):
#>           Human    AI
#>   Human      35    36
#>   AI         36    28
#>
#> Network metrics:
#>                       metric        value
#>                   Node Count  12.00000000
#>                   Edge Count 135.00000000
#>              Network Density   1.00000000
#>                Mean Distance   0.02743124
#>            Mean Out-Strength   1.00000000
#>              SD Out-Strength   0.00000000
#>             Mean In-Strength   1.00000000
#>               SD In-Strength   0.63085045
#>              Mean Out-Degree  11.25000000
#>                SD Out-Degree   0.96530730
#>  Centralization (Out-Degree)   0.05785124
#>   Centralization (In-Degree)   0.05785124
#>                  Reciprocity   0.96000000
