HTNA is not limited to two actor groups. This vignette demonstrates how to build and visualise a heterogeneous transition network with three groups.

Simulating a three-actor interaction

We simulate a collaborative coding session with three actors – a Student, an AI assistant, and a System (e.g. IDE or automated tooling) – each with four distinct codes:

library(htna)

set.seed(42)

student_codes <- c("Ask", "Confirm", "Revise", "Evaluate")
ai_codes      <- c("Suggest", "Explain", "Execute", "Clarify")
system_codes  <- c("Log", "Notify", "Compile", "Sync")
sessions      <- sprintf("S%03d", seq_len(30))

make_events <- function(codes, sessions, offset) {
  rows <- lapply(sessions, function(sid) {
    n <- sample(15:25, 1)
    data.frame(
      session_id       = sid,
      code             = sample(codes, n, replace = TRUE),
      order_in_session = seq_len(n) * 3L - offset,
      stringsAsFactors = FALSE
    )
  })
  do.call(rbind, rows)
}

student_data <- make_events(student_codes, sessions, 2L)
ai_data      <- make_events(ai_codes, sessions, 1L)
system_data  <- make_events(system_codes, sessions, 0L)

Building a 3-group network

Pass all three groups as a named list:

net3 <- build_htna(
  list(Student = student_data, AI = ai_data, System = system_data)
)
net3
#> Transition Network (relative probabilities) [directed]
#>   Weights: [0.006, 0.289]  |  mean: 0.103
#>
#>   Weight matrix:
#>              Ask Clarify Compile Confirm Evaluate Execute Explain   Log Notify
#>   Ask      0.000   0.204   0.020   0.007    0.000   0.279   0.224 0.027  0.007
#>   Clarify  0.007   0.007   0.271   0.007    0.014   0.000   0.014 0.264  0.188
#>   Compile  0.230   0.025   0.006   0.261    0.211   0.012   0.012 0.000  0.012
#>   Confirm  0.000   0.208   0.023   0.000    0.000   0.231   0.243 0.006  0.012
#>   Evaluate 0.000   0.219   0.008   0.000    0.000   0.242   0.289 0.000  0.016
#>   Execute  0.013   0.020   0.260   0.020    0.000   0.007   0.000 0.227  0.200
#>   Explain  0.026   0.000   0.237   0.000    0.013   0.020   0.000 0.204  0.289
#>   Log      0.228   0.020   0.000   0.248    0.195   0.027   0.007 0.040  0.007
#>   Notify   0.218   0.027   0.014   0.286    0.197   0.000   0.027 0.014  0.014
#>   Revise   0.000   0.281   0.016   0.000    0.008   0.195   0.266 0.000  0.016
#>   Suggest  0.007   0.014   0.246   0.021    0.007   0.007   0.007 0.246  0.261
#>   Sync     0.237   0.007   0.007   0.230    0.193   0.022   0.007 0.015  0.022
#>            Revise Suggest  Sync
#>   Ask       0.000   0.218 0.014
#>   Clarify   0.007   0.000 0.222
#>   Compile   0.211   0.012 0.006
#>   Confirm   0.006   0.260 0.012
#>   Evaluate  0.000   0.211 0.016
#>   Execute   0.000   0.020 0.233
#>   Explain   0.013   0.000 0.197
#>   Log       0.195   0.020 0.013
#>   Notify    0.177   0.020 0.007
#>   Revise    0.000   0.188 0.031
#>   Suggest   0.007   0.000 0.176
#>   Sync      0.222   0.030 0.007
#>
#>   Initial probabilities:
#>   Confirm       0.433  ████████████████████████████████████████
#>   Ask           0.200  ██████████████████
#>   Revise        0.200  ██████████████████
#>   Evaluate      0.167  ███████████████
#>   Clarify       0.000
#>   Compile       0.000
#>   Execute       0.000
#>   Explain       0.000
#>   Log           0.000
#>   Notify        0.000
#>   Suggest       0.000
#>   Sync          0.000

The actor partition now contains three levels, each with its four codes; summary() lists them and counts the non-zero edges within and between every pair of actors:

summary(net3)
#> <htna network>
#>   Method:    relative
#>   Sessions:  30   (max 70 timesteps)
#>   Nodes:     12
#>   Edges:     116 / 144 (non-zero)
#>
#> Actor types (3):
#>   Student (4 nodes):  Ask, Confirm, Evaluate, Revise
#>   AI      (4 nodes):  Clarify, Execute, Explain, Suggest
#>   System  (4 nodes):  Compile, Log, Notify, Sync
#>
#> Edge counts by actor (rows = source, cols = target):
#>             Student      AI  System
#>   Student         3      16      14
#>   AI             13       9      16
#>   System         16      15      14
#>
#> Network metrics:
#>                       metric        value
#>                   Node Count  12.00000000
#>                   Edge Count 116.00000000
#>              Network Density   0.87878788
#>                Mean Distance   0.01880090
#>            Mean Out-Strength   1.00000000
#>              SD Out-Strength   0.00000000
#>             Mean In-Strength   1.00000000
#>               SD In-Strength   0.09163372
#>              Mean Out-Degree   9.66666667
#>                SD Out-Degree   1.55699789
#>  Centralization (Out-Degree)   0.18181818
#>   Centralization (In-Degree)   0.18181818
#>                  Reciprocity   0.87272727

Plotting

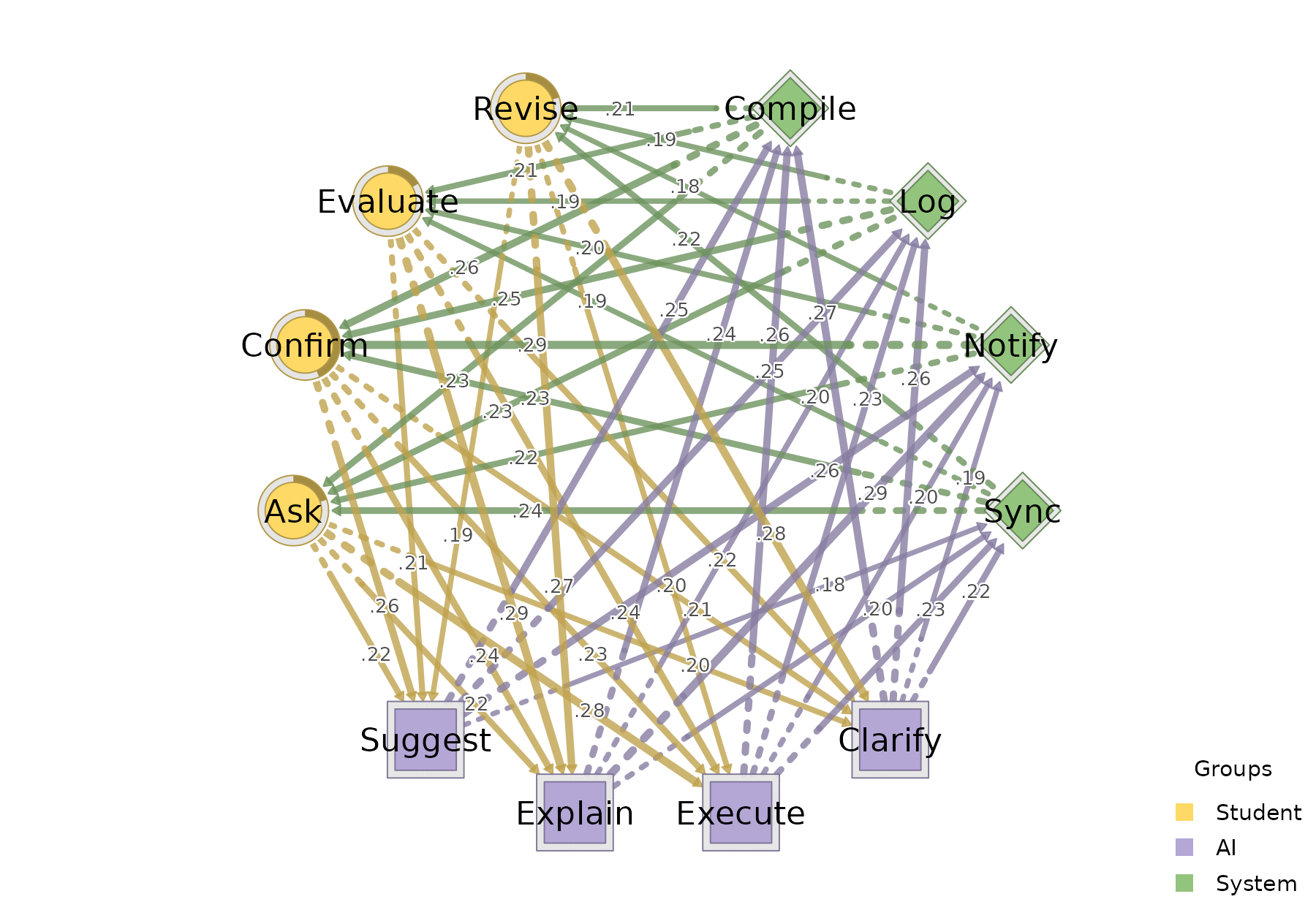

With the default circular layout, each of the three groups occupies its own arc of the circle. The first three colours of the default HTNA palette are applied in order:

plot_htna(net3)

layout = "polygon" (alias "triangle" for three groups) places each group along one side of a regular polygon (one side per group) instead:

plot_htna(net3, layout = "polygon")

Per-actor sequences

sequence_plot_htna() works the same way with three actors. With by = "state" each row is one (session, actor) and is coloured by the concrete code; with by = "group" cells are coloured by actor (here Student / AI / System):

sequence_plot_htna(net3, by = "state", type = "index")

sequence_plot_htna(net3, by = "group", type = "distribution")

The by = "state" legend is split into one block per actor with the actor name as a sub-title, so the reader can tell at a glance which codes belong to which actor.

Comparing two networks

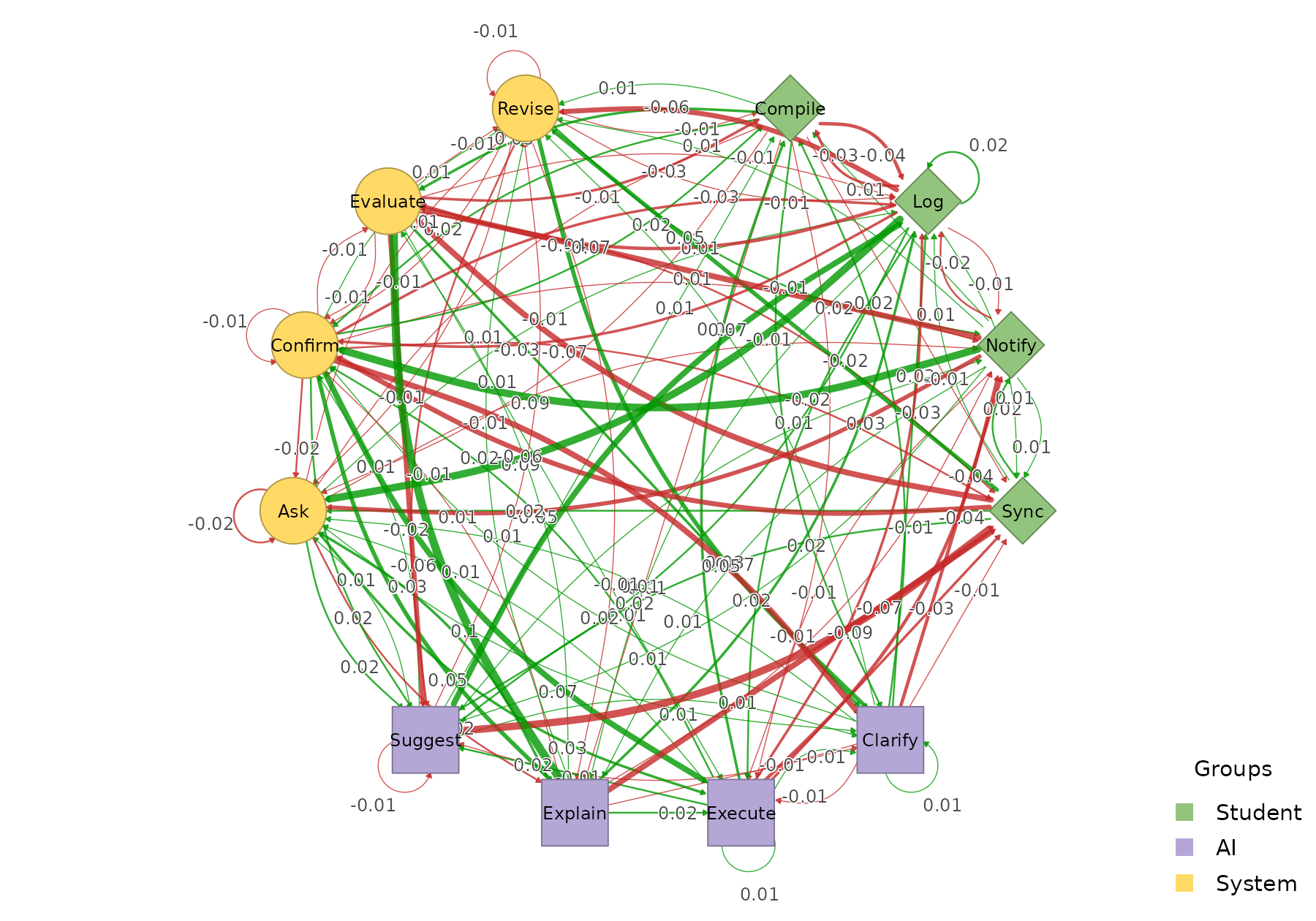

Build a second network from the same actors (e.g. with different session-level dynamics) and use plot_htna_diff() for the elementwise difference. Positive differences are green, negative red:

set.seed(7)
student_data2 <- make_events(student_codes, sessions, 2L)
ai_data2      <- make_events(ai_codes,      sessions, 1L)
system_data2  <- make_events(system_codes,  sessions, 0L)

net3b <- build_htna(
  list(Student = student_data2, AI = ai_data2, System = system_data2)
)

plot_htna_diff(net3, net3b)

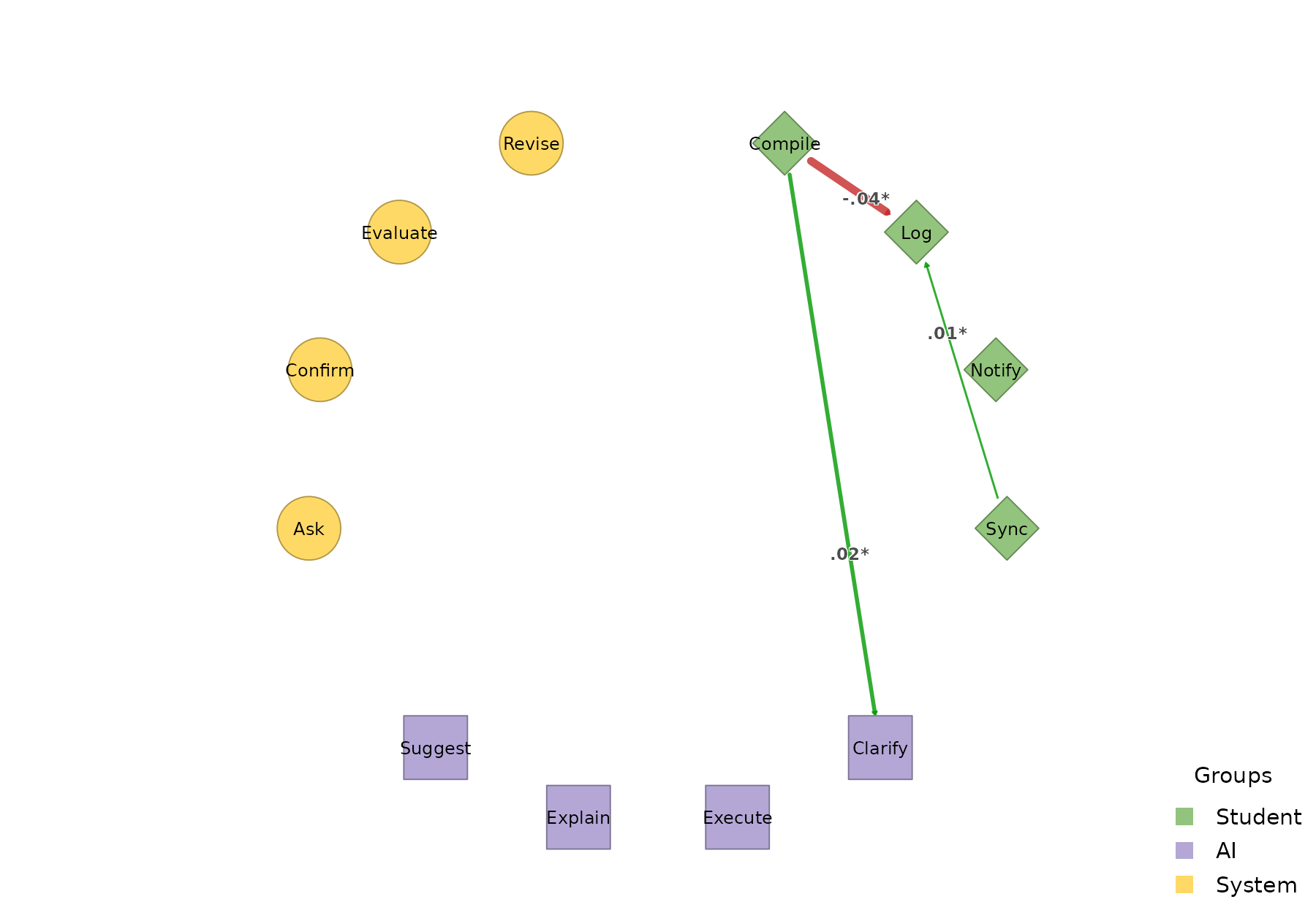

permutation_htna() provides the non-parametric significance test; pass the result to plot_htna_diff() to surface only the edges that differ significantly:

perm3 <- permutation_htna(net3, net3b, iter = 200)
plot_htna_diff(perm3)

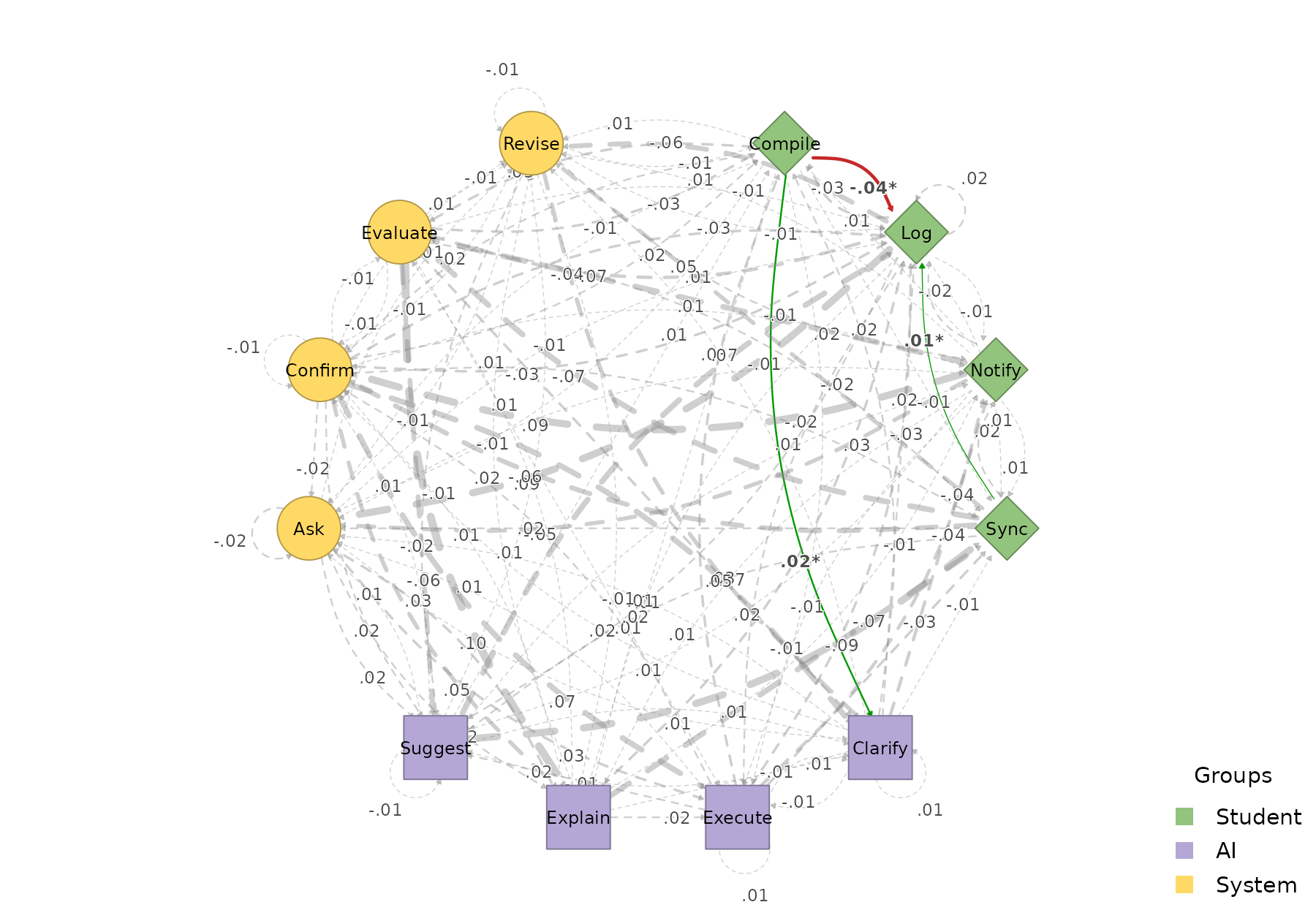

plot_htna_diff(perm3, show_nonsig = TRUE)

Meta-paths across three actors

Patterns now span all three actor types. The default is state-level, with a meta_schema rollup column tagging each row with its type-level template:

extract_meta_paths(net3, length = 3)
#> Patterns (state-level) over 30 sequences
#> Rows: 387 | Lengths: 3 | Gaps: 0
#>                      schema         meta_schema length gap count n_seq support
#>    Compile->Revise->Clarify System->Student->AI      3   0    16    13   0.433
#>   Explain->Compile->Confirm AI->System->Student      3   0    16    11   0.367
#>   Confirm->Clarify->Compile Student->AI->System      3   0    15    14   0.467
#>   Confirm->Execute->Compile Student->AI->System      3   0    13    12   0.400
#>  Evaluate->Explain->Compile Student->AI->System      3   0    13    12   0.400
#>  Clarify->Compile->Evaluate AI->System->Student      3   0    13    11   0.367
#>           Log->Ask->Execute System->Student->AI      3   0    13    10   0.333
#>     Sync->Evaluate->Execute System->Student->AI      3   0    13    11   0.367
#>  Compile->Evaluate->Explain System->Student->AI      3   0    13    11   0.367
#>   Compile->Confirm->Suggest System->Student->AI      3   0    13    12   0.400
#>  frequency  lift
#>      0.009 16.84
#>      0.009 11.93
#>      0.009 11.86
#>      0.008 10.08
#>      0.008 13.00
#>      0.008 13.79
#>      0.008 12.46
#>      0.008 16.08
#>      0.008 13.00
#>      0.008 10.64
#> ... (377 more)

Pass level = "type" to collapse the rows into the type-level meta-path summary:

extract_meta_paths(net3, level = "type", length = 3)
#> Meta-paths (type-level) over 30 sequences
#> Rows: 17 | Lengths: 3 | Gaps: 0
#>                    schema length gap count n_seq support frequency lift
#>       Student->AI->System      3   0   510    30   1.000     0.295 7.98
#>       AI->System->Student      3   0   497    30   1.000     0.288 7.78
#>       System->Student->AI      3   0   487    30   1.000     0.282 7.62
#>            AI->System->AI      3   0    41    10   0.333     0.024 0.62
#>        System->AI->System      3   0    37    10   0.333     0.021 0.56
#>   System->Student->System      3   0    32    10   0.333     0.019 0.50
#>  Student->System->Student      3   0    27     9   0.300     0.016 0.44
#>      Student->AI->Student      3   0    24     7   0.233     0.014 0.39
#>           AI->Student->AI      3   0    24     7   0.233     0.014 0.38
#>    System->System->System      3   0    16     7   0.233     0.009 0.24
#> ... (7 more)

A schema filters the search. For example, the concrete state-level instances of paths where the System mediates between Student and AI:

extract_meta_paths(net3, schema = "Student->System->AI")
#> State-level instances of schema 'Student->System->AI' over 30 sequences
#> (no rows met the filters)
