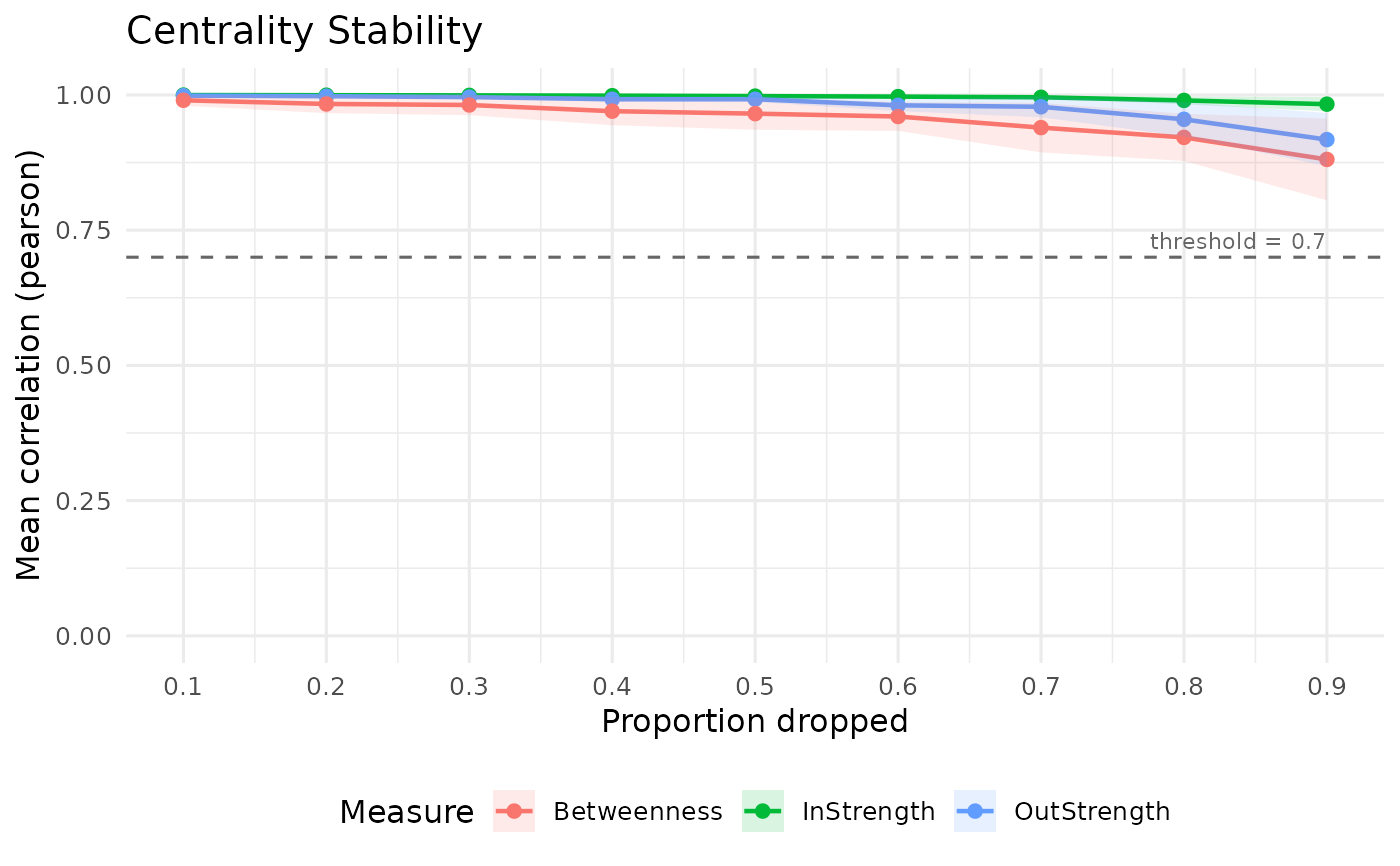

S3 method for plotting htna centrality stability results. Draws, with 'ggplot2', the mean correlation between the original and the case-dropped centralities against the proportion of sessions dropped: one line per measure, a +/- 1 SD ribbon, and a dashed line at the stability threshold. A measure is stable up to the drop proportion at which its line falls below that threshold. Requires the 'ggplot2' package (Suggests).

Usage

# S3 method for class 'htna_stability'
plot(x, ...)

Arguments

x

An object of class htna_stability from centrality_stability_htna().

...

Unused; present for consistency with the generic.

Value

Invisibly, the ggplot object; the plot is printed as a side effect.

Examples

data(human_ai)
net <- build_htna(human_ai, actor_type = "actor_type")
#> Metadata aggregated per session: ties resolved by first occurrence in 'session_date' (1 sessions), 'cluster' (42 sessions), 'actor_type' (24 sessions)
cs  <- centrality_stability_htna(net, iter = 20, seed = 1)
if (requireNamespace("ggplot2", quietly = TRUE)) {
  plot(cs)
}
