Plot Disparity Filter Result — plot.tna_disparity • cograph

Plot Disparity Filter Result

Usage

# S3 method for class 'tna_disparity'
plot(x, type = c("backbone", "comparison"), combined = TRUE, ...)

Arguments

x: A tna_disparity object.
type: Plot type: "backbone" (default) or "comparison".
combined: Logical: when type = "comparison", controls whether the original vs. backbone panels are arranged in an internal 1 x 2 grid (TRUE, default) or drawn into a layout the caller has already configured (FALSE — pair with panel_layout()). Ignored for type = "backbone".
...: Additional arguments passed to splot.

Value

Invisibly returns the value from the underlying splot call. Called primarily for the side effect of producing a plot.

Examples

mat <- matrix(c(0.0, 0.5, 0.1, 0.0, 0.3, 0.0, 0.4, 0.1,
                0.1, 0.2, 0.0, 0.5, 0.0, 0.1, 0.3, 0.0), 4, 4, byrow = TRUE)
rownames(mat) <- colnames(mat) <- c("A", "B", "C", "D")
disp <- disparity_filter(cograph(mat), level = 0.05)

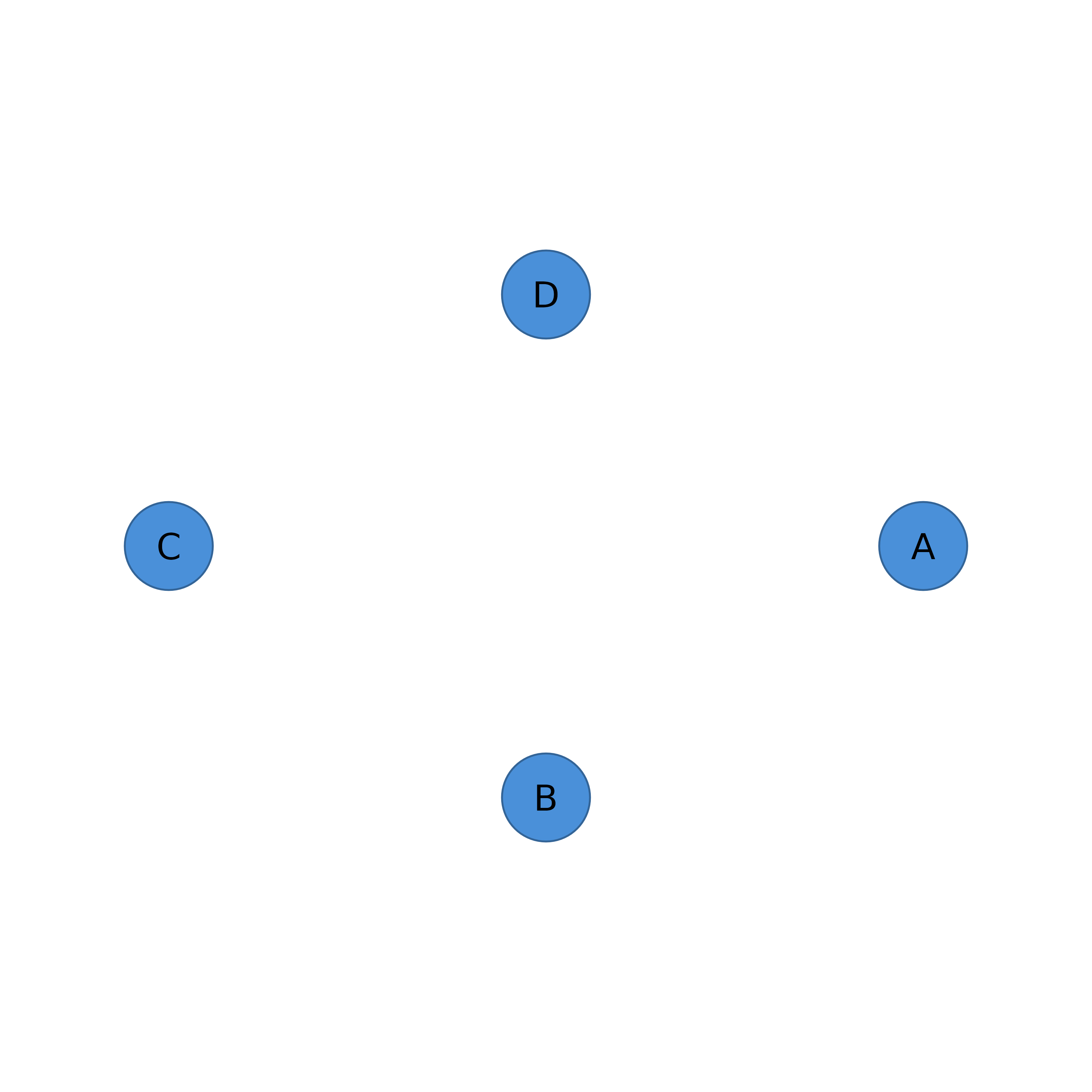

plot(disp)
