Node Shapes

Source: R/aaa-globals.R, R/shapes-svg.R
shapes.Rd

Node shapes are stored in a registry and selected by name through the node_shape argument of splot and soplot or the shape argument of sn_nodes. register_shape() adds a shape given by a drawing function, and get_shape() returns the drawing function of a registered shape. list_shapes() returns the names of all registered shapes. A shape added with register_shape() is a grid shape and is used by soplot() only. splot() plots its built-in shapes and SVG shapes. register_svg_shape() adds a shape defined by an SVG file or an inline SVG string, list_svg_shapes() returns the names of the registered SVG shapes, and unregister_svg_shape() removes one. SVG shapes are used by both splot() and soplot(). Registering an existing name replaces that shape for the rest of the session.

Usage

register_shape(name, draw_fn)

get_shape(name)

list_shapes()

register_svg_shape(name, svg_source)

list_svg_shapes()

unregister_svg_shape(name)

Arguments

name

Character. The name of the shape.

draw_fn

A function that renders the shape. It receives the arguments x, y, size, fill, border_color, border_width, alpha and ... and returns a grid grob.

svg_source

Character. A path to an SVG file or an inline SVG string.

Value

register_shape() and register_svg_shape() return NULL invisibly. get_shape() returns the drawing function, or NULL if no shape has that name. list_shapes() and list_svg_shapes() return a character vector of shape names. unregister_svg_shape() returns TRUE invisibly if the shape was removed and FALSE if it was not found.

Examples

list_shapes()
#>  [1] "circle"           "square"           "triangle"         "diamond"
#>  [5] "pentagon"         "hexagon"          "ellipse"          "heart"
#>  [9] "star"             "pie"              "donut"            "polygon_donut"
#> [13] "donut_pie"        "double_donut_pie" "cross"            "plus"
#> [17] "neural"           "chip"             "robot"            "brain"
#> [21] "network"          "database"         "cloud"            "gear"
#> [25] "rectangle"        "none"

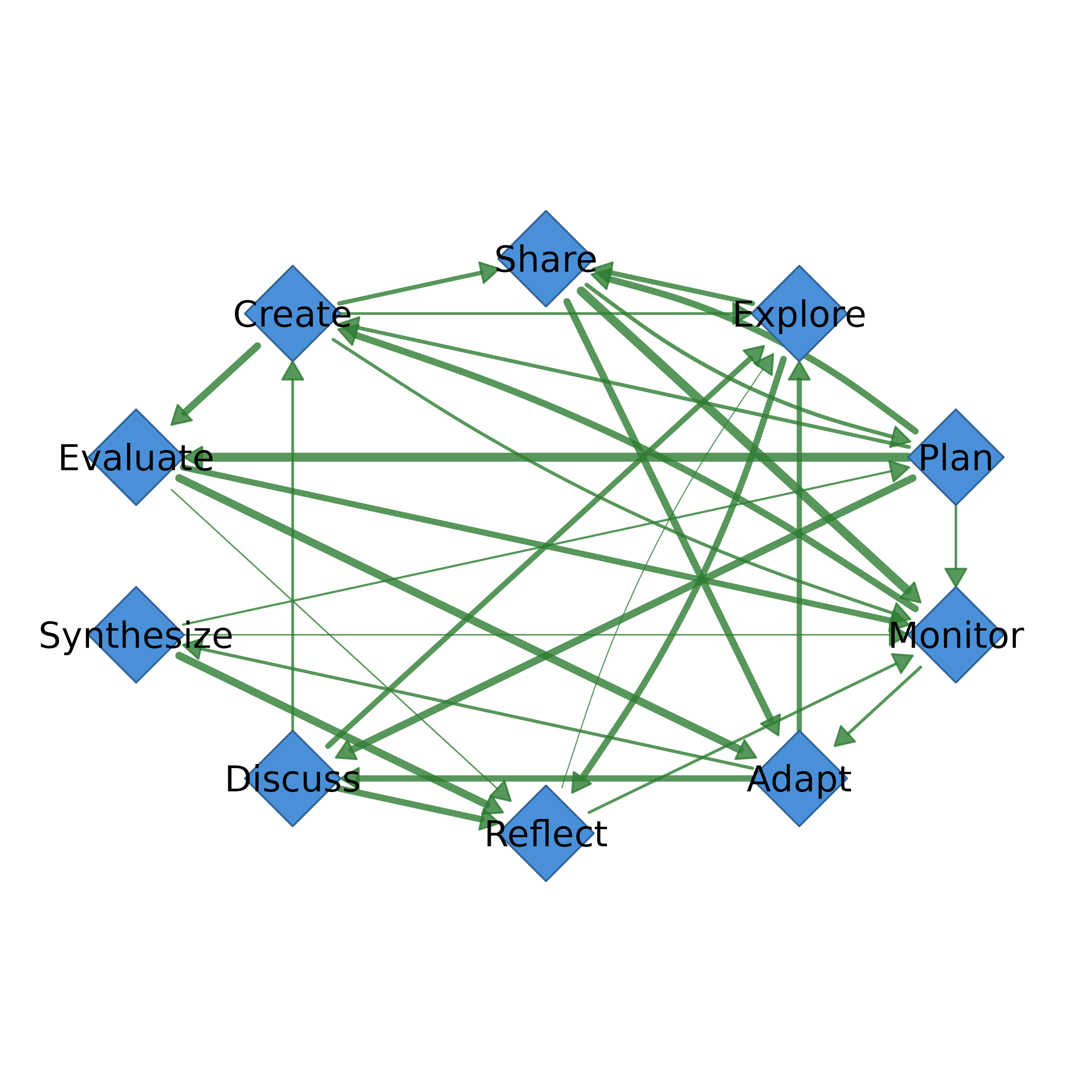

splot(regulation_net, node_shape = "diamond")
