reviewAlluvial() shows how studies flow across two or more categorical columns: each study traces a path through the strata, and the ribbons reveal which category combinations co-occur. It is the tool for spotting patterns like “which designs measure which outcomes.” This article walks through every argument of

reviewAlluvial(data, cols, sep = "\r\n", study_id = StudyID, colors = PALETTE,
               base_size = 12, na.rm = TRUE, na_label = "Not reported",
               labels = c("none", "prop", "count", "both"), flow_labels = FALSE,
               flow_alpha = 0.25, stratum_width = 0.5, axis_labels = NULL)

It requires the ggalluvial package.

Default

Pass the data frame and a character vector of column names. Each axis is one column; the boxes (strata) are its categories, and the ribbons connecting them are the studies.

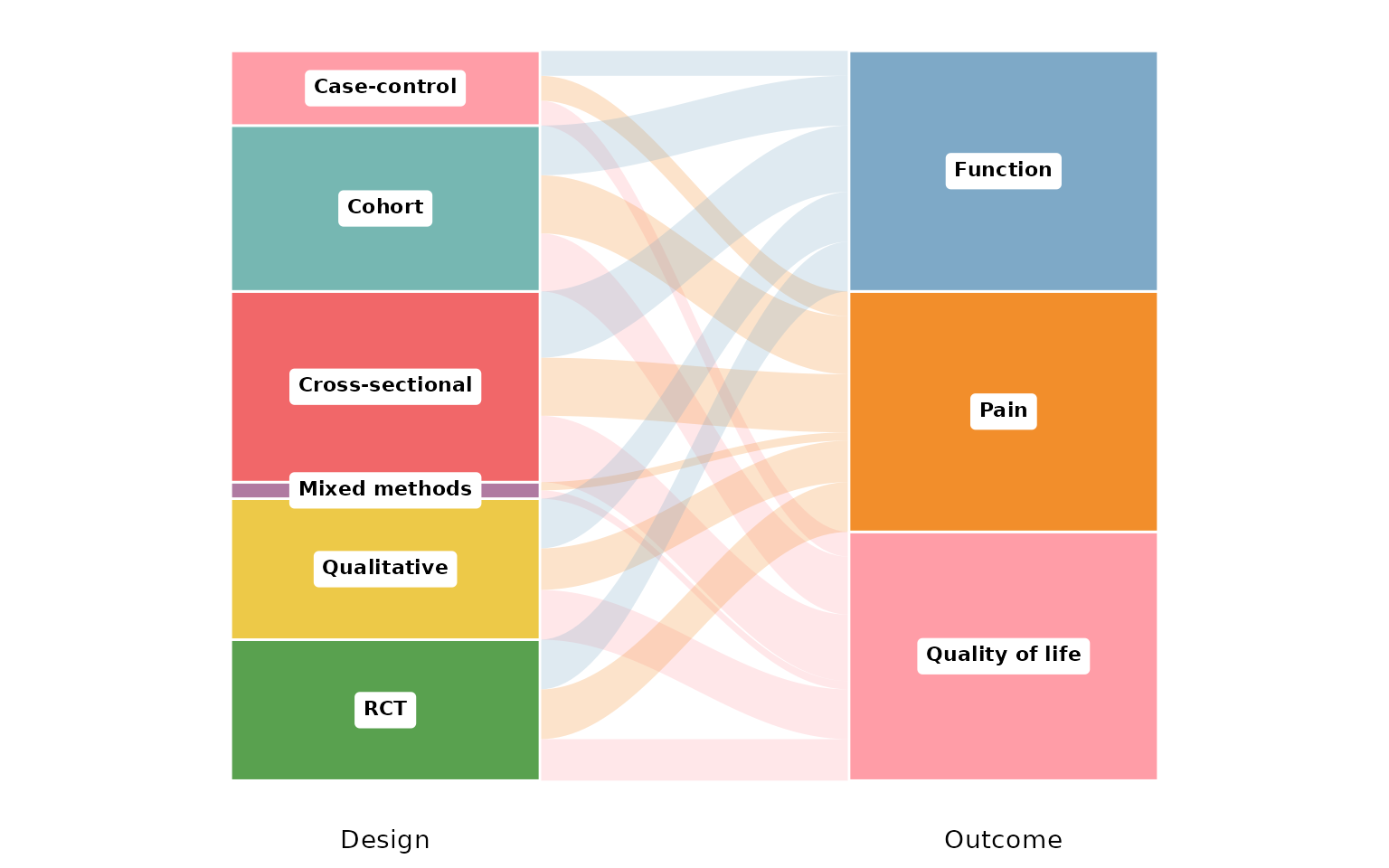

reviewAlluvial(studies, c("Design", "Outcome"))

cols: the columns to trace

cols is a character vector of two or more column names, one axis per name, drawn left to right. A two-column diagram links designs to outcomes:

reviewAlluvial(studies, c("Design", "Outcome"))

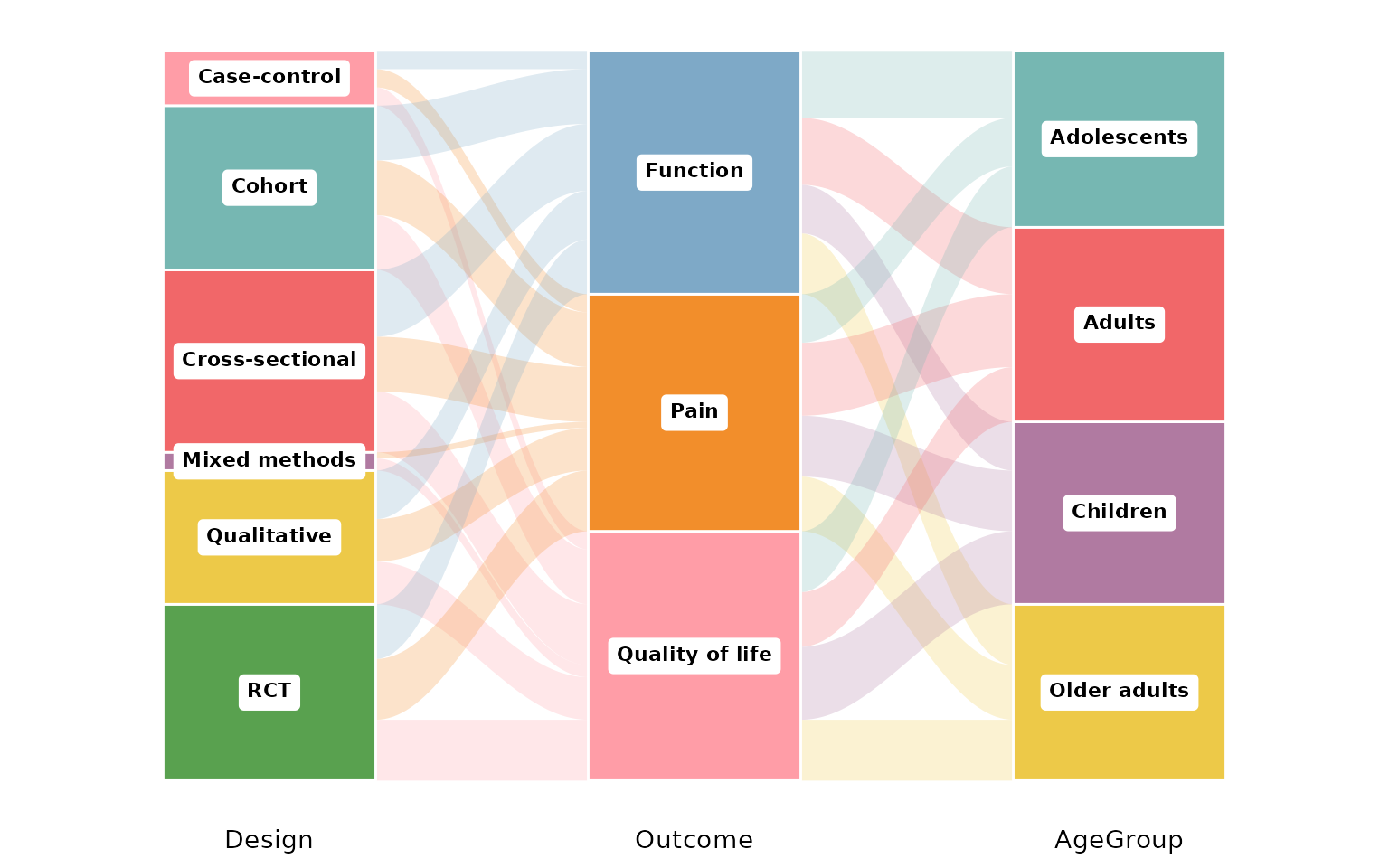

Add a third column and every study now traces a path across three axes. Multi-value columns (Outcome, AgeGroup) are split first, so a study with several values contributes a flow to each:

reviewAlluvial(studies, c("Design", "Outcome", "AgeGroup"))

sep: multi-value separator

Some cells hold several values. In studies, Outcome and AgeGroup use newline separators ("\r\n", the default), so each value spawns its own flow. If your data uses a different delimiter, set sep. Here we rebuild a semicolon-separated column to demonstrate:

studies_semi <- studies
studies_semi$Outcome <- gsub("\r\n", "; ", studies_semi$Outcome)

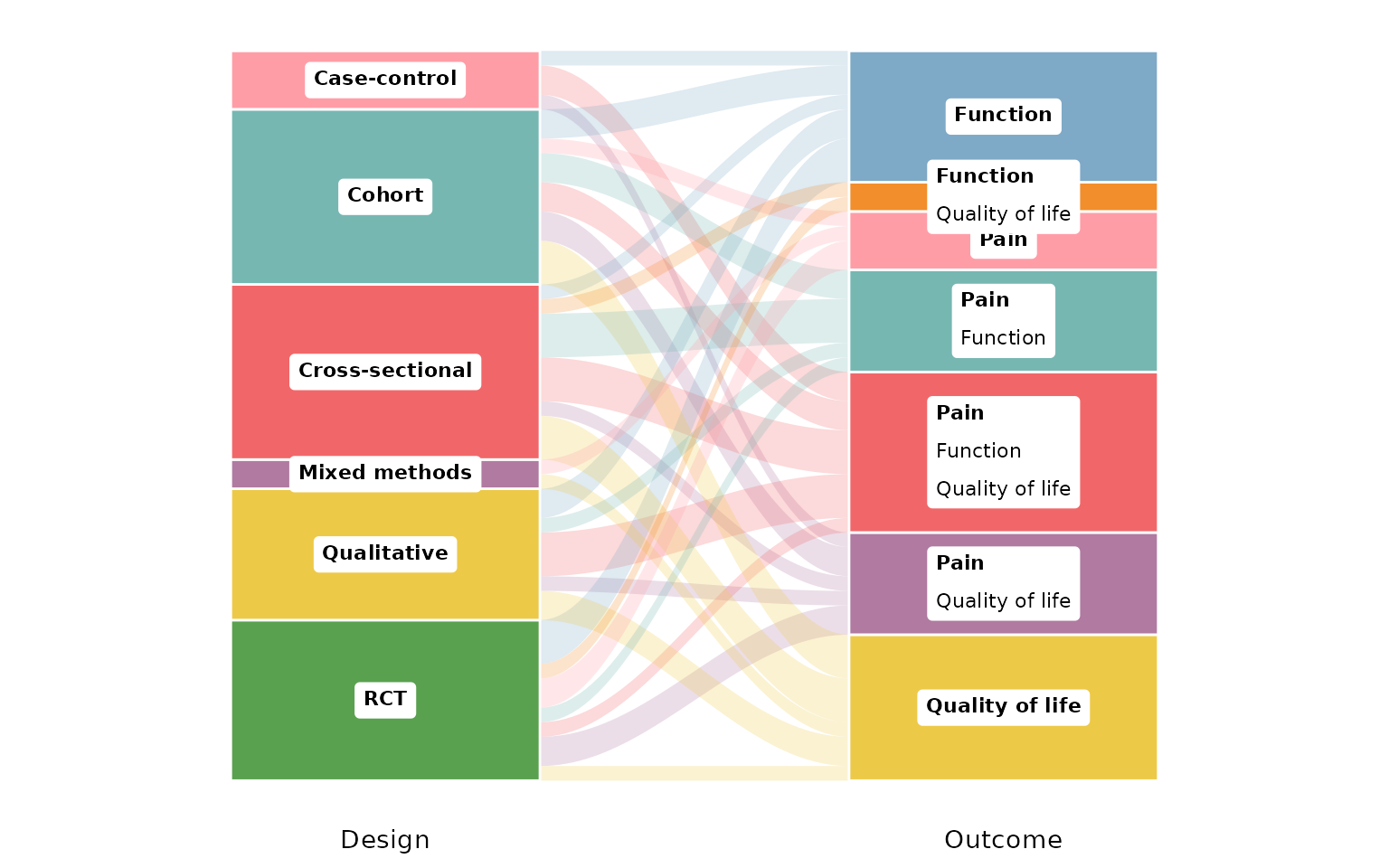

reviewAlluvial(studies_semi, c("Design", "Outcome"), sep = "; ")

study_id: the identifier column

study_id names the column that identifies one study (default StudyID). It defines what a single flow is: rows sharing an ID are one study, so multi-value cells fan out from the same origin. Any unique identifier works — here we use Author:

reviewAlluvial(studies, c("Design", "Outcome"), study_id = Author)

colors: the stratum palette

Strata are filled from a palette vector (default PALETTE). Print it to see the default colors:

PALETTE
#> [1] "#ff9da7" "#76b7b2" "#f16769" "#b07aa1" "#edc948" "#59a14f" "#7ea9c7"
#> [8] "#F28E2B"

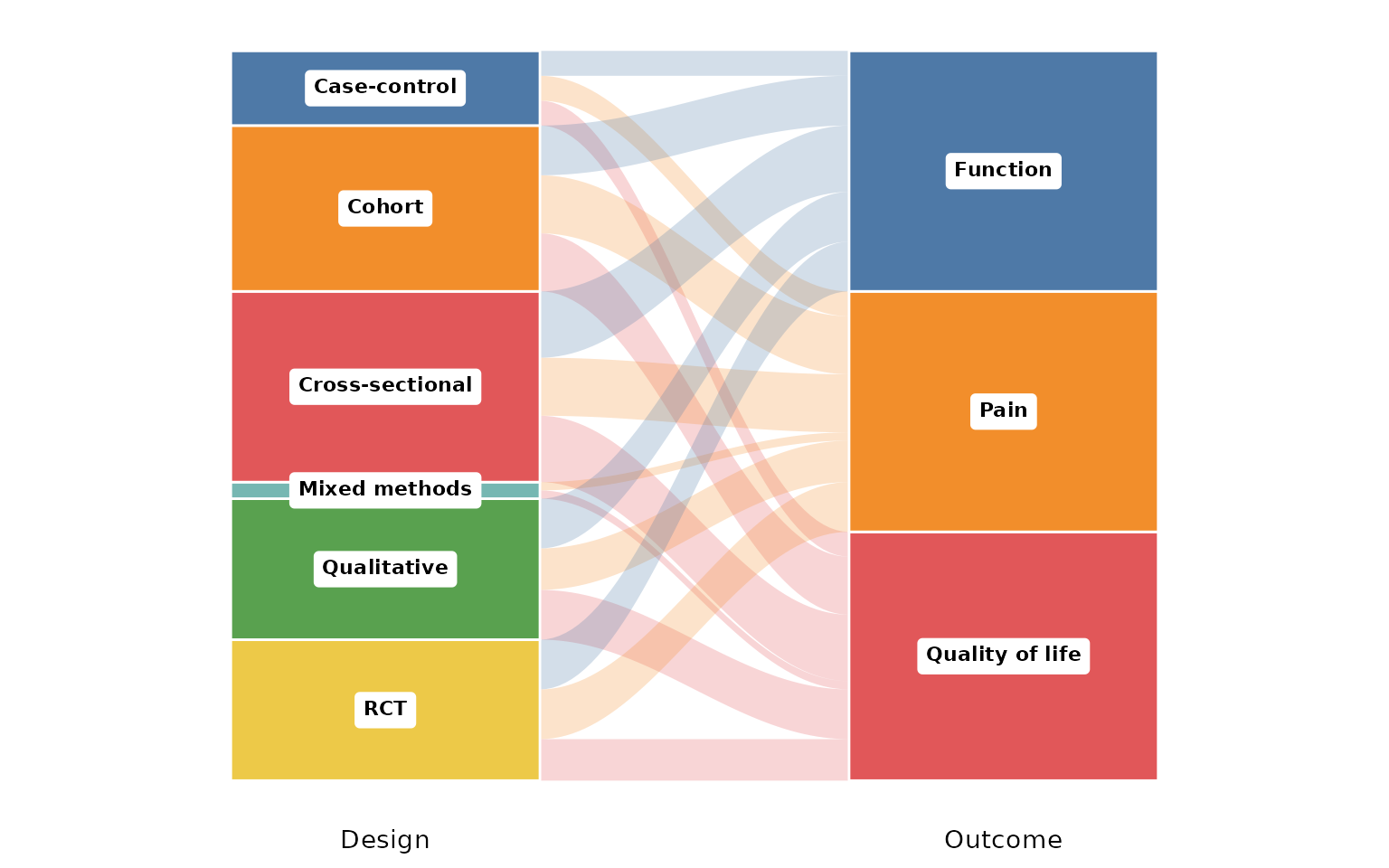

Pass your own vector to recolor the strata (recycled if shorter than the number of categories):

reviewAlluvial(studies, c("Design", "Outcome"),
               colors = c("#4E79A7", "#F28E2B", "#E15759", "#76B7B2",
                          "#59A14F", "#EDC948"))

base_size: overall text and element scaling

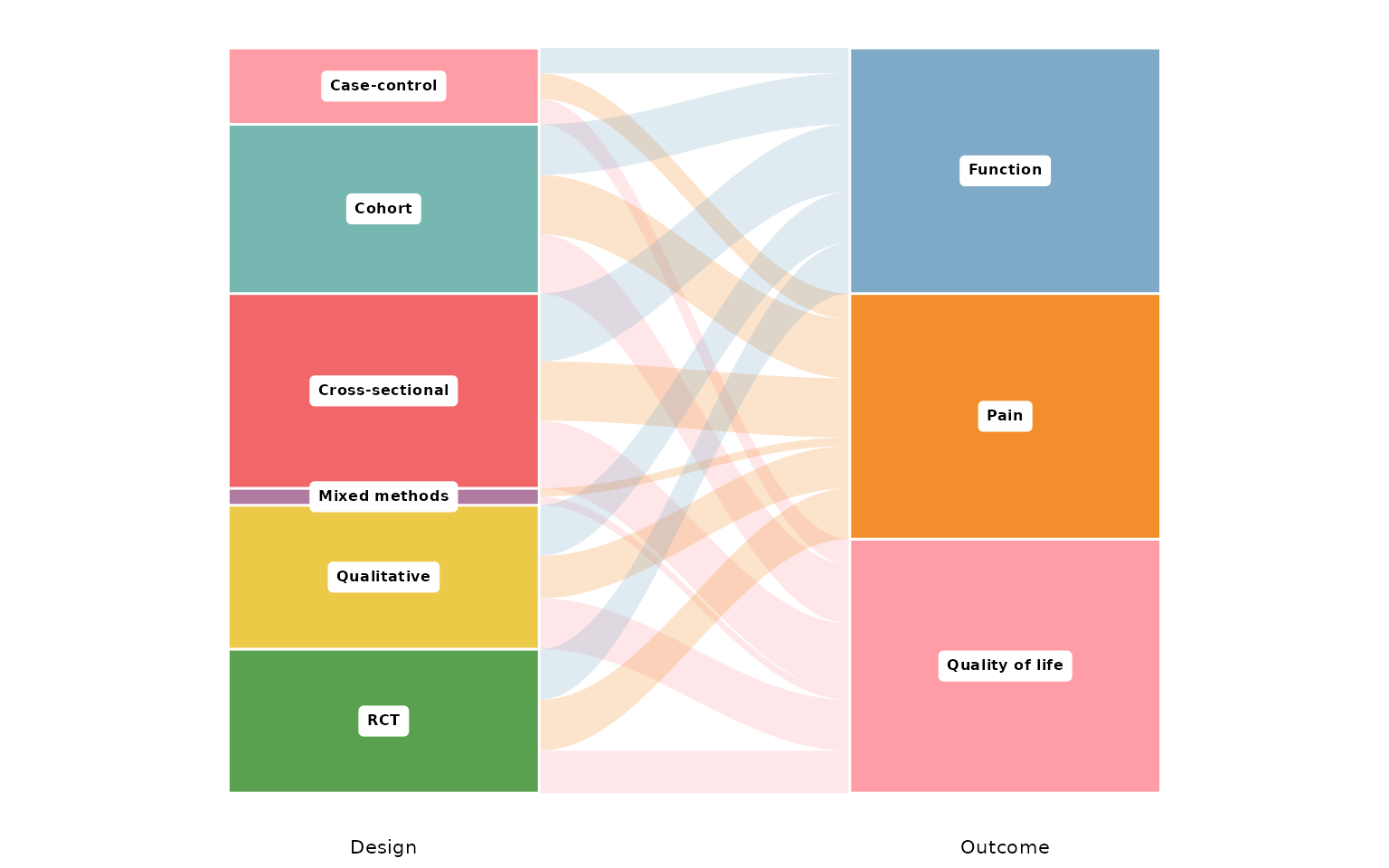

A single knob scales all text and spacing proportionally. Smaller, for multi-panel figures:

reviewAlluvial(studies, c("Design", "Outcome"), base_size = 9)

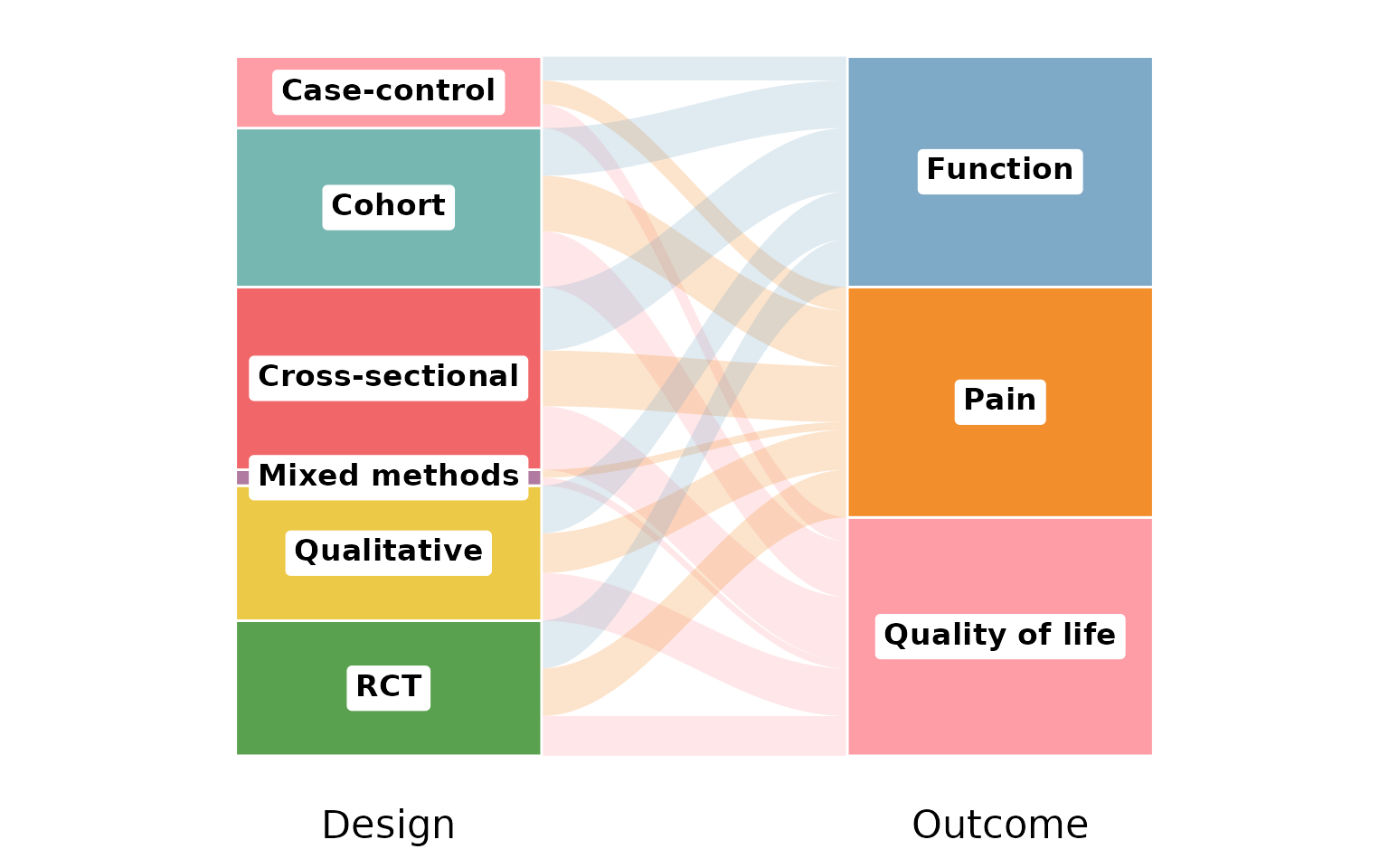

Larger, for slides or posters:

reviewAlluvial(studies, c("Design", "Outcome"), base_size = 18)

Missing data: na.rm and na_label

By default na.rm = TRUE drops studies with a missing (or empty) value in any of the plotted columns. We use RiskOfBias and FundingSource — the latter has missing values:

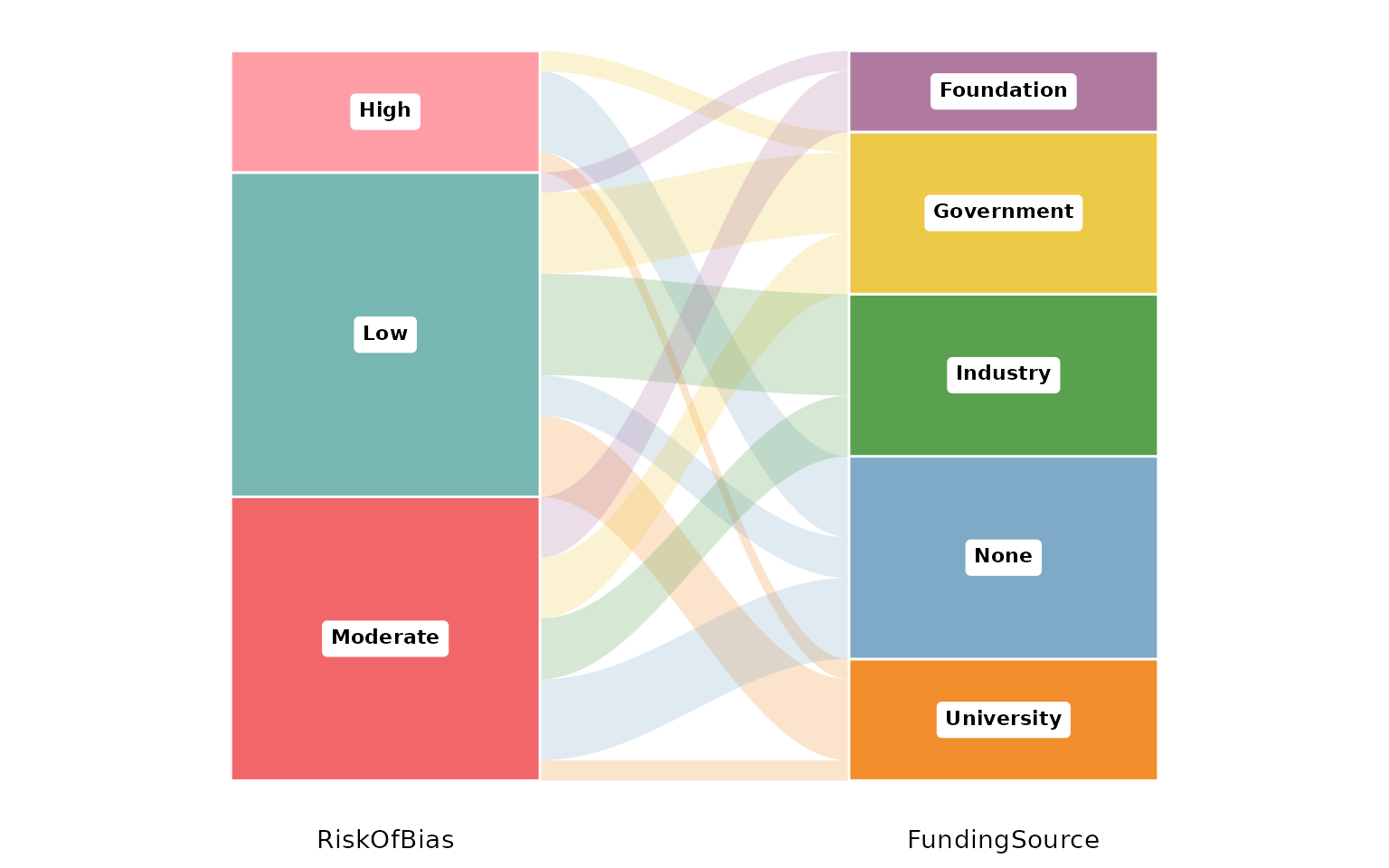

reviewAlluvial(studies, c("RiskOfBias", "FundingSource"))

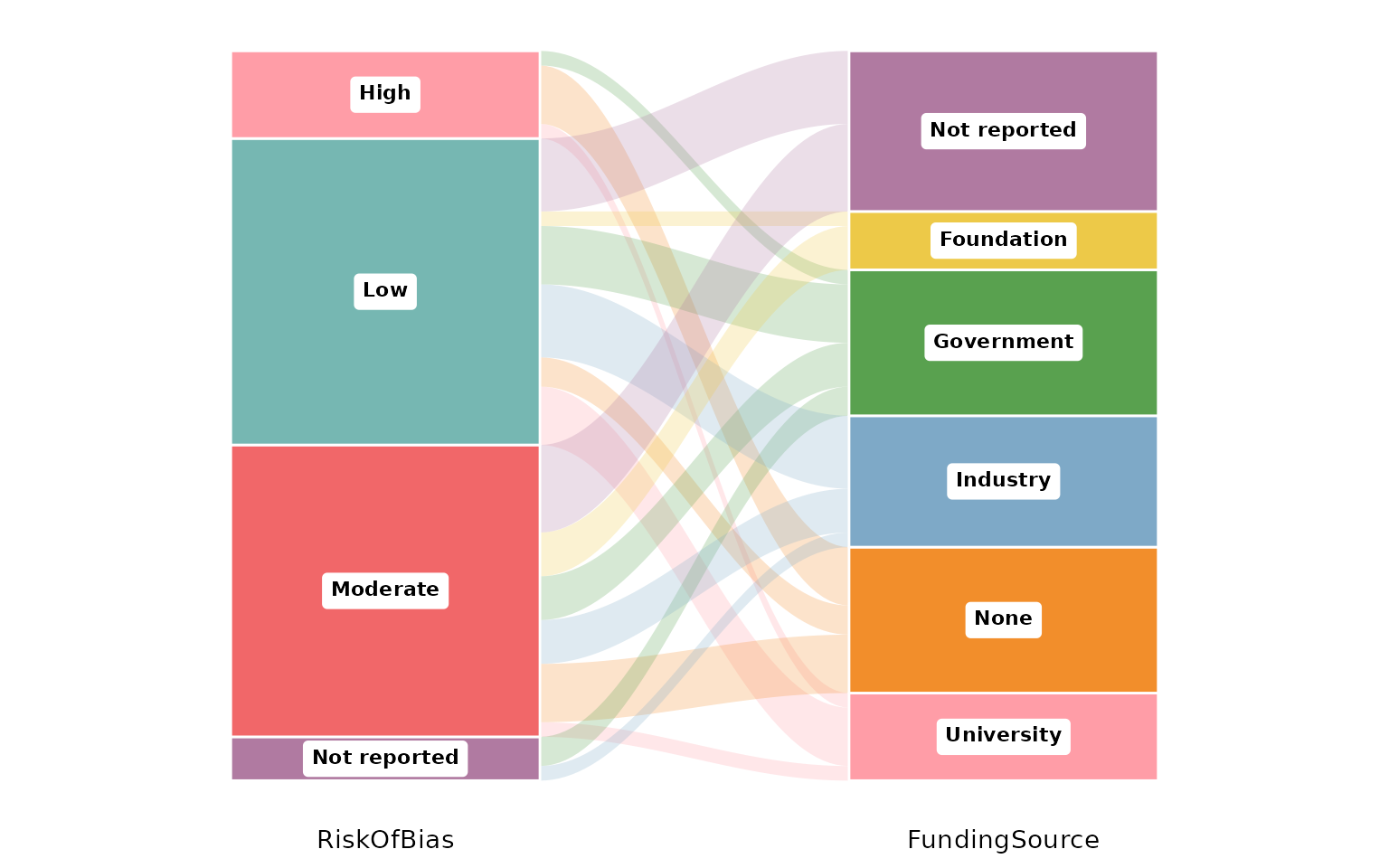

Set na.rm = FALSE to keep the missing values as their own stratum; na_label names it:

reviewAlluvial(studies, c("RiskOfBias", "FundingSource"),
               na.rm = FALSE, na_label = "Not reported")

labels: what to print on each stratum

labels controls the annotation inside each stratum box. The default "none" leaves them bare:

reviewAlluvial(studies, c("Design", "Outcome"), labels = "none")

"count" adds the number of studies in each stratum:

reviewAlluvial(studies, c("Design", "Outcome"), labels = "count")

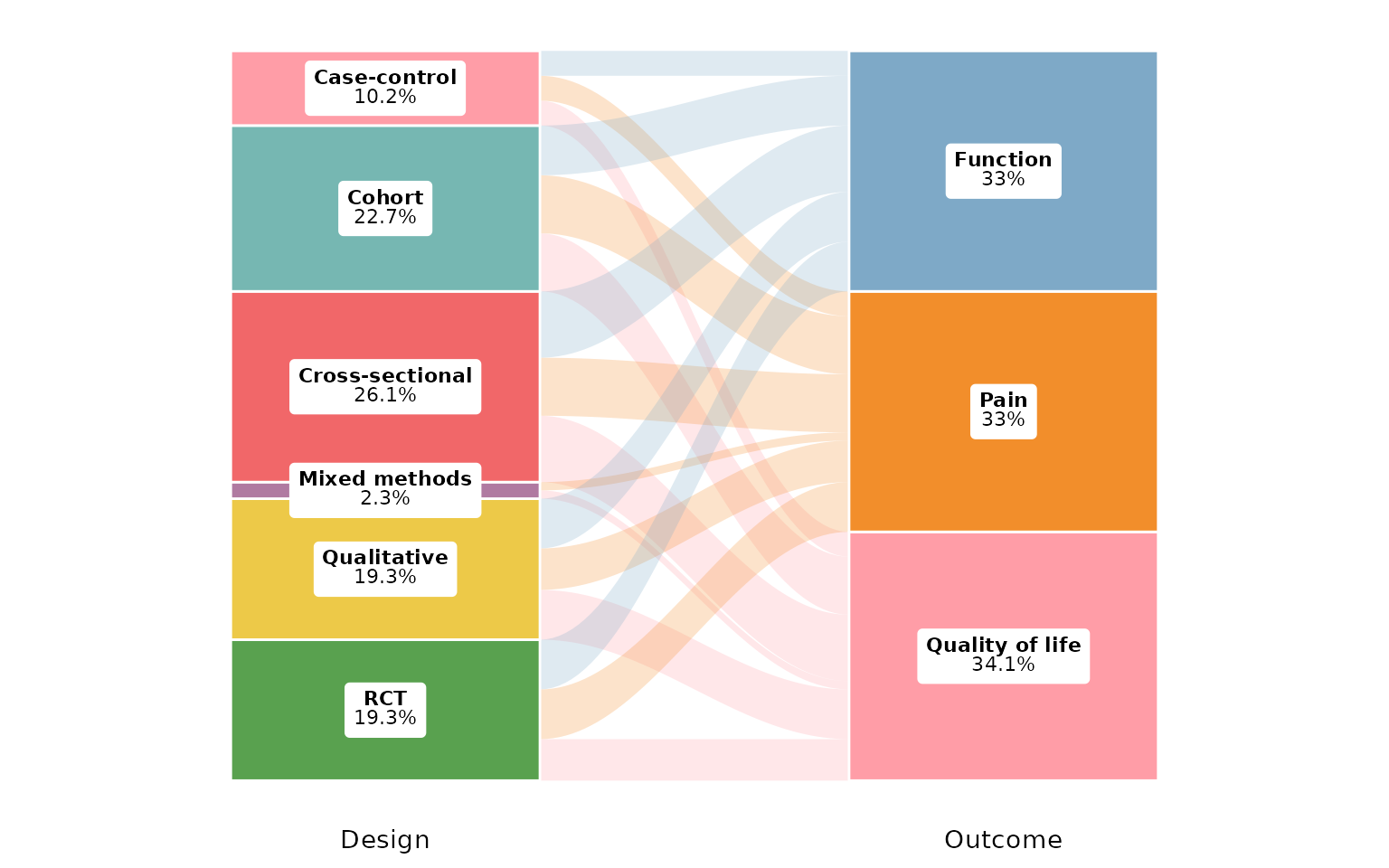

"prop" shows the proportion instead:

reviewAlluvial(studies, c("Design", "Outcome"), labels = "prop")

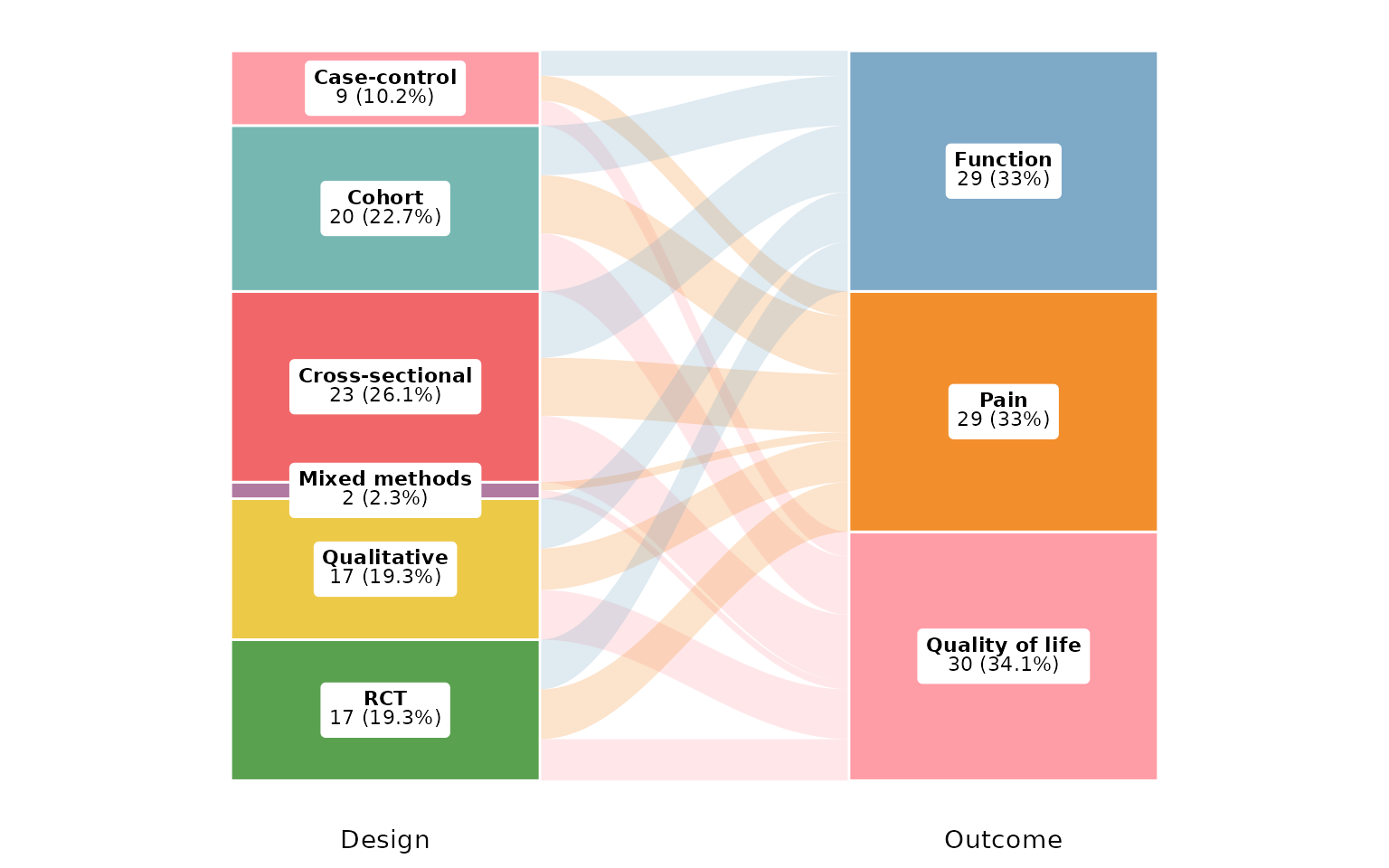

"both" prints count and proportion together:

reviewAlluvial(studies, c("Design", "Outcome"), labels = "both")

flow_labels: counts on the ribbons

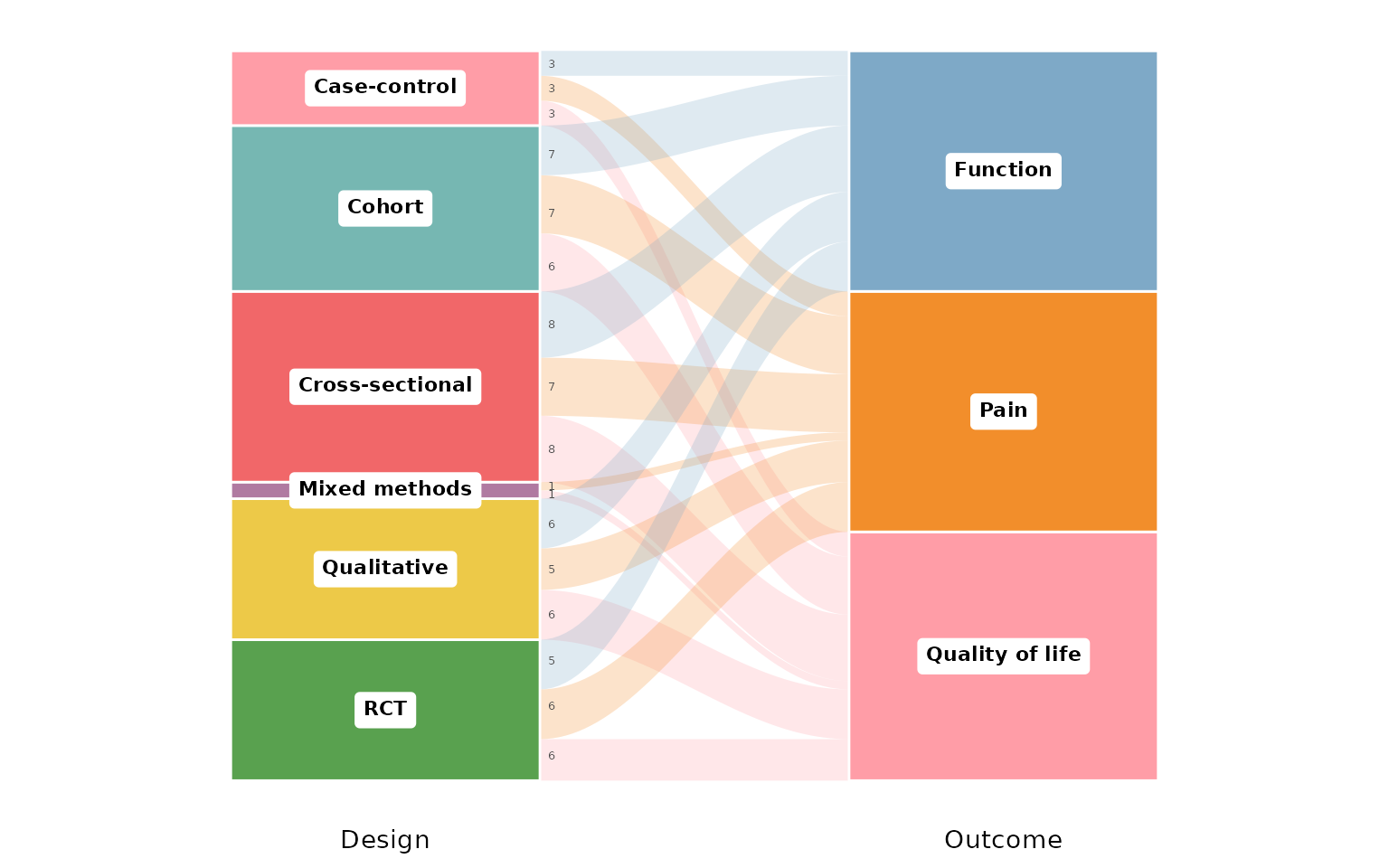

Set flow_labels = TRUE to print the number of studies on each ribbon between strata, making individual co-occurrences legible:

reviewAlluvial(studies, c("Design", "Outcome"), flow_labels = TRUE)

flow_alpha: ribbon transparency

flow_alpha sets the opacity of the ribbons, from 0 (invisible) to 1 (opaque). Low values keep dense diagrams readable by letting overlaps show through:

reviewAlluvial(studies, c("Design", "Outcome"), flow_alpha = 0.15)

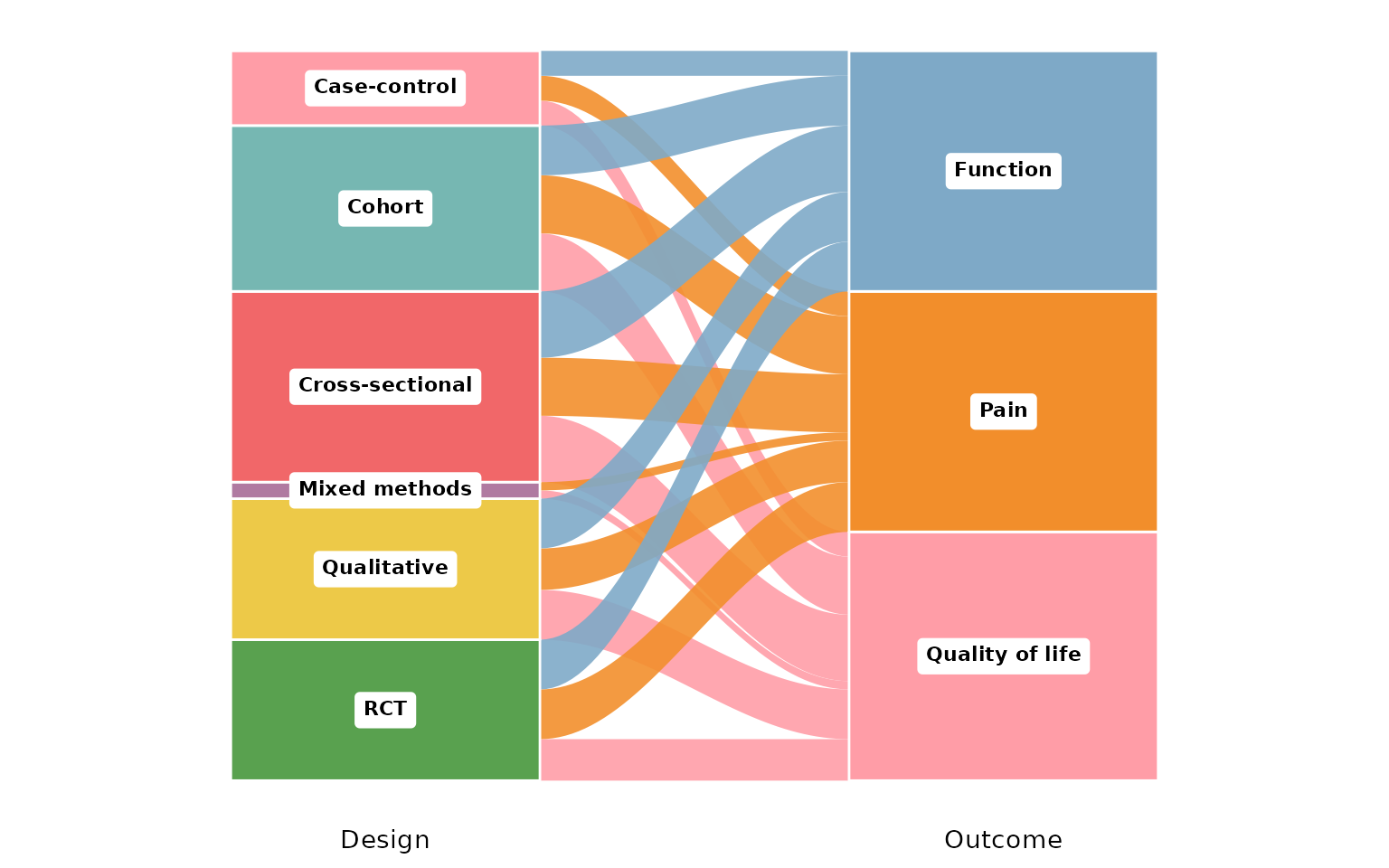

A high value makes the flows bold and solid:

reviewAlluvial(studies, c("Design", "Outcome"), flow_alpha = 0.9)

stratum_width: width of the stratum boxes

stratum_width runs from 0 to 1 (fraction of the axis band). Narrow boxes give the ribbons more room:

reviewAlluvial(studies, c("Design", "Outcome"), stratum_width = 0.2)

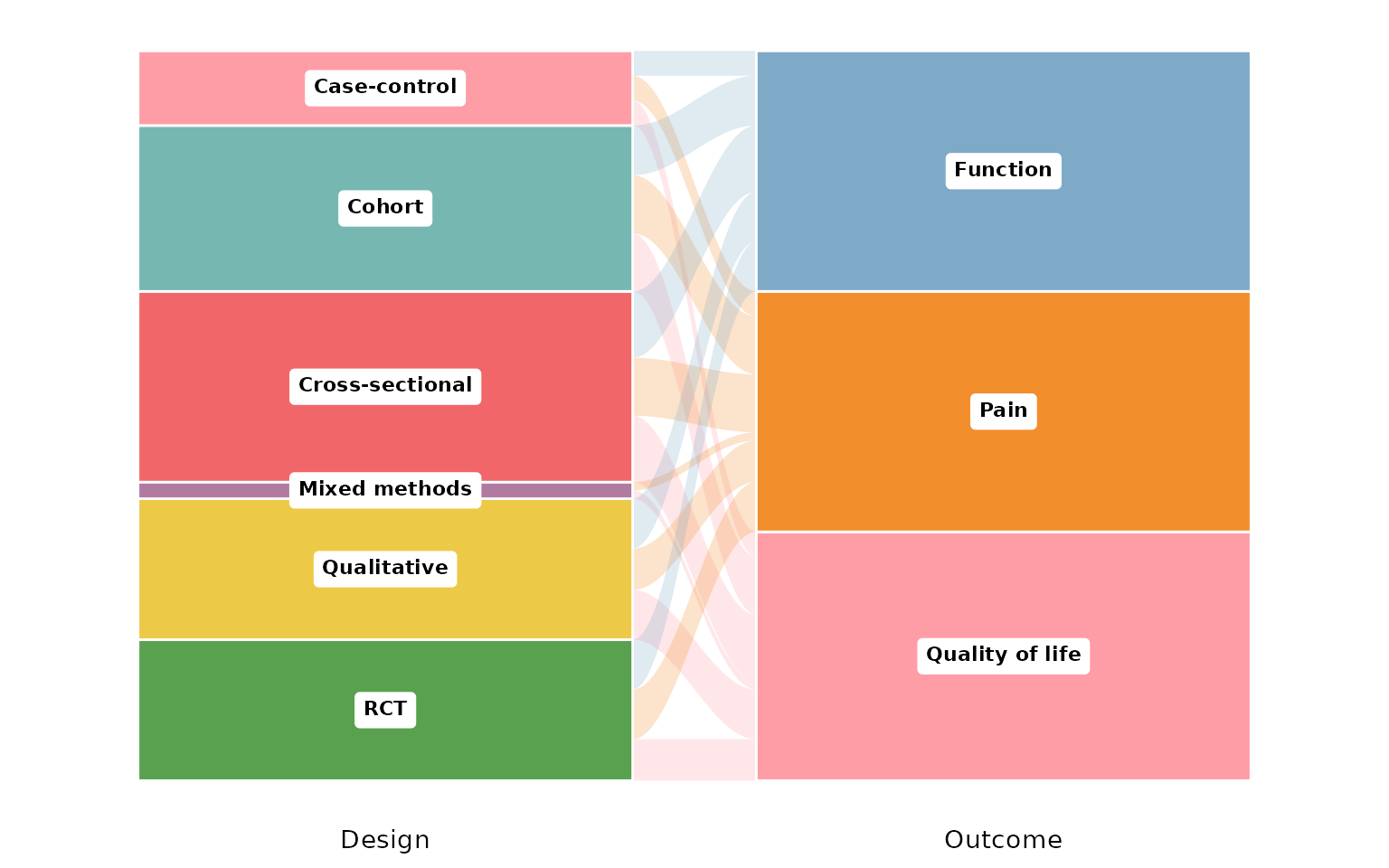

Wide boxes emphasise the strata over the flows:

reviewAlluvial(studies, c("Design", "Outcome"), stratum_width = 0.8)

axis_labels: custom axis titles

By default each axis is titled with its column name. Pass axis_labels, a character vector matching cols, to rename them:

reviewAlluvial(studies, c("Design", "Outcome", "AgeGroup"),
               axis_labels = c("Study design", "Outcome", "Age group"))

Composing with ggplot2

Every review*() function returns a plain ggplot, so you can keep adding layers, scales, and labels with +:

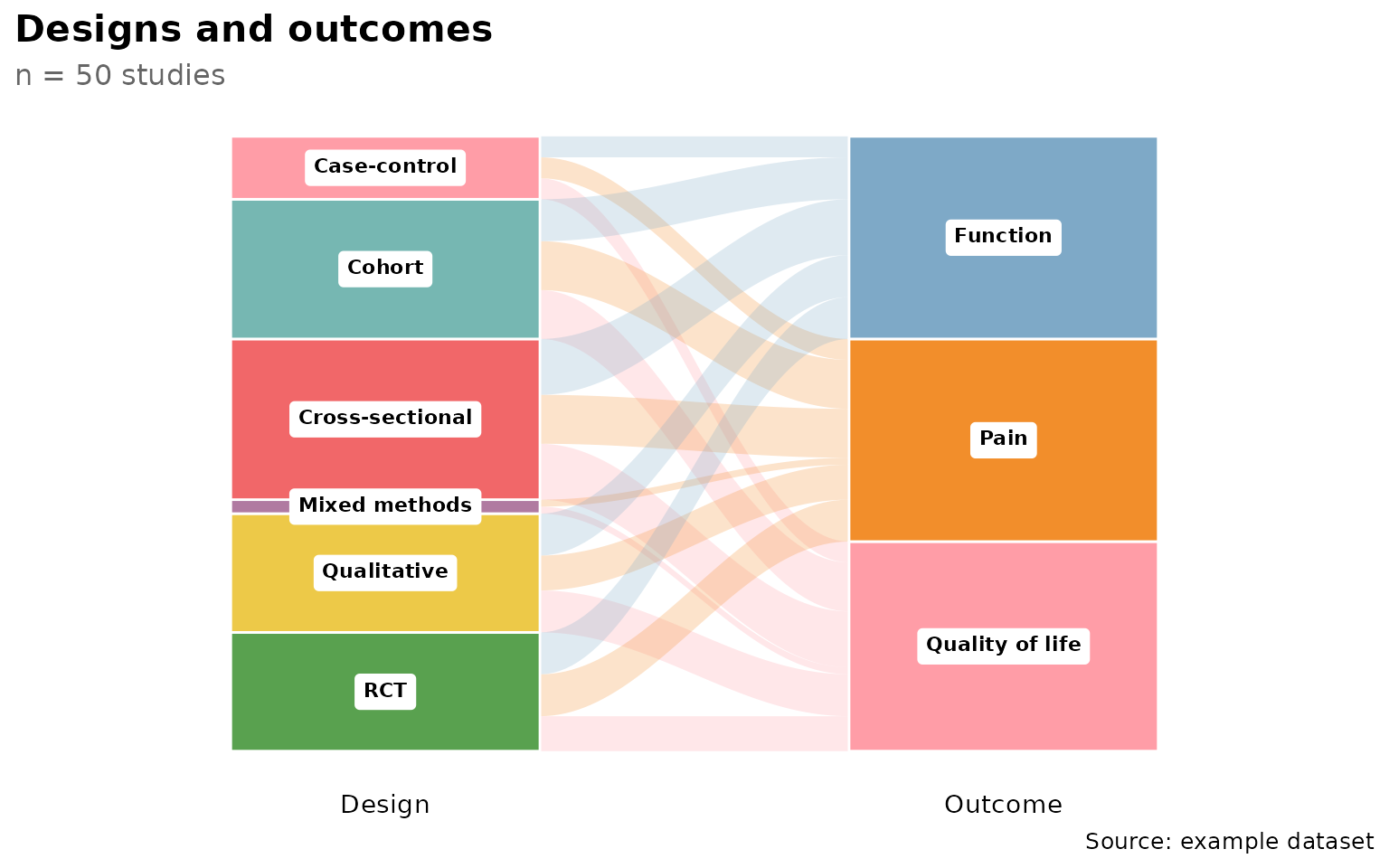

reviewAlluvial(studies, c("Design", "Outcome")) +
  labs(title = "Designs and outcomes", subtitle = "n = 50 studies",
       caption = "Source: example dataset") +
  theme(plot.title.position = "plot")
