Treemaps

library(litReview)
library(ggplot2)
data(studies)

reviewTreemap() displays category frequencies as nested rectangles whose area is proportional to the count — a compact alternative to a bar chart when you have many categories or a second grouping level. It requires the treemapify package. This article walks through every argument of

reviewTreemap(data, col, color_by = NULL, sep = "\r\n", colors = PALETTE,
              base_size = 12, na.rm = TRUE, na_label = "Not reported",
              study_id = StudyID, studlabs = FALSE, border_col = "white")

Default

Pass the data frame and a column. Column names may be bare or quoted. Each distinct value becomes one rectangle, sized by how often it occurs.

reviewTreemap(studies, Design)

col: the column to summarize

Any categorical column works. Multi-value columns — cells holding several values separated by sep — are split first, so each value is counted independently. Intervention is such a column:

reviewTreemap(studies, Intervention)

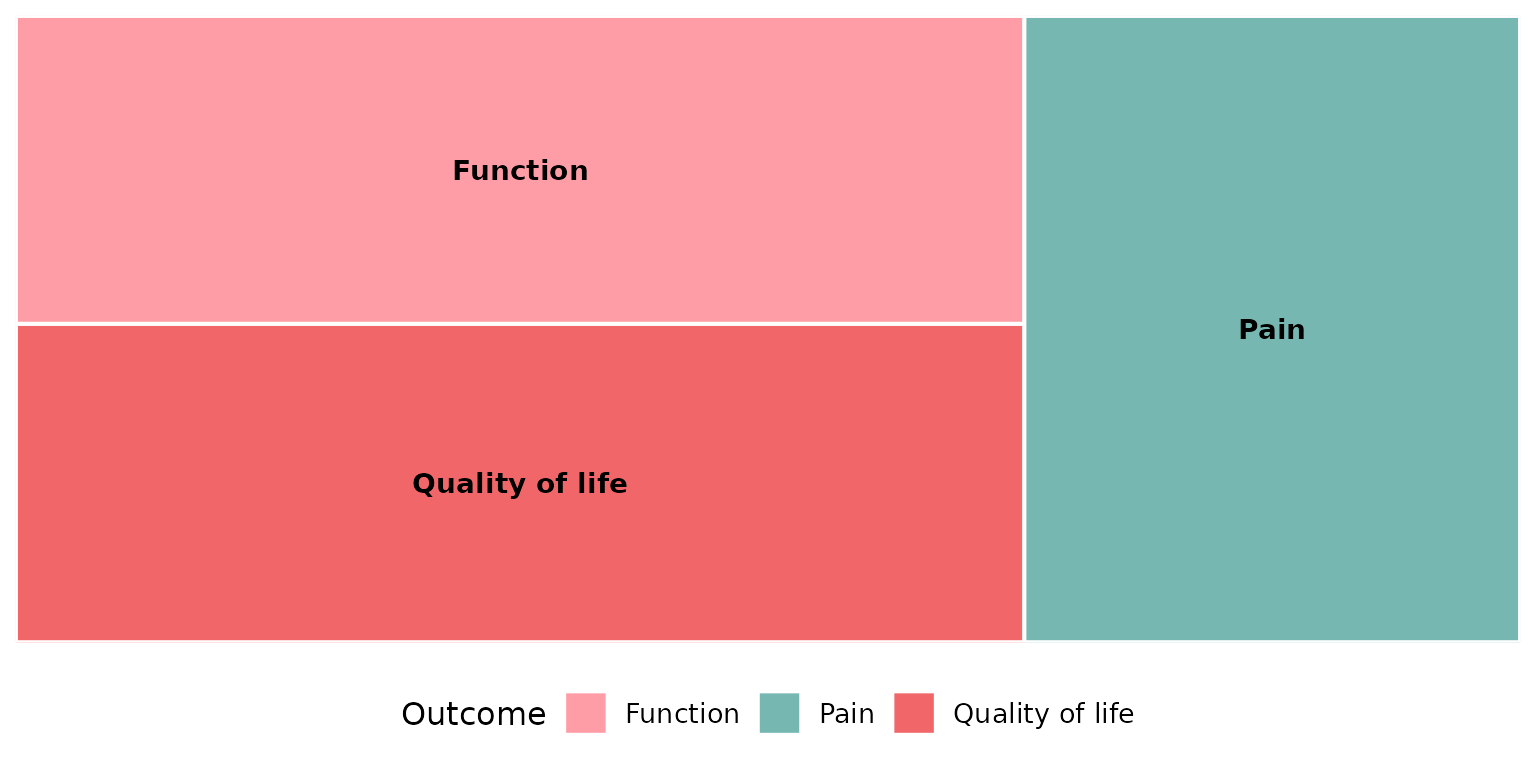

Outcome is another multi-value column:

reviewTreemap(studies, Outcome)

color_by: hierarchical grouping

Supplying color_by nests col inside a higher-order column and colors the tiles by that grouping, with a visible subgroup border. The classic pairing is interventions grouped by their broader type:

reviewTreemap(studies, Intervention, color_by = InterventionType)

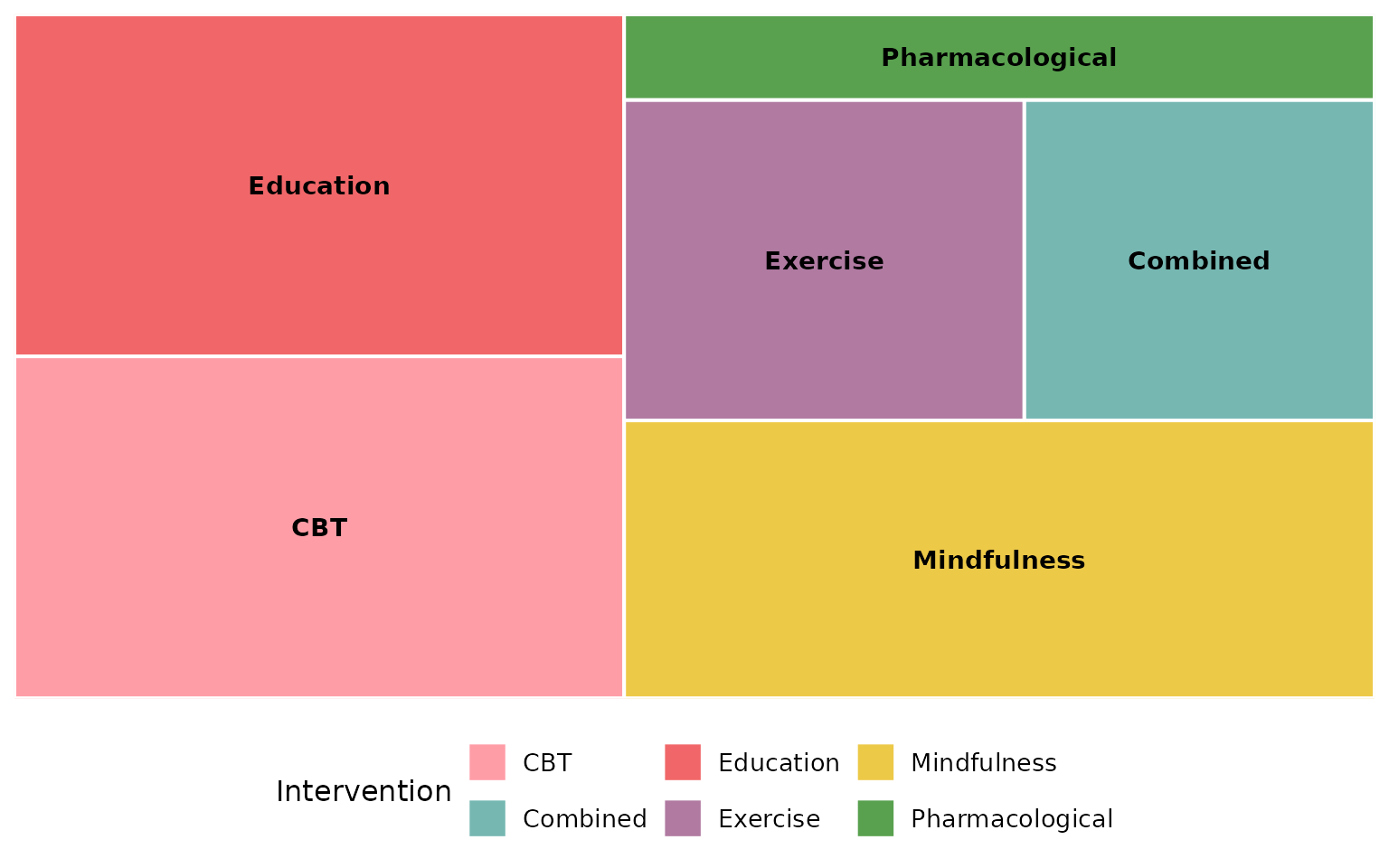

Without color_by (the default NULL), rectangles are simply colored by col itself and there is no grouping:

reviewTreemap(studies, Intervention)

sep: multi-value separator

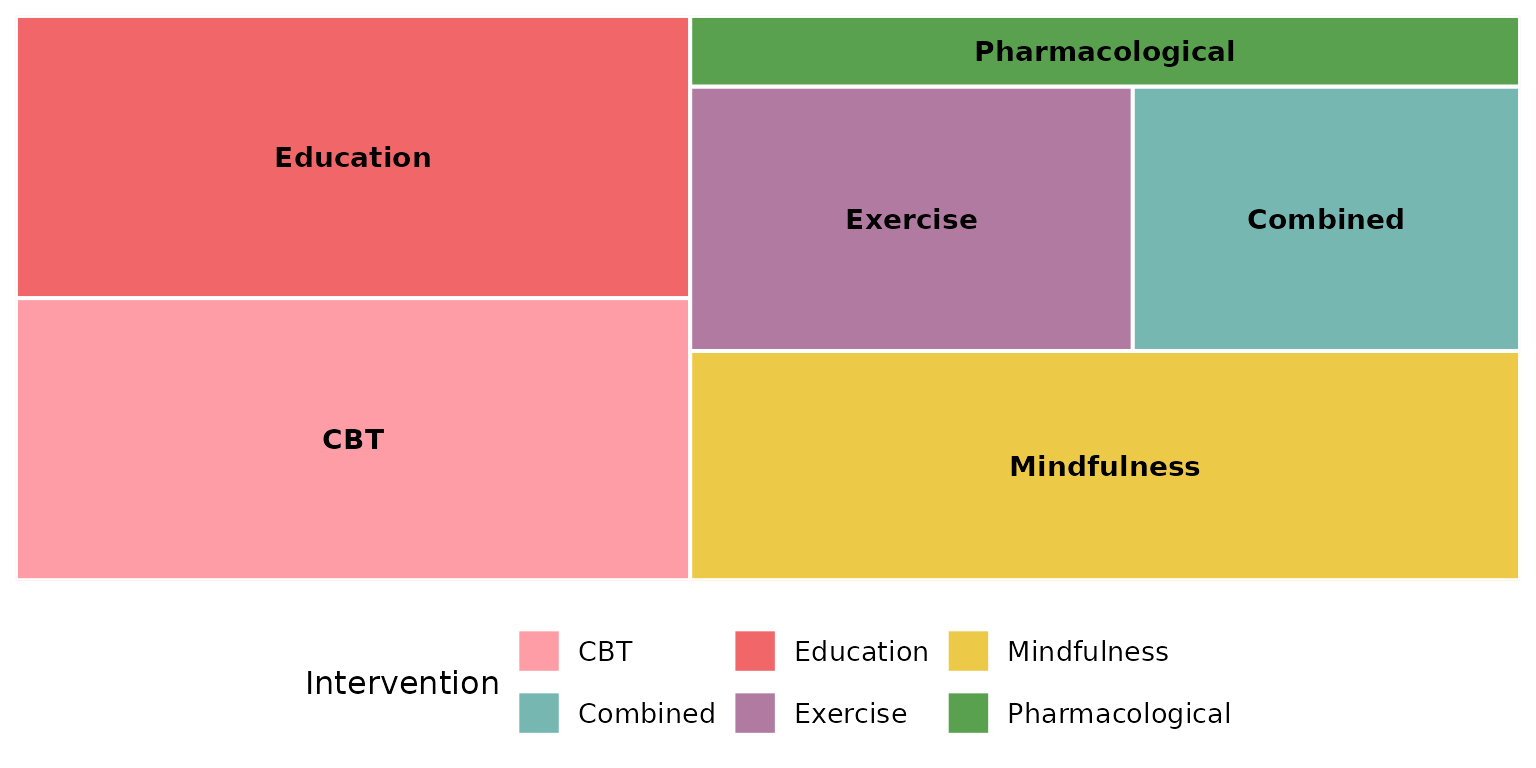

Multi-value cells are split on sep before counting. The default "\r\n" matches the newline-separated cells in studies (used above for Intervention and Outcome). If your data uses a different delimiter, set sep. Here we rebuild a semicolon-separated column to demonstrate:

studies_semi <- studies
studies_semi$Intervention <- gsub("\r\n|\n", "; ", studies_semi$Intervention)
reviewTreemap(studies_semi, Intervention, sep = "; ")

colors: the fill palette

By default tiles are filled from the package PALETTE, cycled to cover the categories:

reviewTreemap(studies, Design, colors = PALETTE)

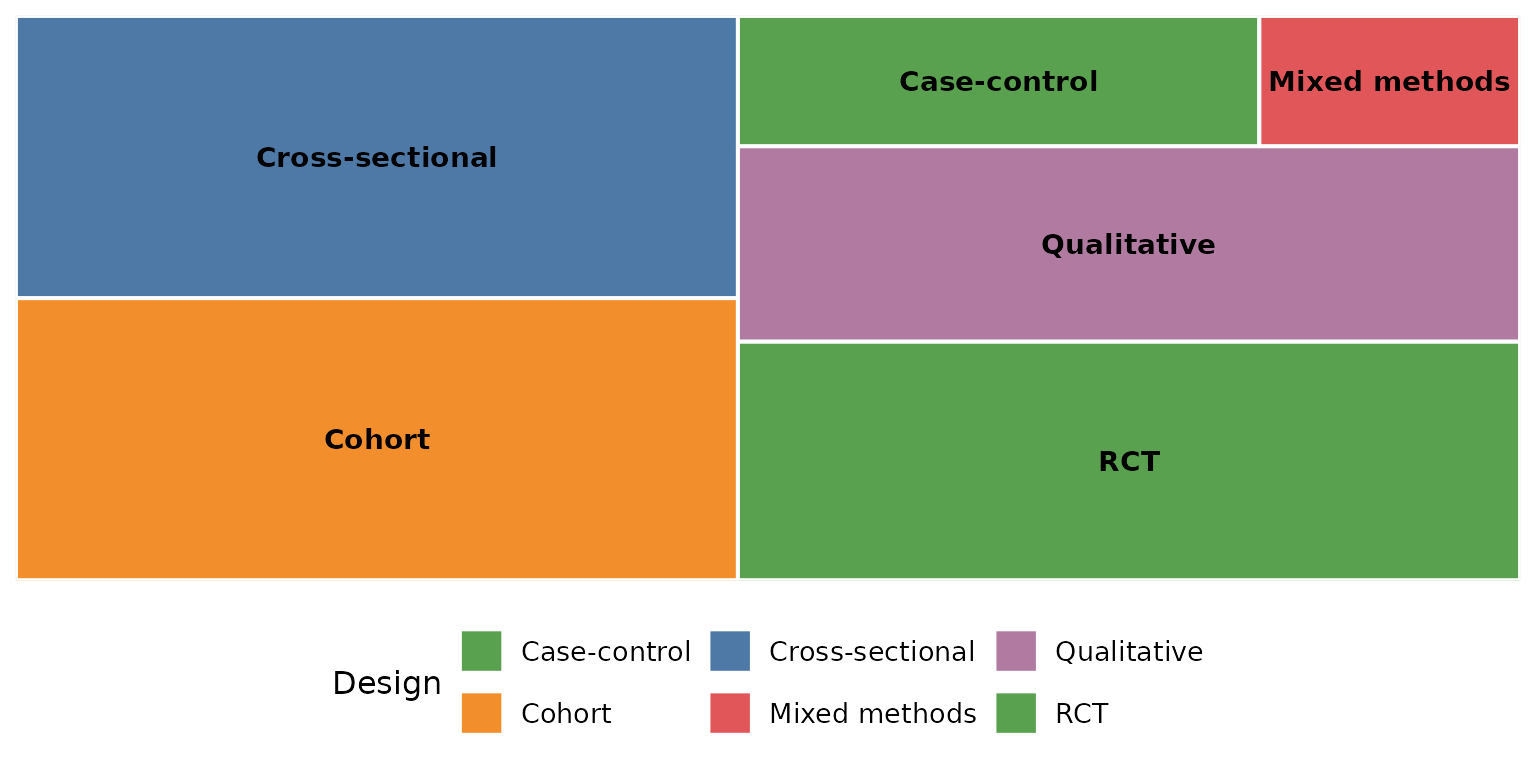

Pass any vector of colors to use your own scheme (recycled if shorter than the number of tiles):

reviewTreemap(studies, Design,
              colors = c("#59a14f", "#f28e2b", "#4e79a7", "#e15759", "#b07aa1"))

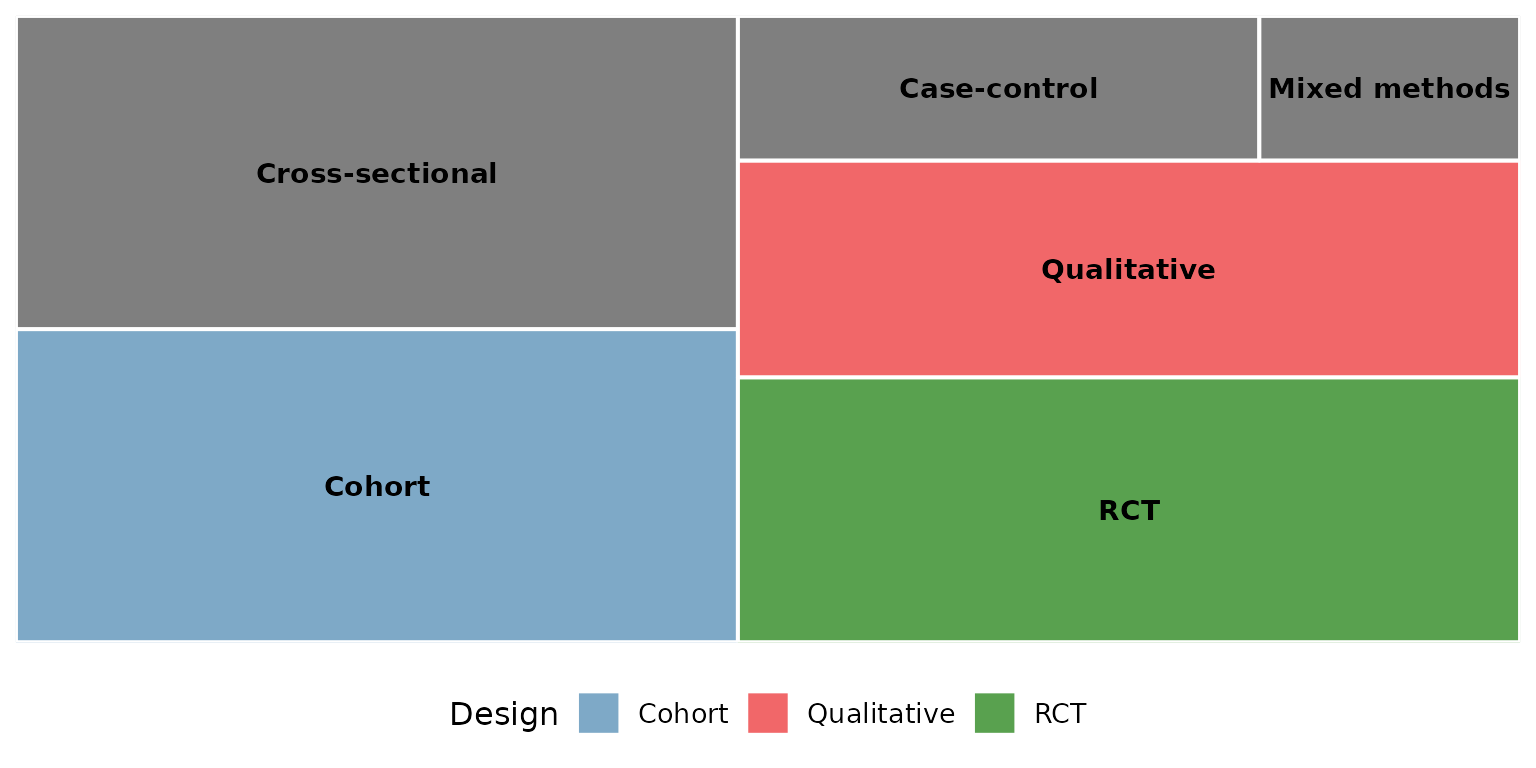

A named vector pins specific colors to specific categories:

reviewTreemap(studies, Design,
              colors = c("Qualitative" = "#f16769",
                         "Cohort"      = "#7ea9c7",
                         "RCT"         = "#59a14f"))

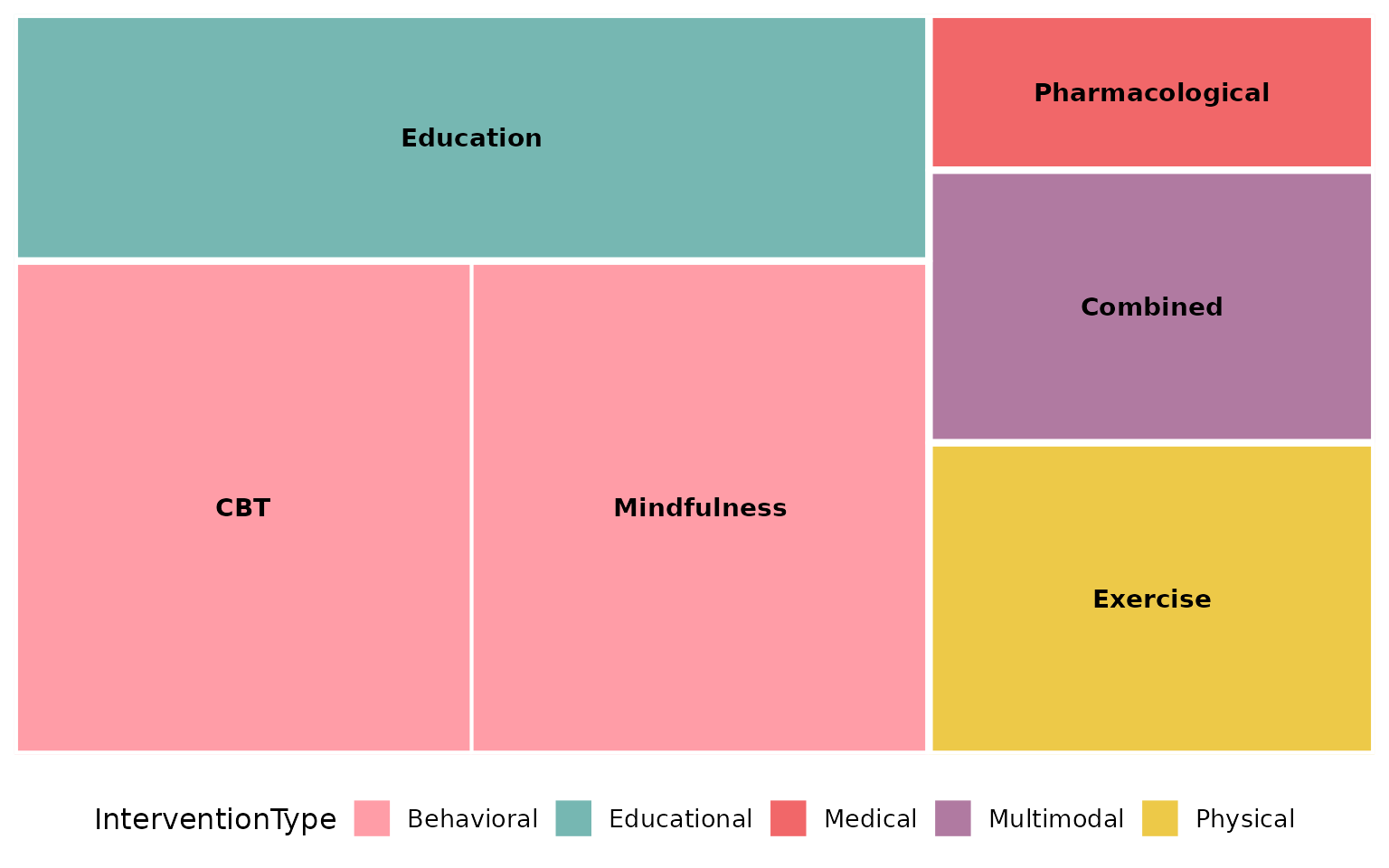

When color_by is set, colors maps onto the grouping column instead:

reviewTreemap(studies, Intervention, color_by = InterventionType,
              colors = PALETTE)

base_size: overall text and element scaling

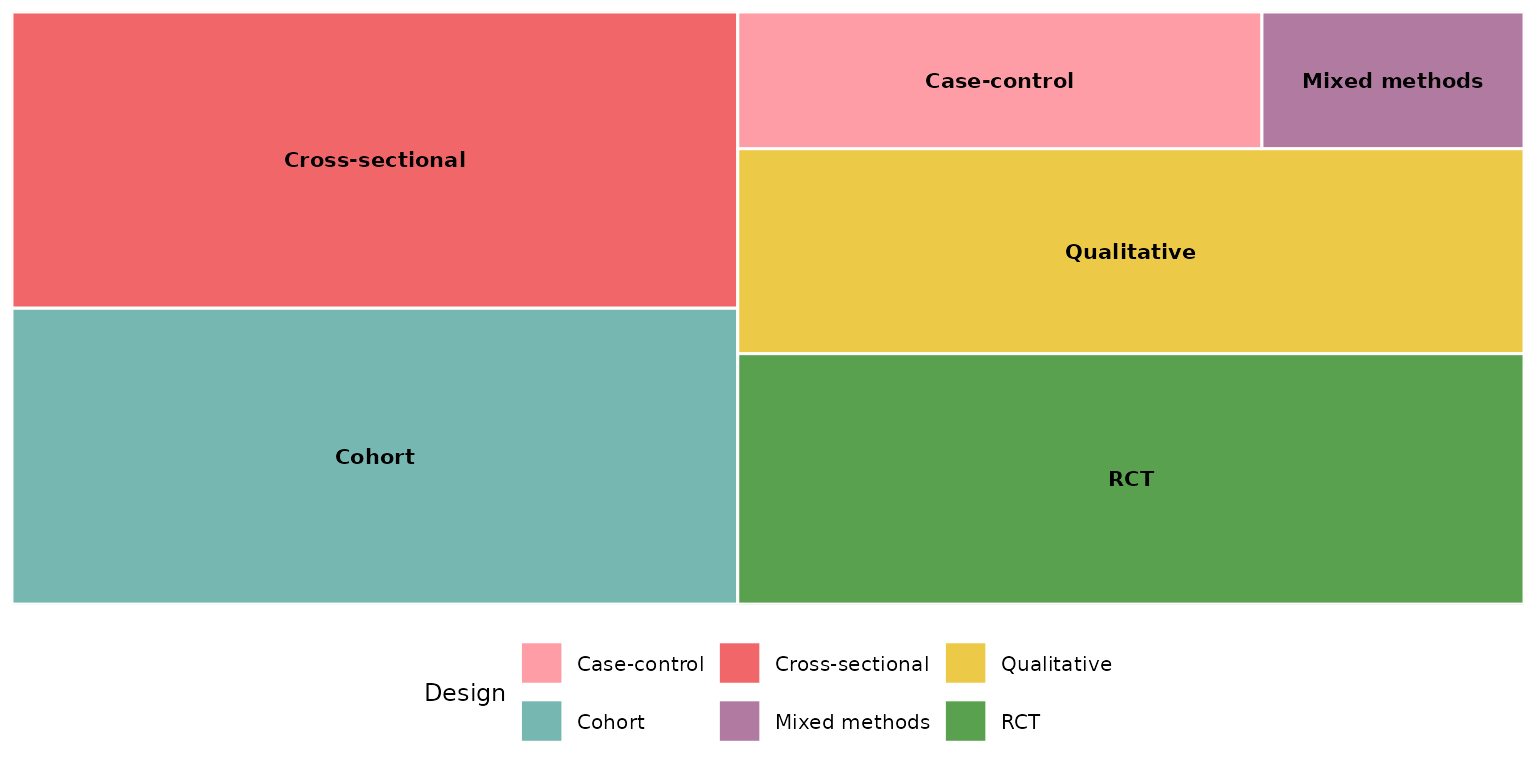

A single knob scales the text (and border thickness) proportionally. Smaller, for multi-panel figures:

reviewTreemap(studies, Design, base_size = 9)

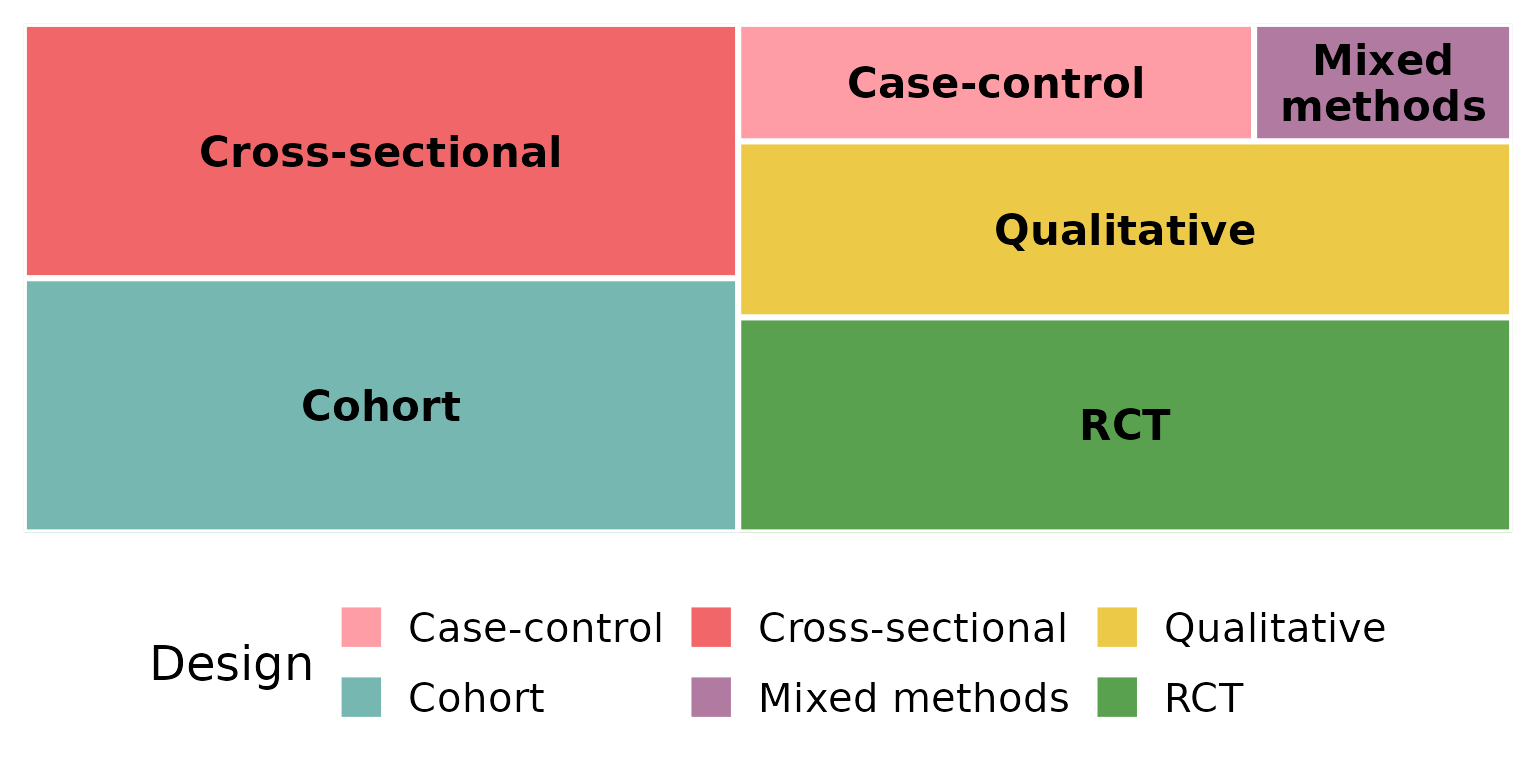

Larger, for slides or posters:

reviewTreemap(studies, Design, base_size = 18)

Missing data: na.rm and na_label

These two arguments control how NA (and empty) cells are treated. We use a column that actually has missing values — FundingSource.

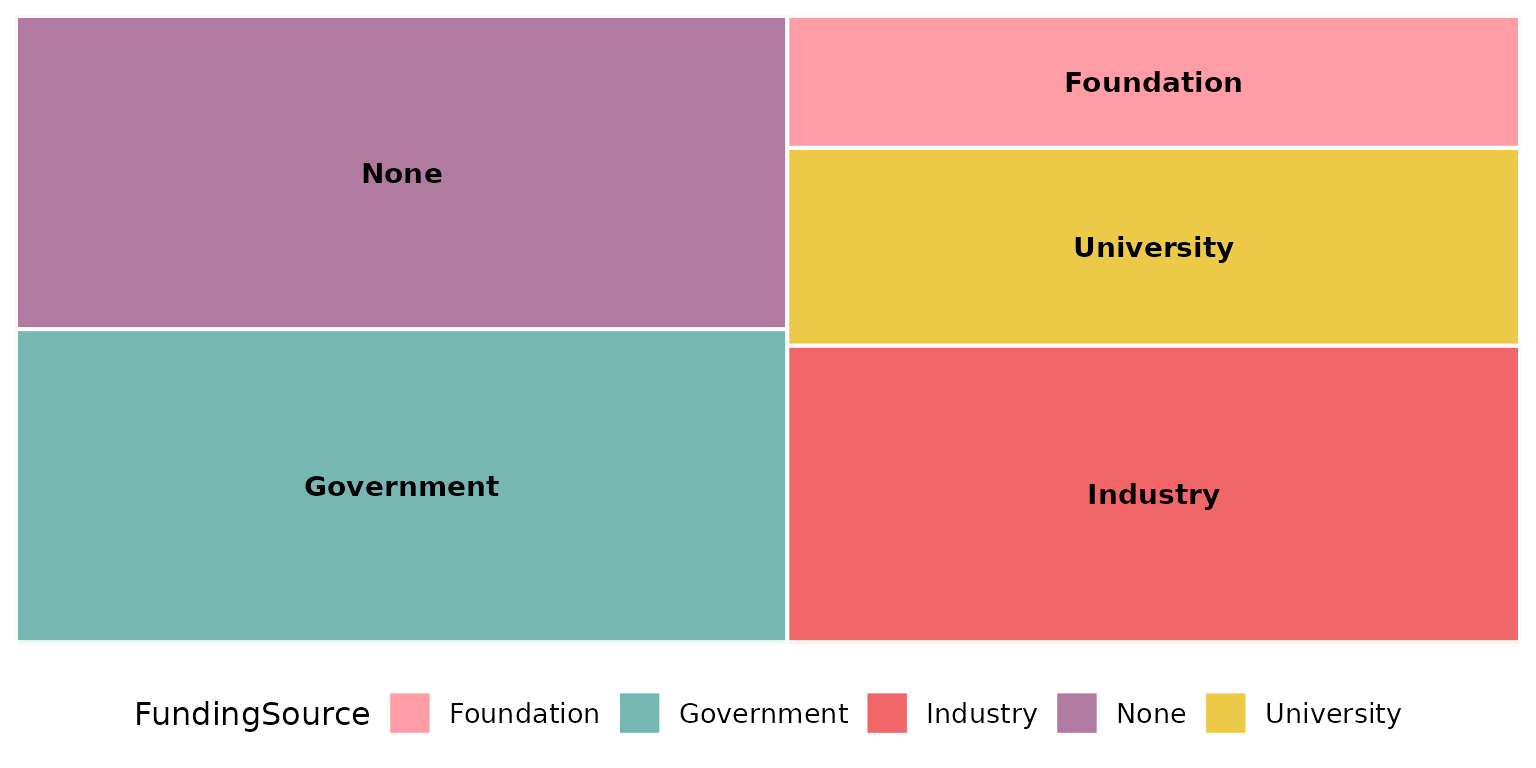

By default na.rm = TRUE drops missing rows entirely, so they contribute no rectangle:

reviewTreemap(studies, FundingSource)

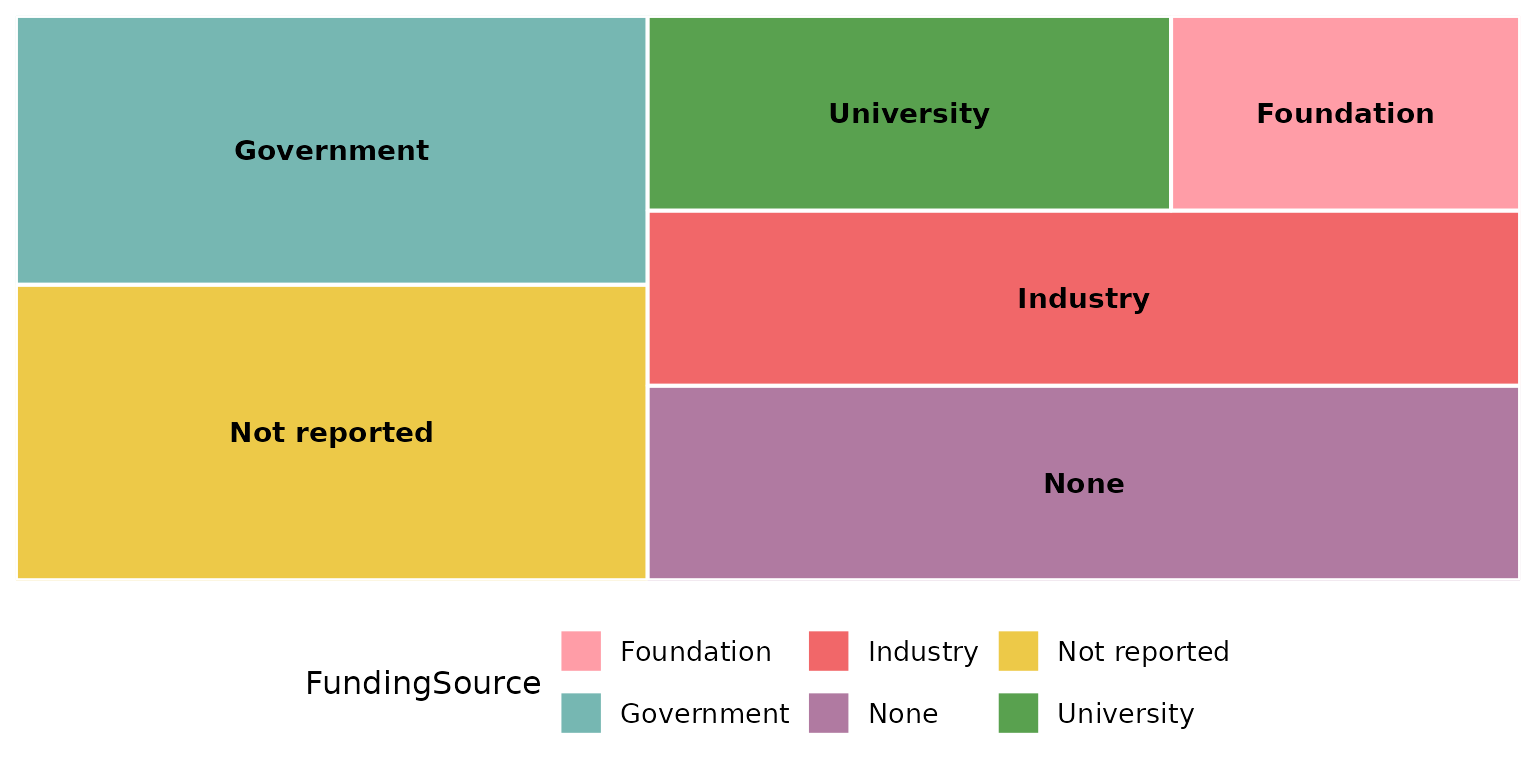

Keep the missing rows as their own tile with na.rm = FALSE; na_label sets its name:

reviewTreemap(studies, FundingSource, na.rm = FALSE, na_label = "Not reported")

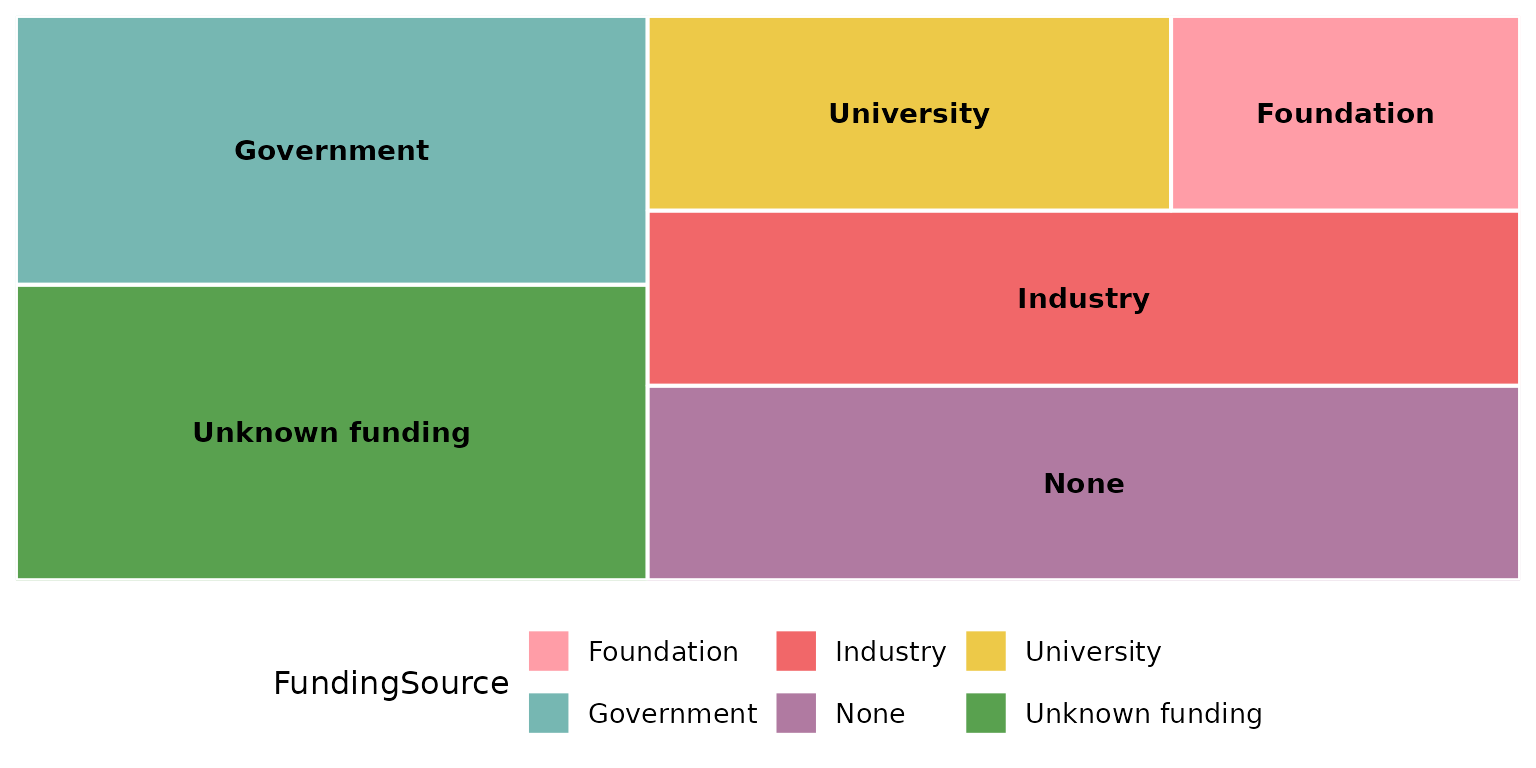

na_label accepts any string:

reviewTreemap(studies, FundingSource, na.rm = FALSE, na_label = "Unknown funding")

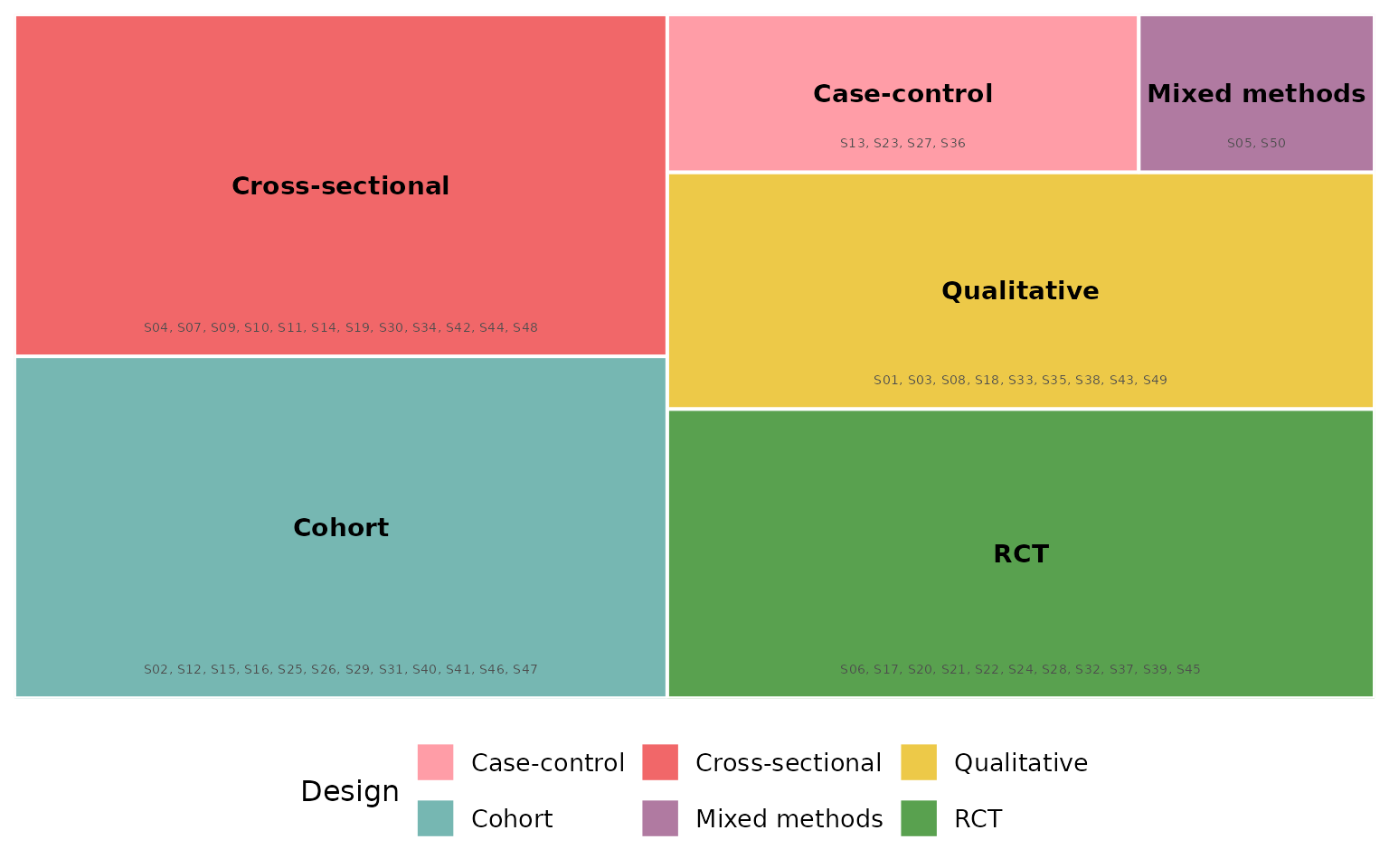

study_id and studlabs: label tiles with study IDs

Set studlabs = TRUE to print the contributing study identifiers inside each rectangle, beneath the category name. This feature relies on the ggfittext package to fit the text.

reviewTreemap(studies, Design, studlabs = TRUE)

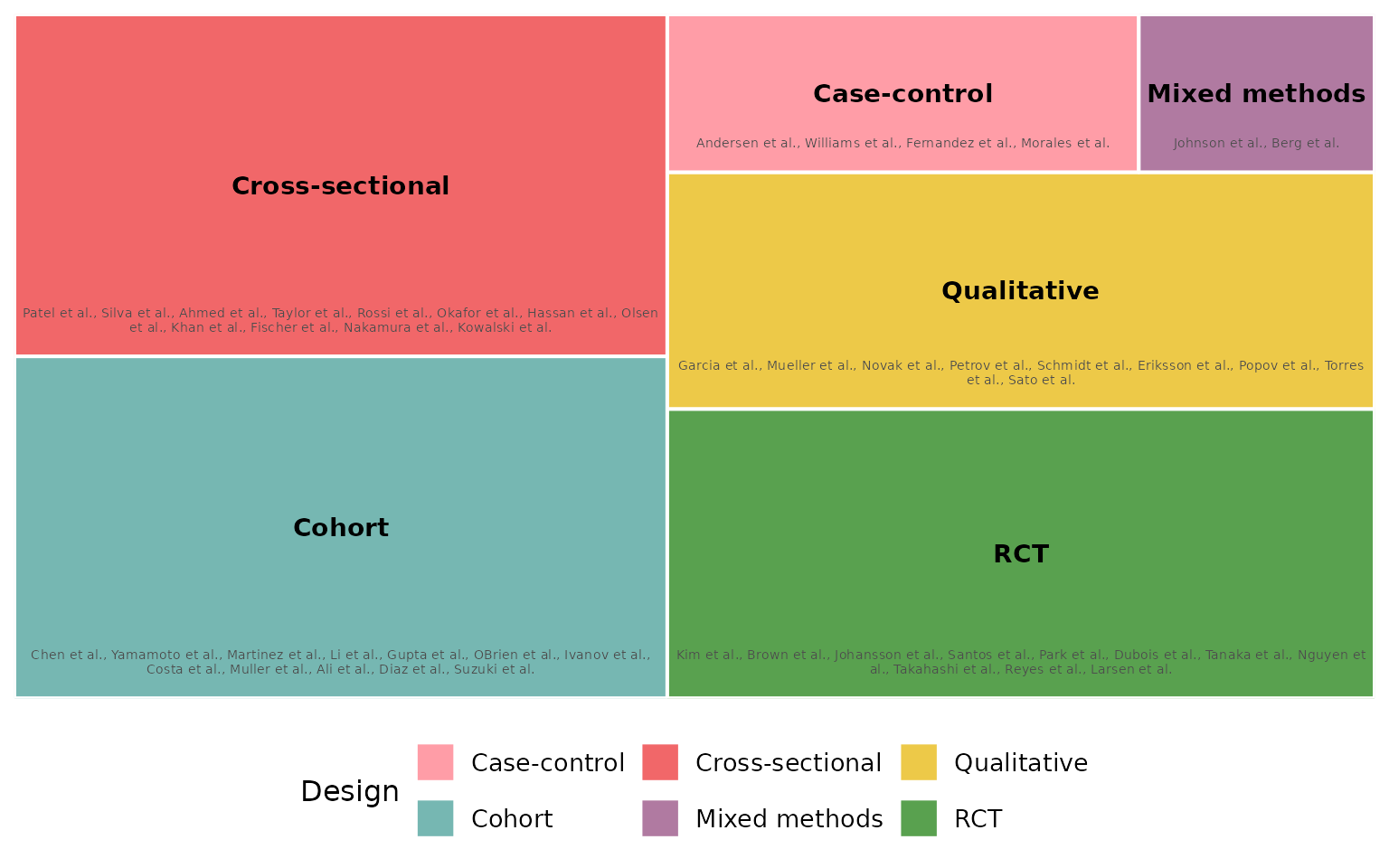

study_id selects which column supplies those identifiers (default StudyID). Here we label with the author instead:

reviewTreemap(studies, Design, studlabs = TRUE, study_id = Author)

border_col: rectangle border color

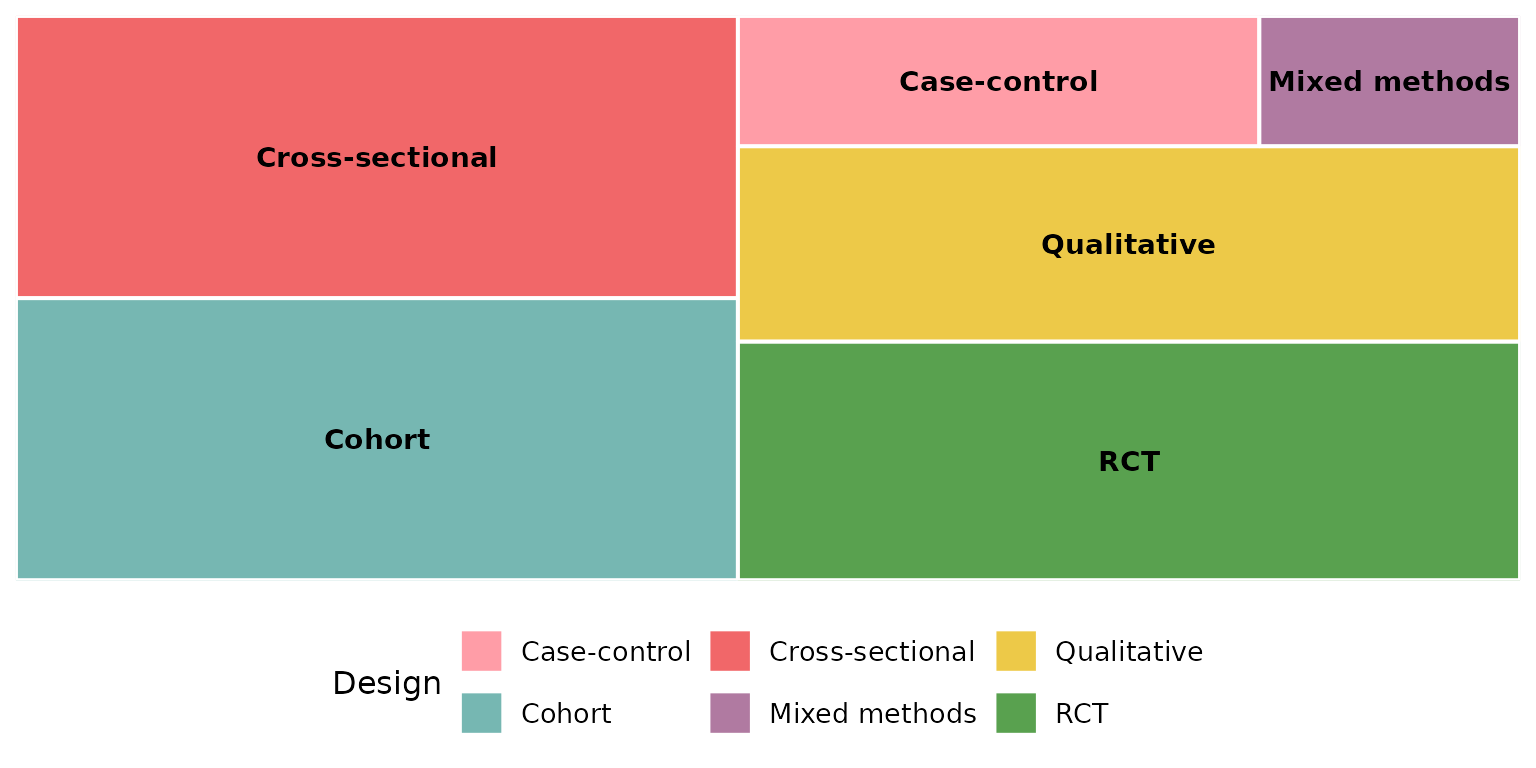

Borders separate adjacent tiles. The default is "white":

reviewTreemap(studies, Design, border_col = "white")

A dark border reads well on light fills:

reviewTreemap(studies, Design, border_col = "grey20")

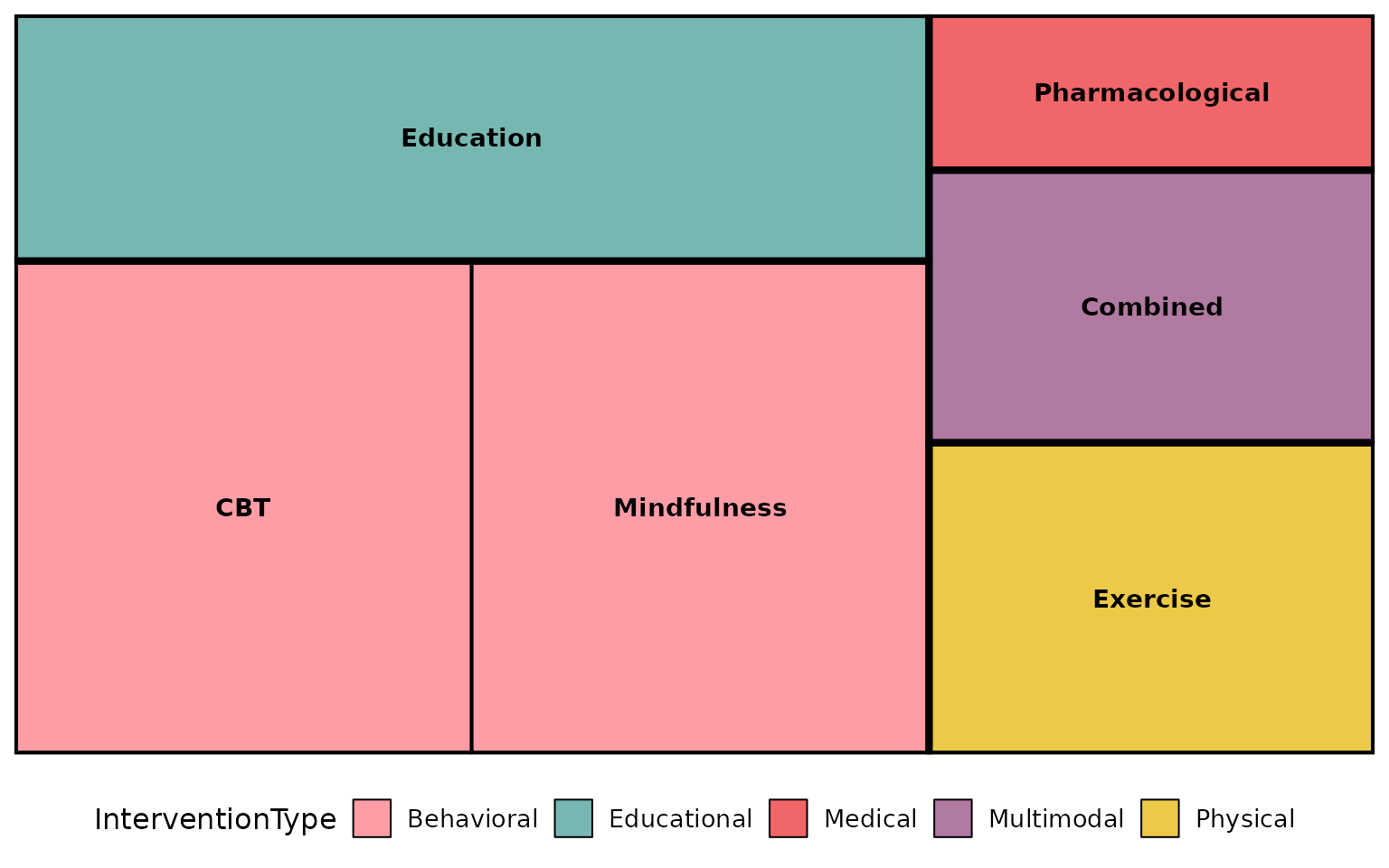

Pure black gives the strongest separation, and also outlines the subgroups when color_by is used:

reviewTreemap(studies, Intervention, color_by = InterventionType,
              border_col = "black")

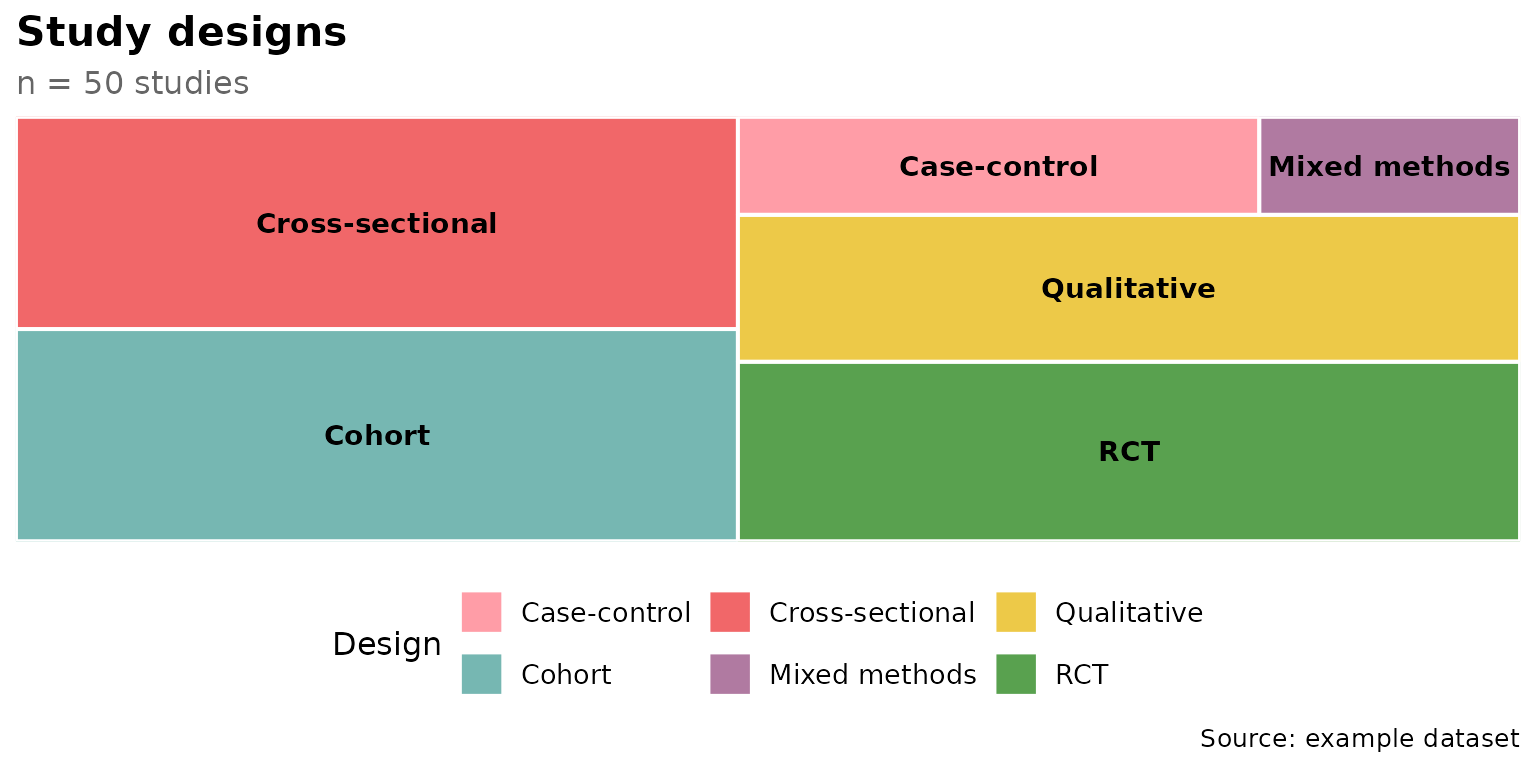

Composing with ggplot2

Every review*() function returns a plain ggplot, so you can keep adding layers, scales, and labels with +:

reviewTreemap(studies, Design) +
  labs(title = "Study designs", subtitle = "n = 50 studies",
       caption = "Source: example dataset") +
  theme(plot.title.position = "plot")
