Coding matrices

library(litReview)
library(ggplot2)
data(studies)

reviewMatrix() draws an evidence / coding matrix: one row per study, one column per criterion, and a tile wherever a study addresses a criterion. The tile fill encodes an optional per-study attribute (such as publication type) and the letter inside each tile is that cell’s own value — a coding level such as F/P/M. Column headers can carry the number of studies addressing each criterion. This article walks through every argument of

reviewMatrix(data, cols, color_by = NULL, study_id = StudyID,
             levels = NULL, colors = PALETTE, show_counts = TRUE,
             base_size = 12, label_wrap = 20,
             empty_fill = "#FCFCE6", tile_color = "white")

Input shape

The input is wide: one row per study, a study-id column, an optional grouping column for the fill, and one column per criterion holding the cell code (or NA/"" where the study does not address that criterion). The bundled studies data carries a block of methodological reporting criteria coded exactly this way — "F" full, "P" partial, "M" only mentioned, NA not addressed — plus a PubType column to colour by:

criteria <- c("Randomization", "Blinding", "SampleJustification",
              "AttritionReported", "EthicsApproval", "Preregistration",
              "EffectSize", "LimitationsDiscussed")
studies[1:6, c("StudyID", "PubType", "Randomization", "EthicsApproval")]
#>   StudyID    PubType Randomization EthicsApproval
#> 1     S01 Conference          <NA>              P
#> 2     S02    Journal          <NA>              F
#> 3     S03 Conference          <NA>              F
#> 4     S04 Conference          <NA>           <NA>
#> 5     S05    Journal          <NA>           <NA>
#> 6     S06 Conference             P              F

To keep the figures legible we plot a subset of studies; pass the full data frame to show them all.

sel <- studies[1:22, ]

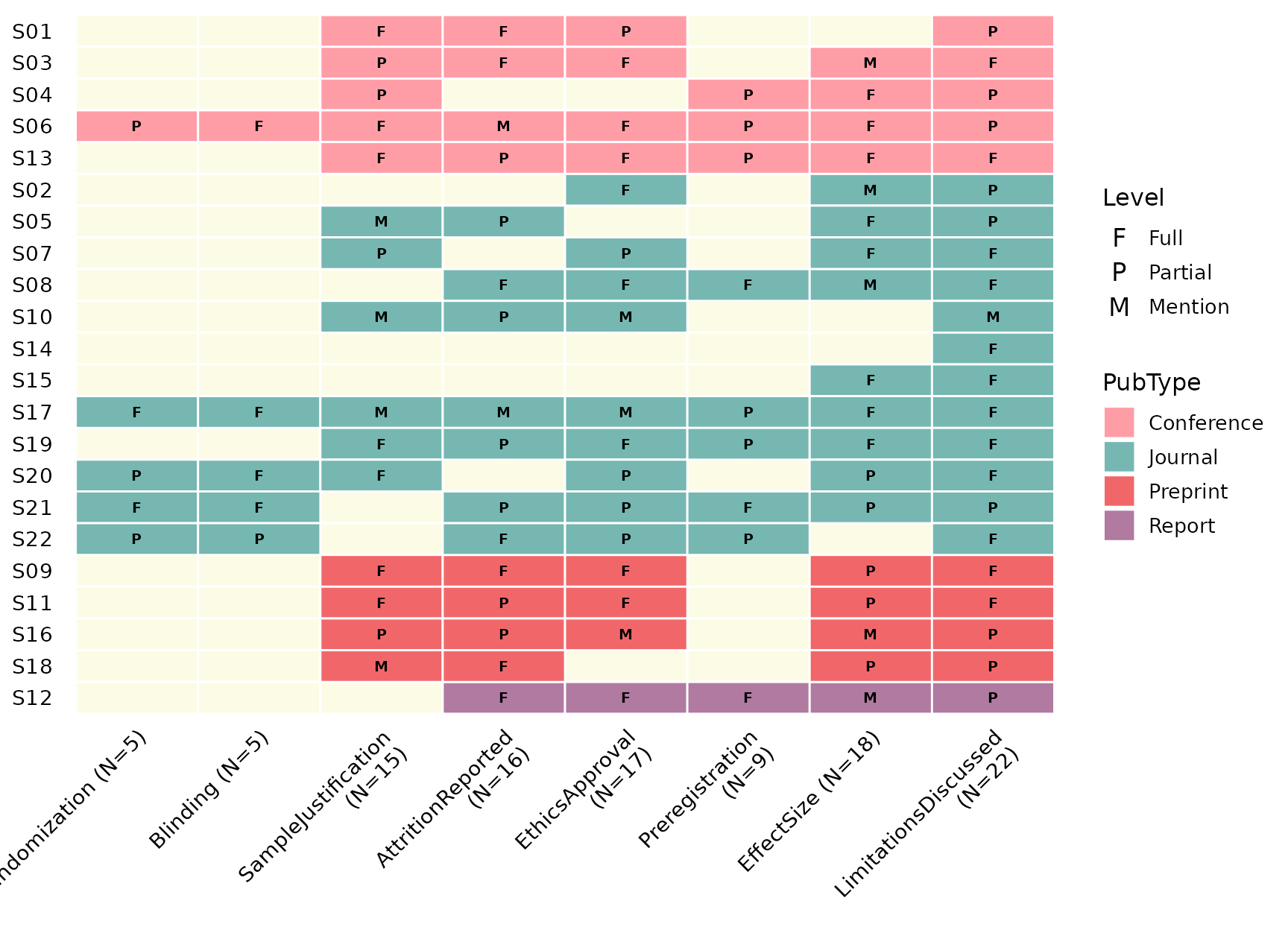

Default

Pass the data frame and the vector of criterion columns. Each coded cell becomes a tile carrying its letter; blank cells stay empty. Here we also colour by PubType and describe the level codes — the two most common additions:

reviewMatrix(sel, criteria, color_by = "PubType",
             levels = c(F = "Full", P = "Partial", M = "Mention"))

Randomization and blinding are trial-only items, so they are blank for the non-RCT studies — a faithful, if sparse, corner of the matrix.

cols: the criterion columns

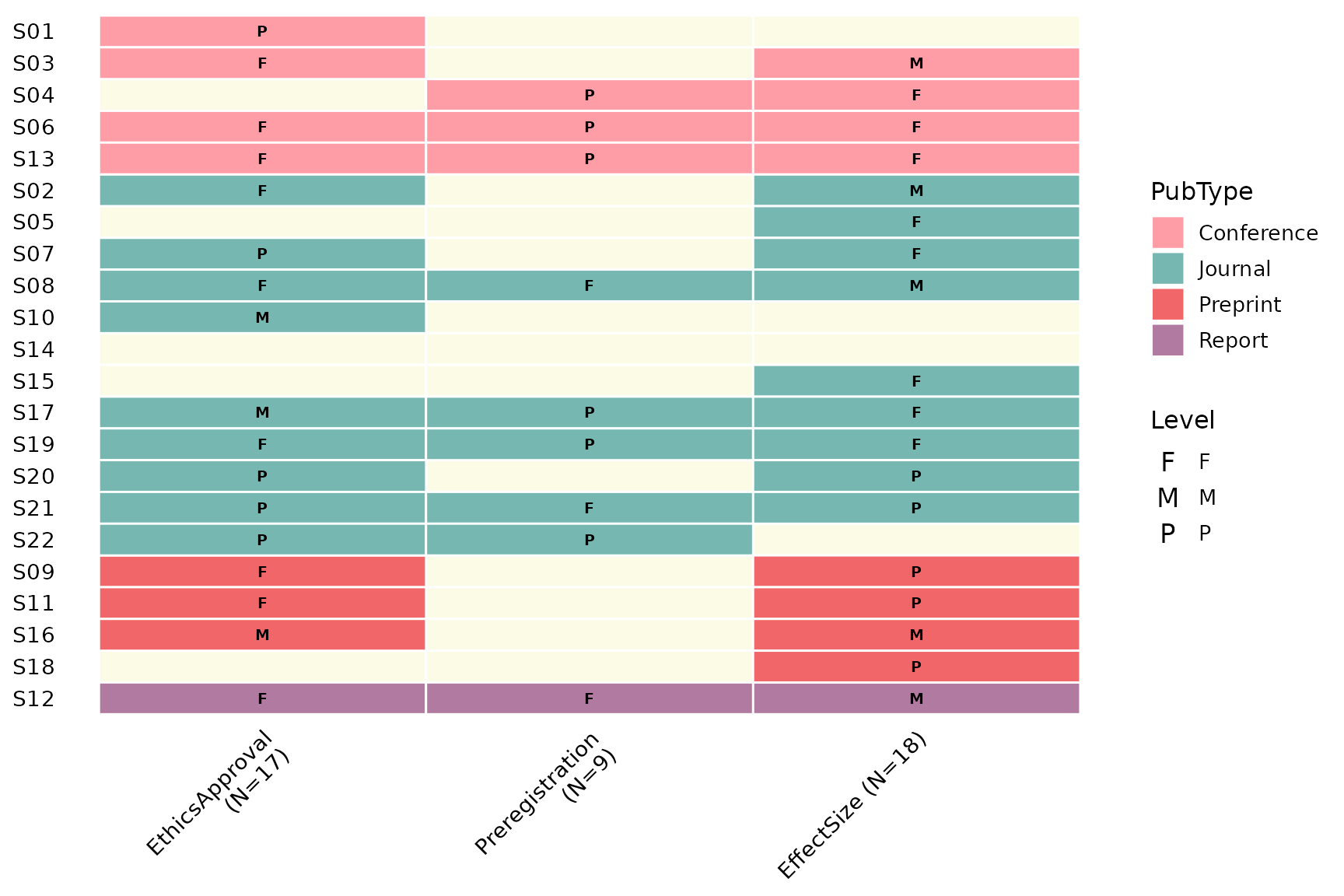

cols is a character vector naming the columns to place on the x-axis, in the order given. Pass a subset to focus on particular criteria:

reviewMatrix(sel, c("EthicsApproval", "Preregistration", "EffectSize"),
             color_by = "PubType")

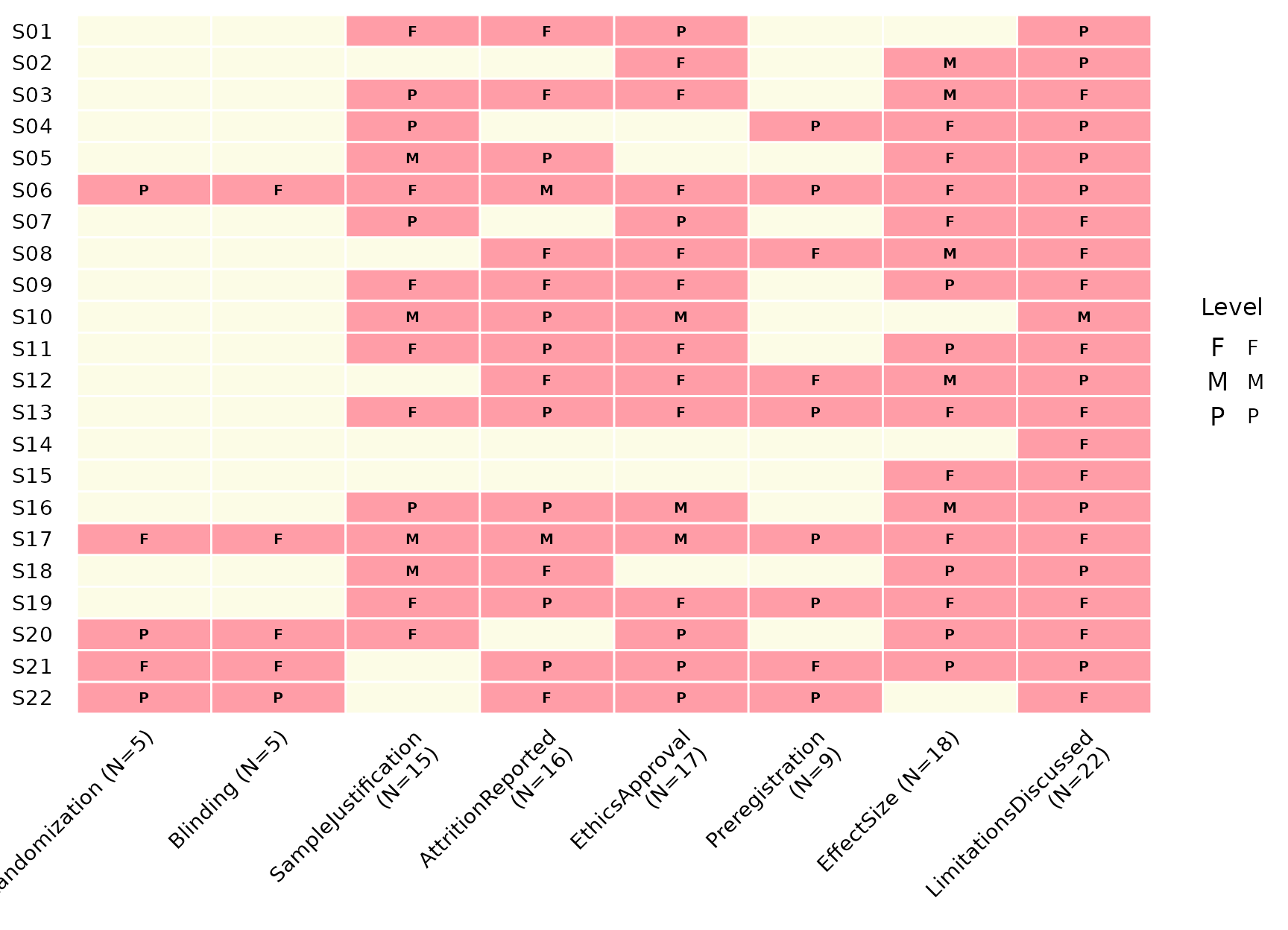

color_by: tile fill

color_by names a per-study column mapped to the tile fill, and the studies are grouped by it so each category clusters together. Omit it (the default NULL) to fill every tile with a single colour:

reviewMatrix(sel, criteria)

study_id: row labels

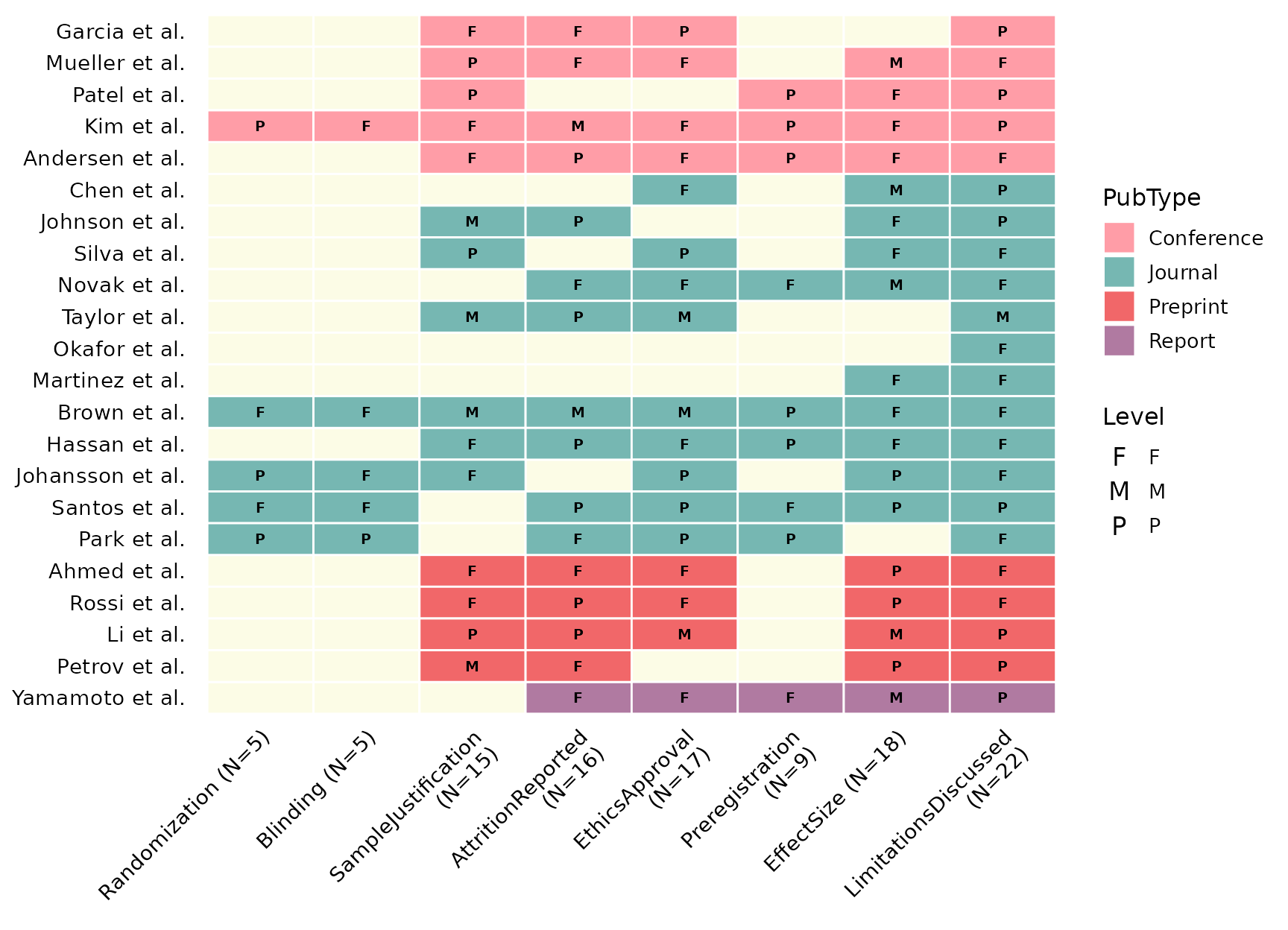

study_id selects the column shown on the y-axis (default StudyID). Label with the author instead:

reviewMatrix(sel, criteria, color_by = "PubType", study_id = Author)

levels: the Level legend

levels is a named vector mapping each cell code to a human-readable description. Its names also fix the legend order. Supply it to add a labelled Level legend:

reviewMatrix(sel, criteria, color_by = "PubType",
             levels = c(F = "Full", P = "Partial", M = "Mention"))

Leave it NULL and the legend falls back to the bare codes found in the data.

colors: fill palette

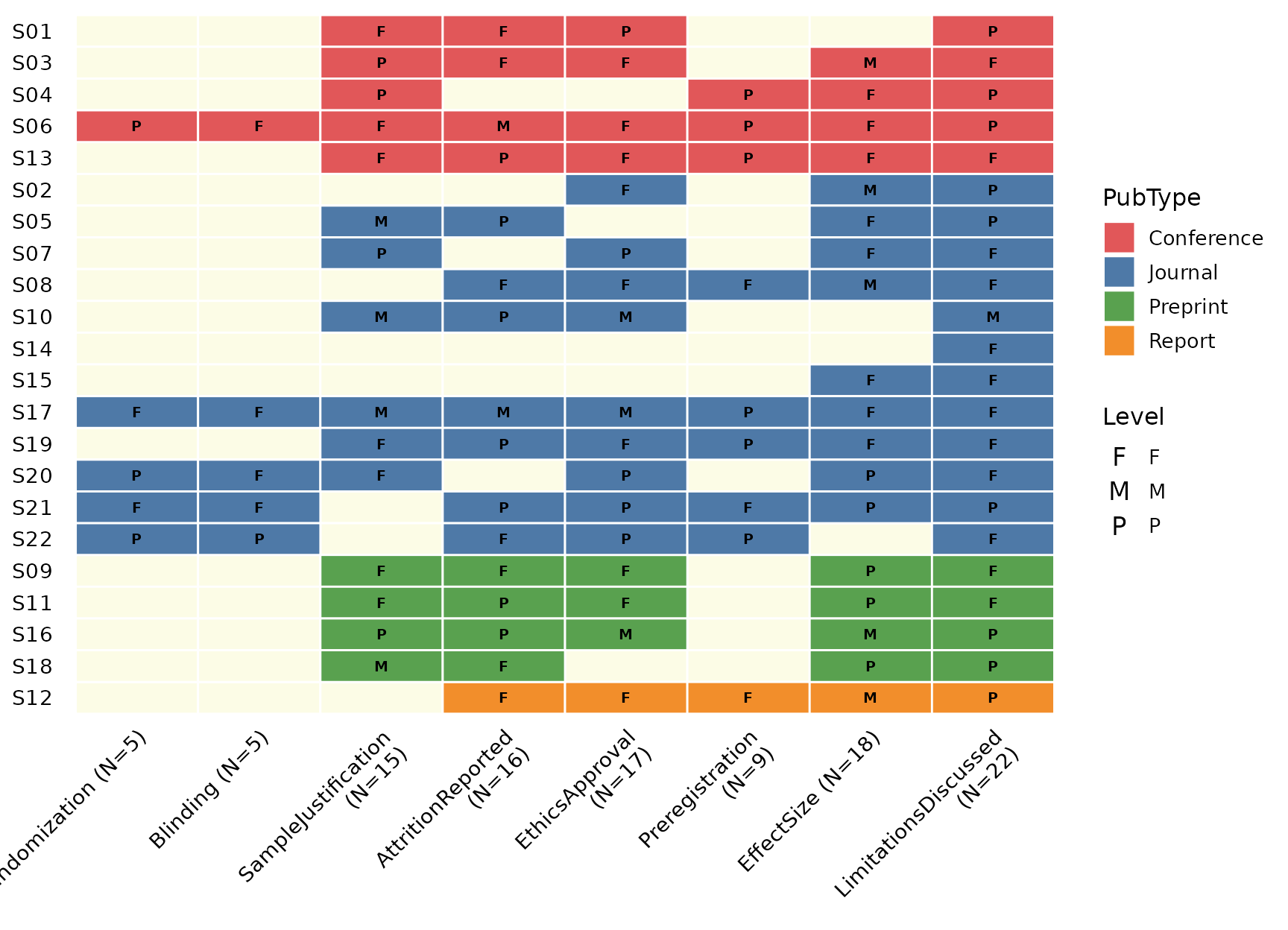

colors supplies the fill colours for the color_by categories (default PALETTE). A custom vector is matched to the categories in order:

reviewMatrix(sel, criteria, color_by = "PubType",
             colors = c("#e15759", "#4e79a7", "#59a14f", "#f28e2b"))

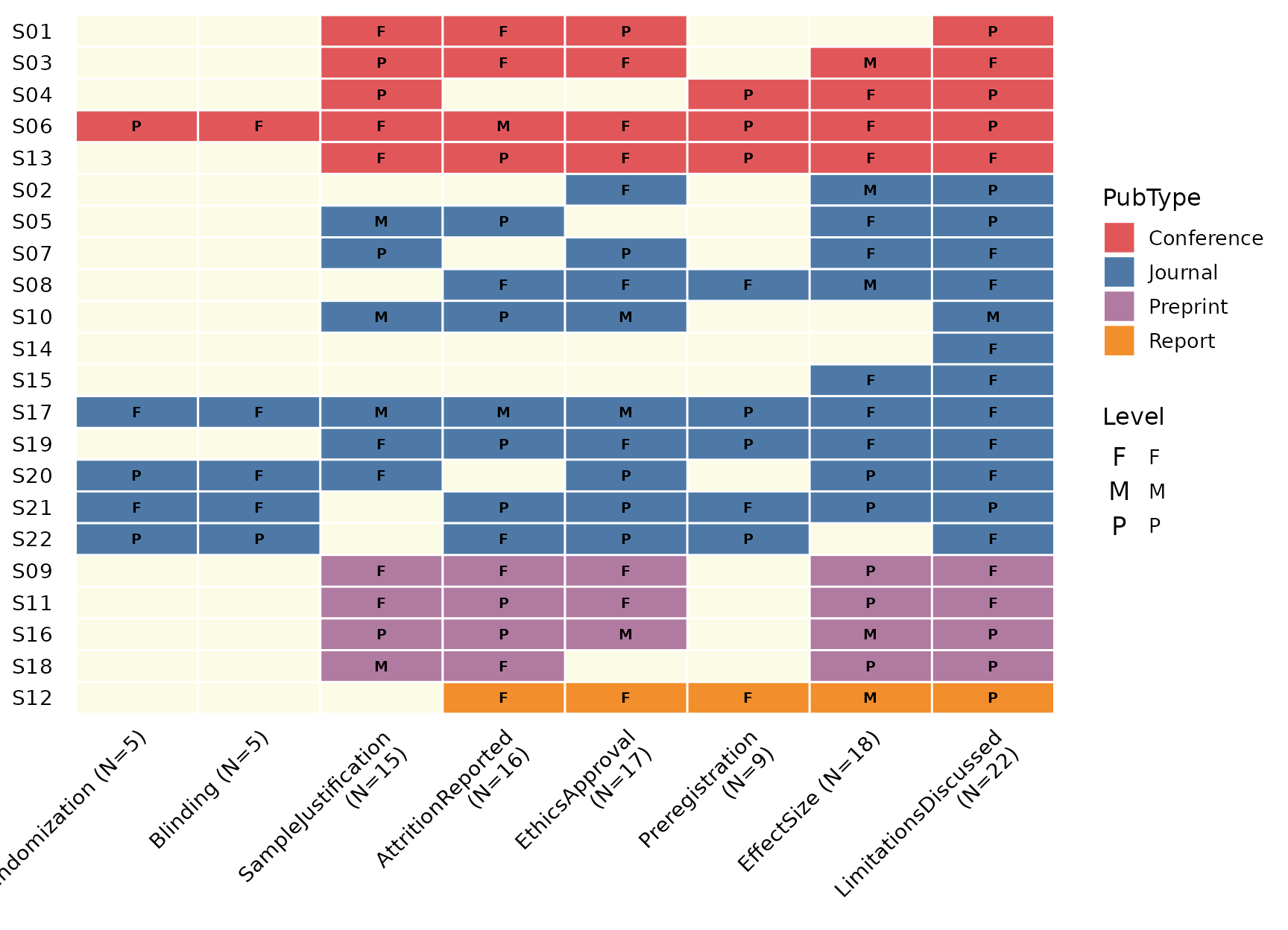

A named vector pins specific colours to specific categories:

reviewMatrix(sel, criteria, color_by = "PubType",
             colors = c(Journal = "#4e79a7", Conference = "#e15759",
                        Preprint = "#b07aa1", Report = "#f28e2b"))

show_counts: counts in headers

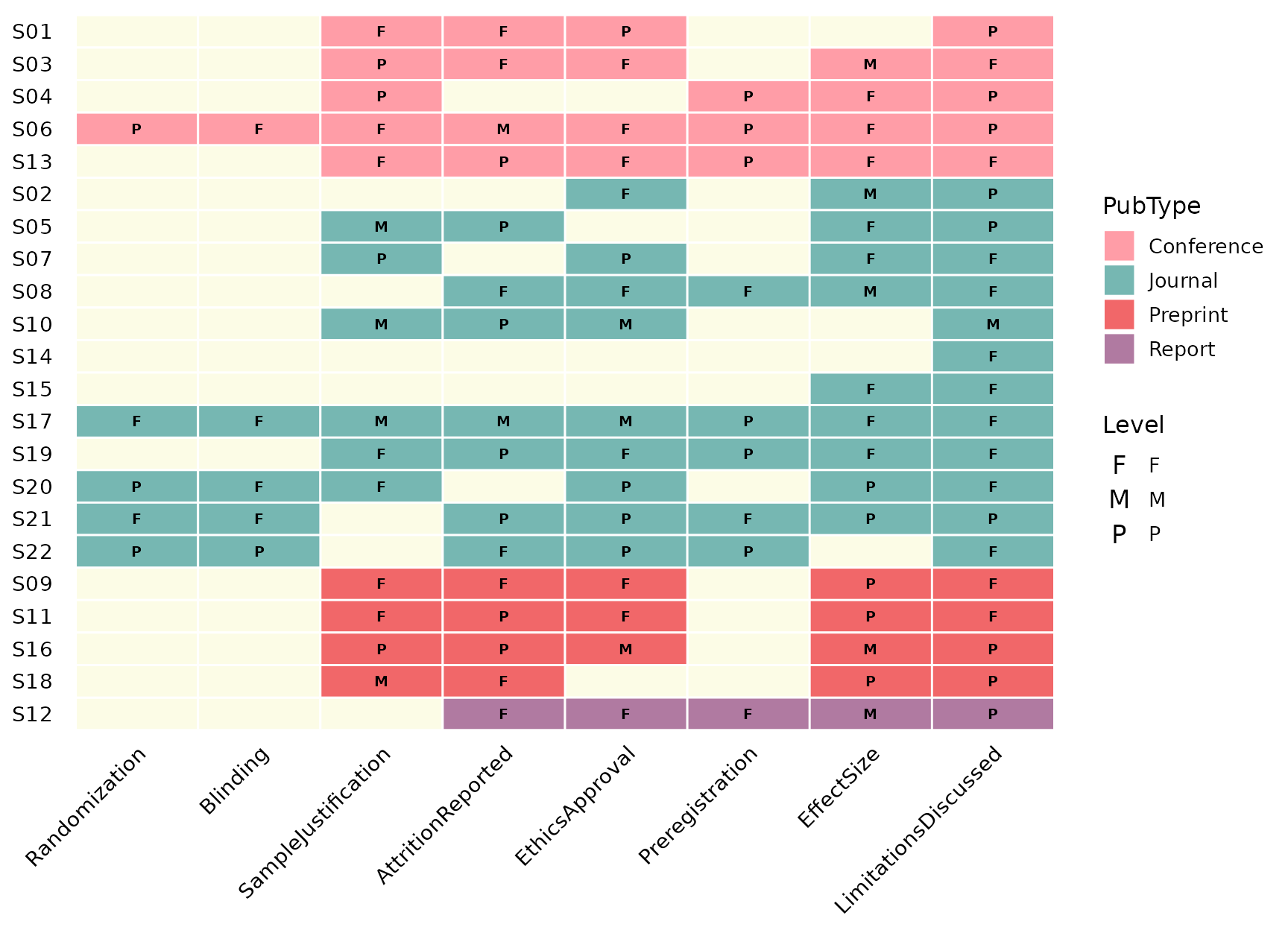

By default each column header gains " (N=k)", where k is the number of studies addressing that criterion. Turn it off for bare names:

reviewMatrix(sel, criteria, color_by = "PubType", show_counts = FALSE)

base_size: overall scaling

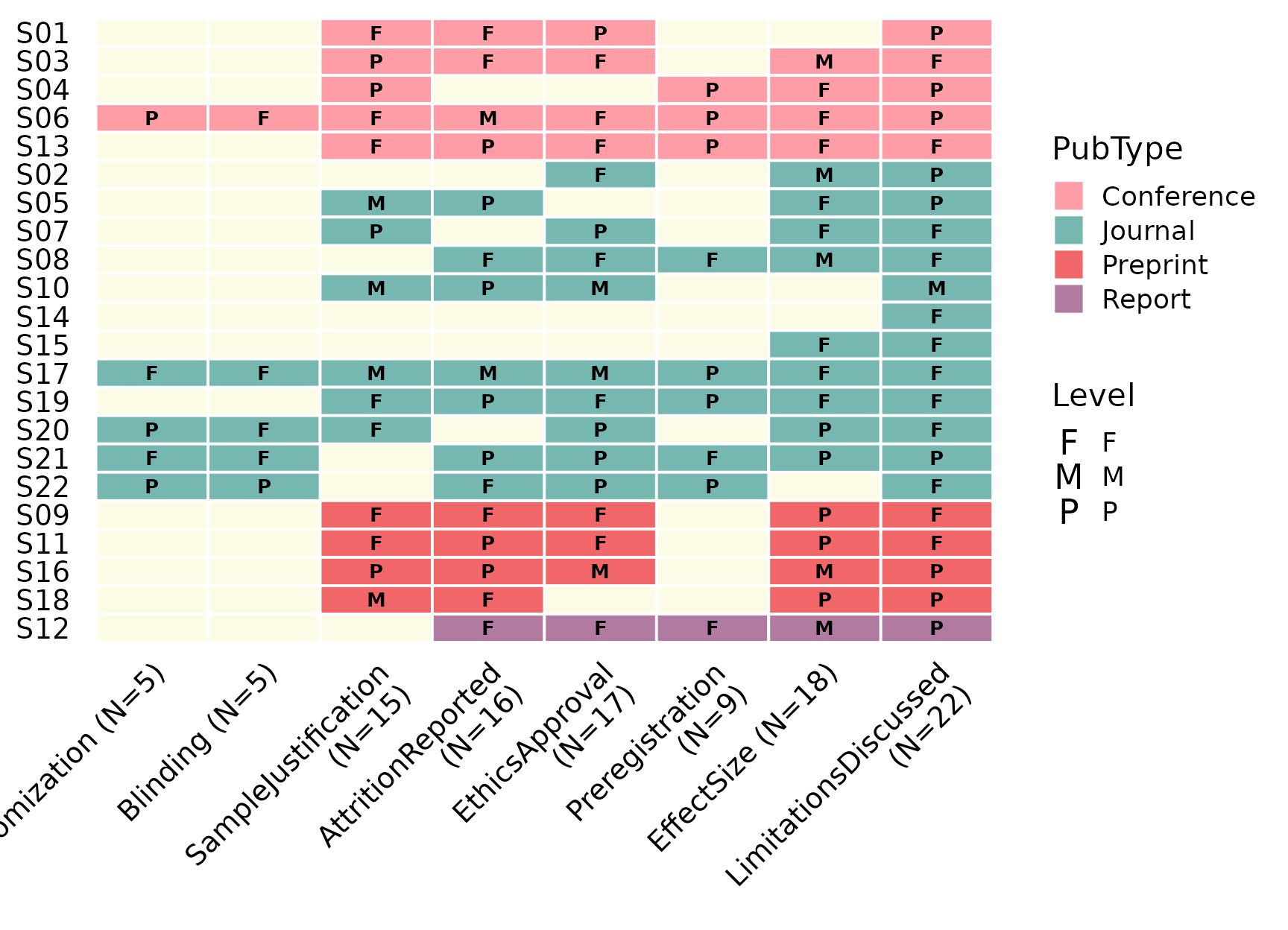

A single knob scales text and elements proportionally:

reviewMatrix(sel, criteria, color_by = "PubType", base_size = 16)

label_wrap: wrap long axis labels

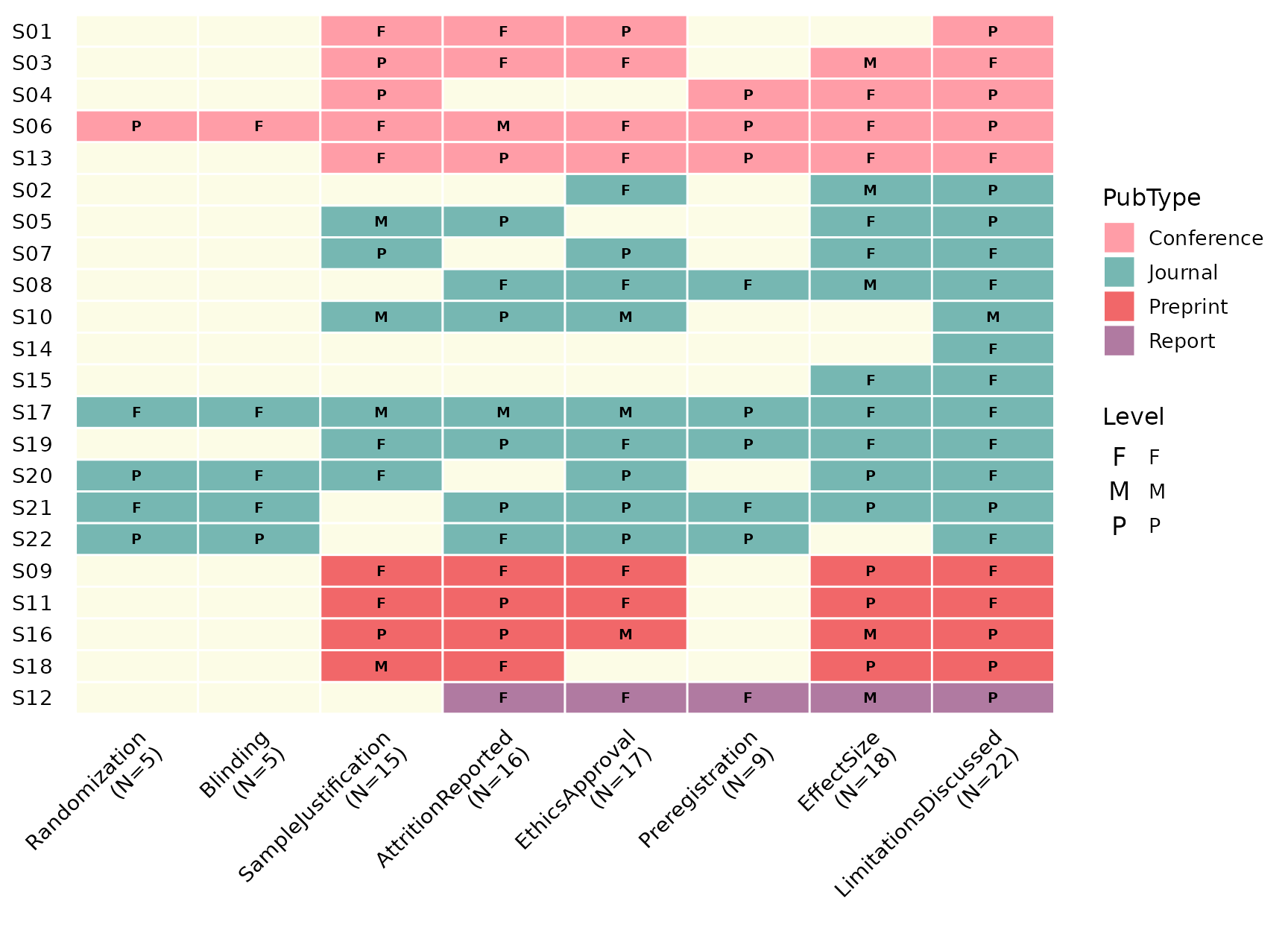

Long criterion or study labels wrap onto multiple lines once they exceed label_wrap characters (default 20). Lower it to wrap sooner:

reviewMatrix(sel, criteria, color_by = "PubType", label_wrap = 8)

empty_fill and tile_color

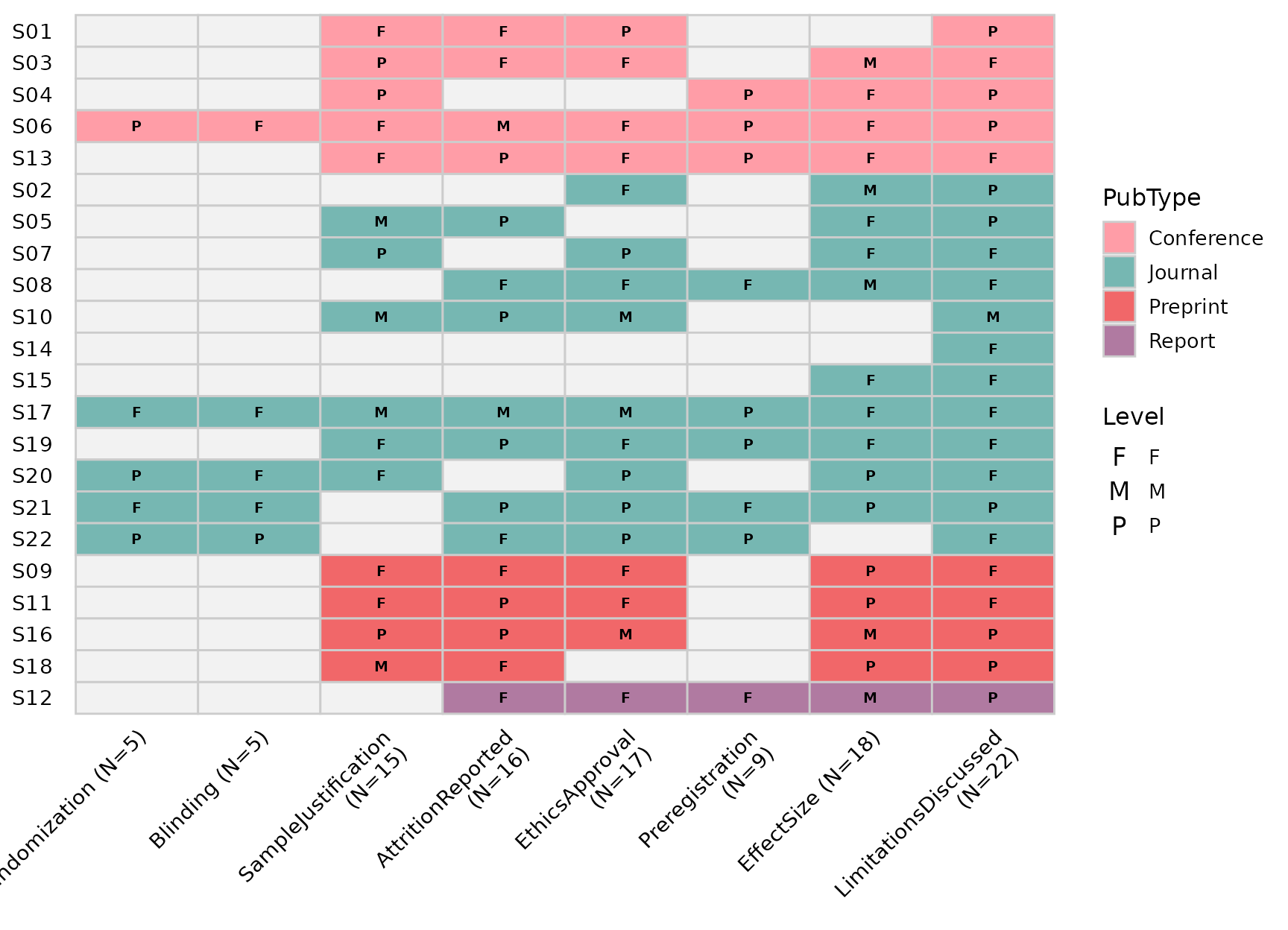

empty_fill is the colour of the background grid behind empty cells, and tile_color is the border drawn between every tile. Together they control how strongly the matrix grid reads:

reviewMatrix(sel, criteria, color_by = "PubType",
             empty_fill = "grey95", tile_color = "grey80")

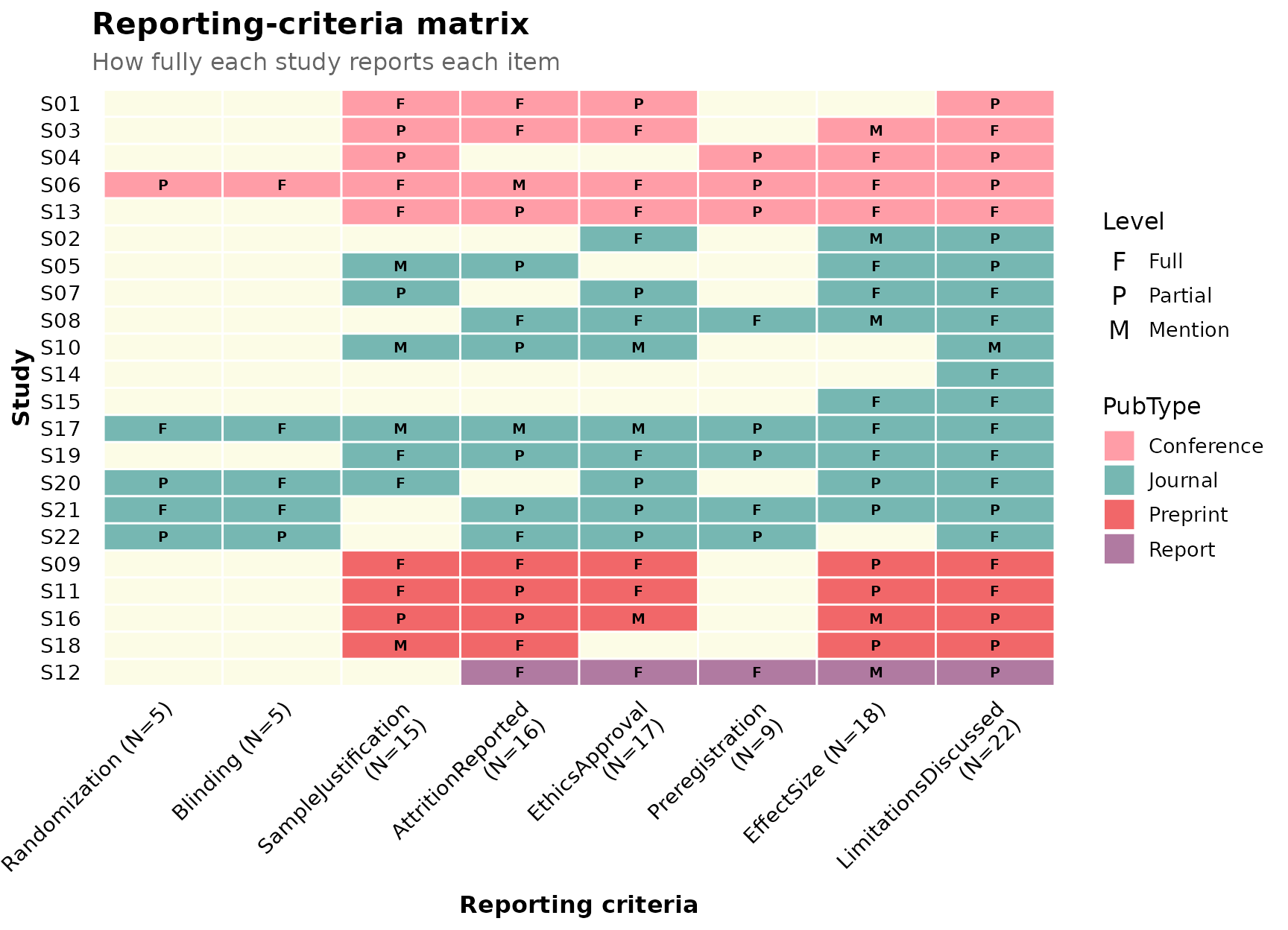

Composing with ggplot2

reviewMatrix() returns a plain ggplot, so you can keep adding layers and labels with +:

reviewMatrix(sel, criteria, color_by = "PubType",
             levels = c(F = "Full", P = "Partial", M = "Mention")) +
  labs(title = "Reporting-criteria matrix",
       subtitle = "How fully each study reports each item",
       x = "Reporting criteria", y = "Study")
