Create a Treemap — reviewTreemap • litReview

Displays category frequencies as nested rectangles whose area is proportional to the count. Optionally color by a second column for a hierarchical view. Requires the treemapify package.

Usage

reviewTreemap(
  data,
  col,
  color_by = NULL,
  sep = "\r\n",
  colors = PALETTE,
  base_size = 12,
  na.rm = TRUE,
  na_label = "Not reported",
  study_id = StudyID,
  studlabs = FALSE,
  border_col = "white"
)

Arguments

data: A data frame.
col: Column whose values define the rectangles (quoted or unquoted).
color_by: Optional second column (quoted or unquoted) used to fill the rectangles. When supplied the treemap is grouped hierarchically by color_by, with col nested inside. When NULL (default), rectangles are colored by col itself.
sep: Character. Separator for multi-value cells. Defaults to "\r\n".
colors: Character vector. Fill colors, cycled or matched by name. Defaults to PALETTE.
base_size: Numeric. Base font size in points. Defaults to 12.
na.rm: Logical. Drop missing values? Defaults to TRUE.
na_label: Character. Label for missing values when na.rm = FALSE. Defaults to "Not reported".
study_id: Column containing study identifiers (quoted or unquoted). Defaults to StudyID.
studlabs: Logical. If TRUE, show study IDs inside each rectangle. Defaults to FALSE.
border_col: Character. Color of rectangle borders. Defaults to "white".

Value

A ggplot2::ggplot object.

Examples

if (FALSE) { # \dontrun{
df <- data.frame(
  StudyID = paste0("S", 1:8),
  Design  = c("RCT", "Cohort", "RCT", "RCT", "Cohort", "RCT", "Cohort", "RCT"),
  Quality = c("High", "Low", "High", "Low", "Low", "High", "Low", "High"),
  stringsAsFactors = FALSE
)
reviewTreemap(df, Design)

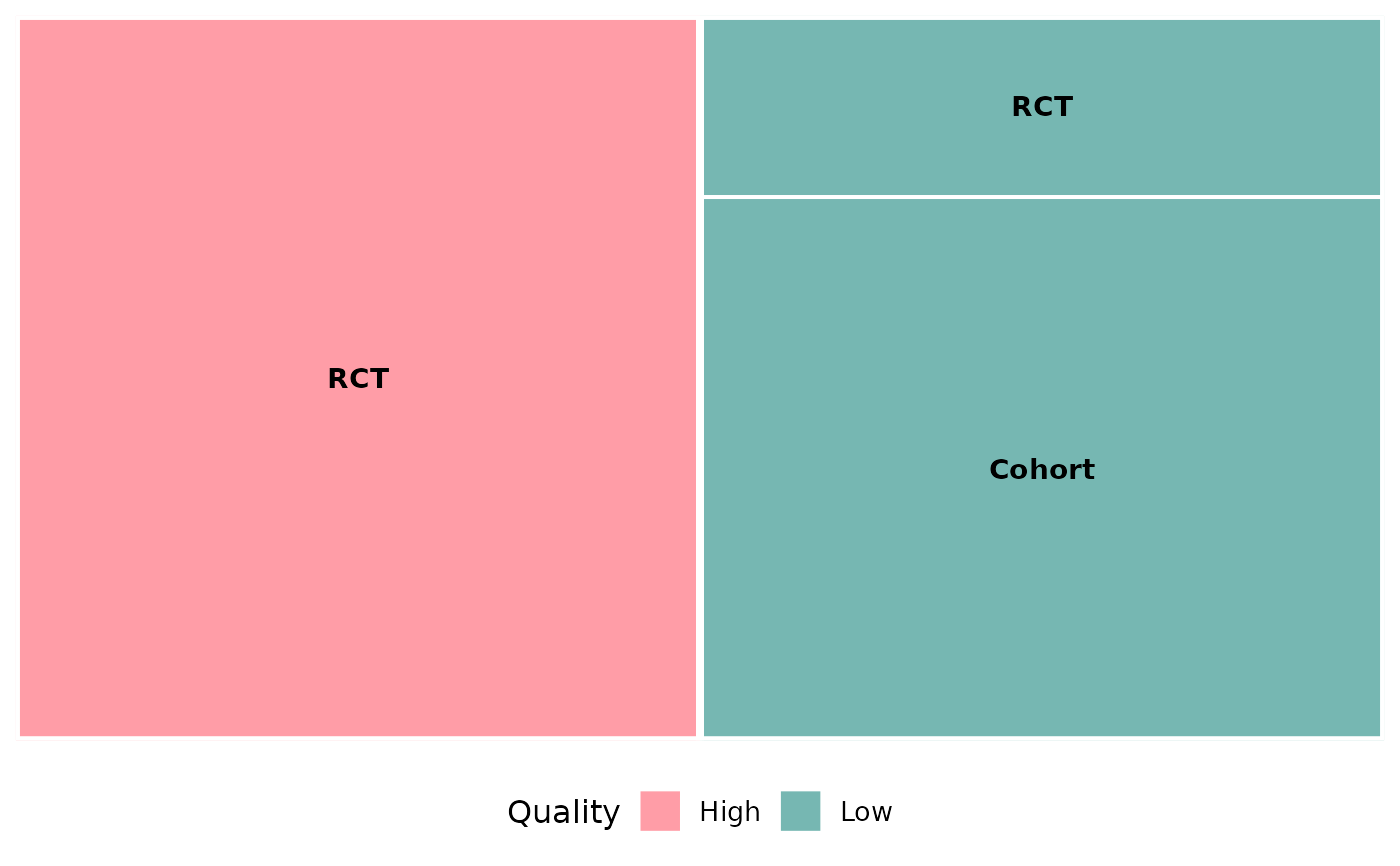

reviewTreemap(df, Design, color_by = Quality)
} # }
